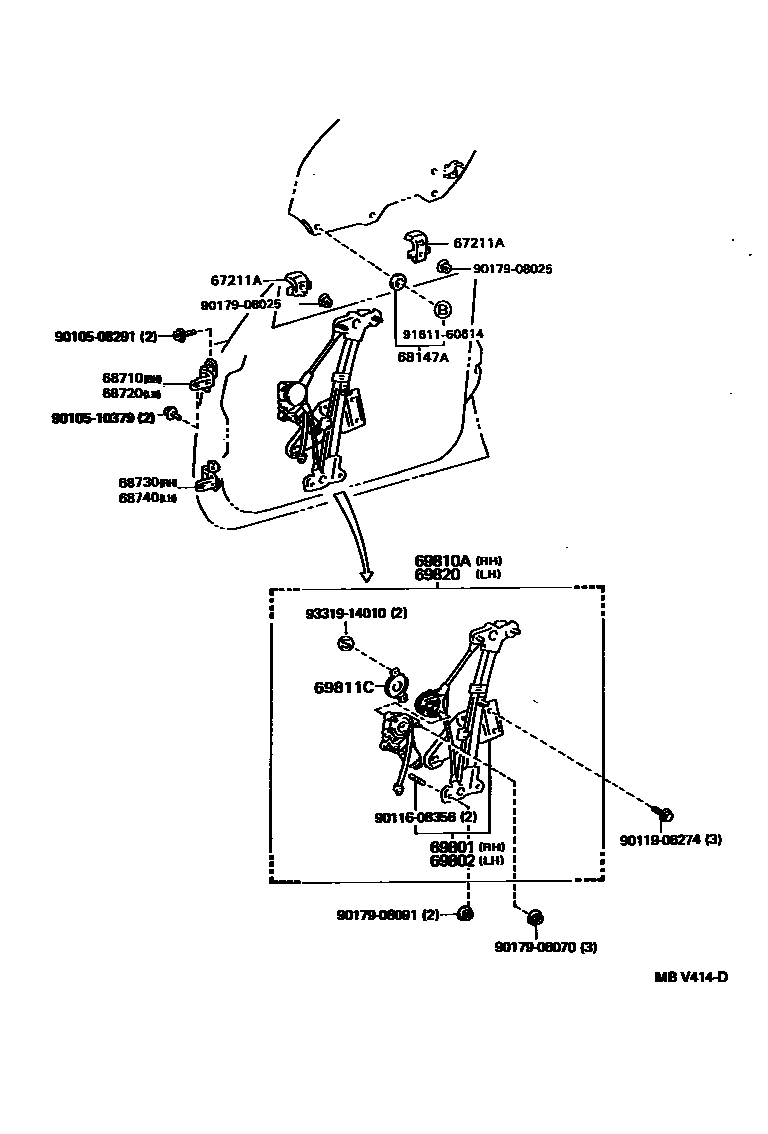

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-32051iVCV10199203-199412

REAR

sub67211-32052

main67211-32052iVCV10199412-199608

REAR

main67211-32071iVCV10199203-199608

FRONT

68147ASTOP, FRONT DOOR GLASS, UPPER

main67205-32010iVCV10199203-199608

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32050iVCV10199203-199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32050iVCV10199203-199608

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32030iVCV10199203-199608

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-32030iVCV10199203-199608

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-32070iVCV10199203-199608

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-32070iVCV10199203-199608

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-32120iVCV10199203-199608

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32050iVCV10199203-199608

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-32120iVCV10199203-199608

9010508291

main90105-08291

9010510379

main90105-10379

9011608356

main90116-08356

9011906274

main90119-06274

9017906070

main90179-06070

9017908025

main90179-08025

9017908091

main90179-08091

9161160614

main91611-60614

9331914010

main93319-14010

20 parts on this diagram · 1 diagram in section
