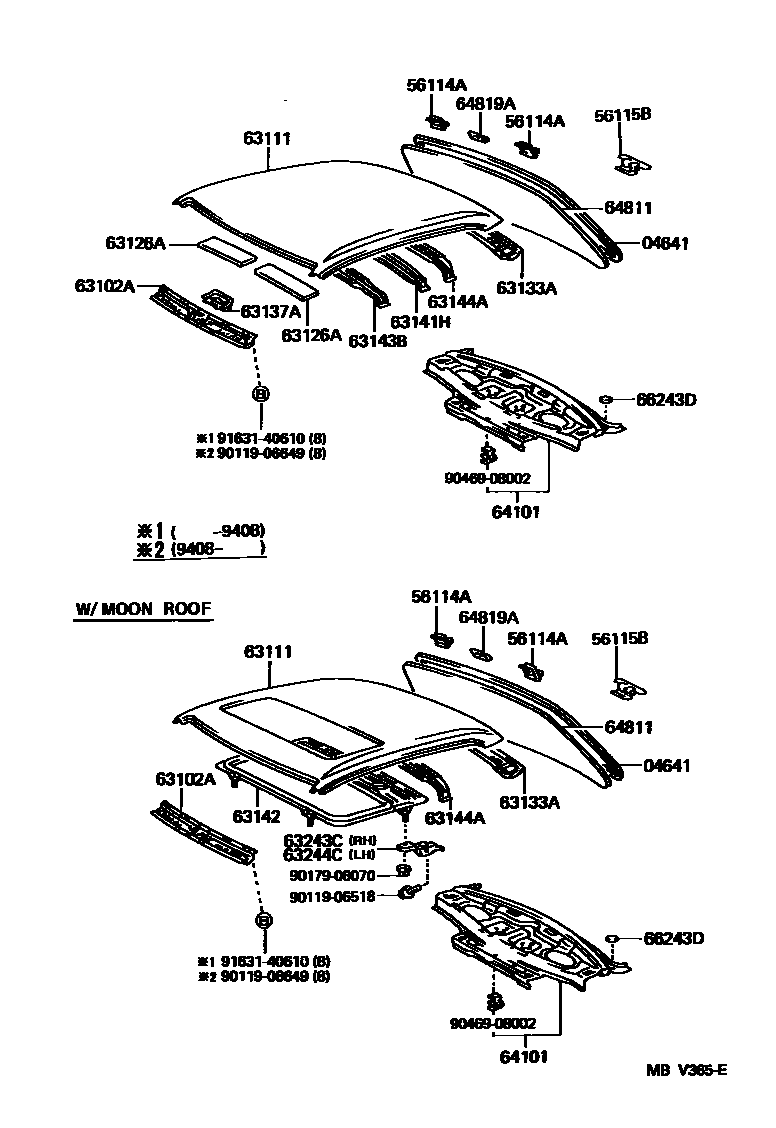

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iVCV10199203-199608

56114ARETAINER, BACK WINDOW GLASS

main56114-20010×2iVCV10199203-199608

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-20060iVCV10199203-199408

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33040iVCV10199203-199608

63111PANEL, ROOF

main63111-33070iVCV10199203-199608

main63111-33080iVCV10199203-199608

W(*MR)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010×2iVCV10199407-199608

main63126-32020×2iVCV10199203-199407

63133AFRAME, BACK WINDOW, UPPER

main63133-33020iVCV10199203-199608

63137ABRACKET, DOME LAMP, NO.1

main63137-33010iVCV10199203-199608

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-33020iVCV10199203-199608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33900iVCV10199203-199608

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33020iVCV10199203-199608

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33020iVCV10199203-199608

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33040iVCV10199203-199608

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63244-33040iVCV10199203-199608

64101PANEL SUB-ASSY, UPPER BACK

main64101-33050iVCV10199203-199608

64811GLASS, BACK WINDOW

main64811-33070iVCV10199203-199408

*EHTT,T=3.5,BRONZE

main64811-33080iVCV10199203-199408

*EHTT,T=3.5,GRAY

main64811-33170iVCV10199408-199608

*EHTT,T=3.5,BRONZE

main64811-33180iVCV10199408-199608

*EHTT,T=3.5,GRAY

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-33010iVCV10199203-199608

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2iVCV10199203-199608

9011906518

main90119-06518

9011906649

main90119-06649

9017906070

main90179-06070

9046908002

main90469-08002

9163140610

main91631-40610

23 parts on this diagram · 2 diagrams in section
