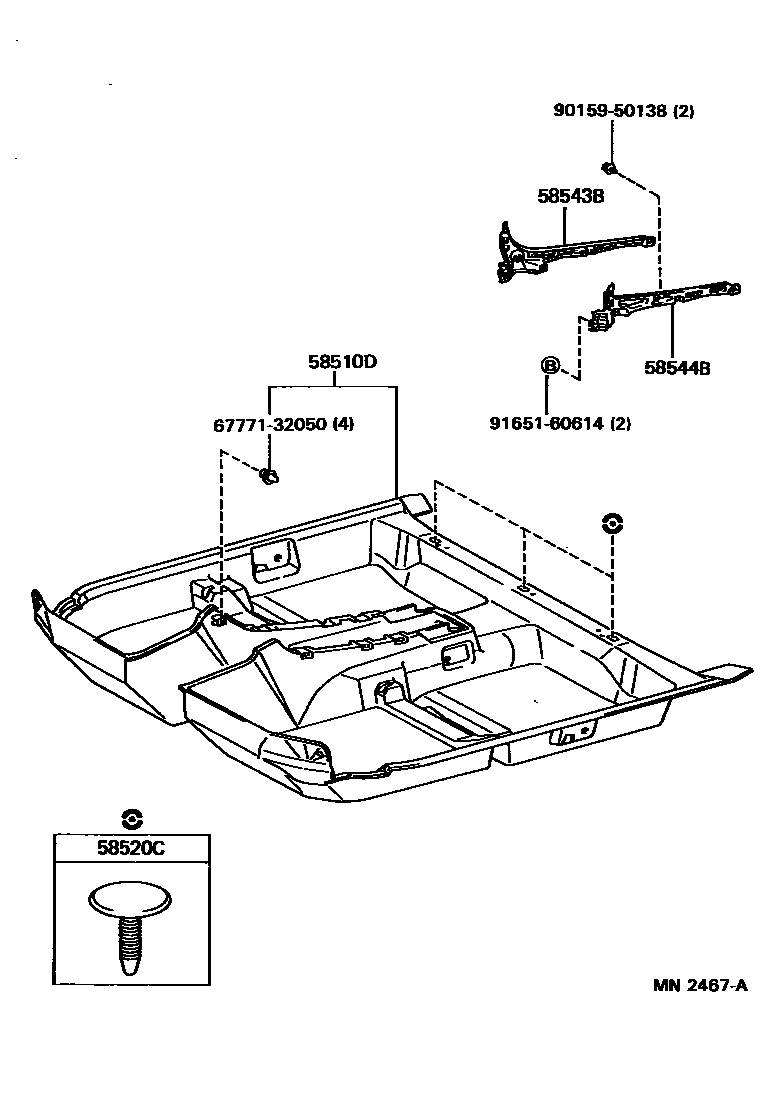

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-33101-A0iVCV10199203-199212

IVORY,TRIM0#

main58510-33101-C0iVCV10199203-199212

BLACK,TRIM2#

main58510-33101-K0iVCV10199203-199212

TAUPE,TRIM9#

main58510-33102-A0iVCV10199212-199308

IVORY,TRIM0#

main58510-33102-C0iVCV10199212-199308

BLACK,TRIM2#

main58510-33102-K0iVCV10199212-199308

MEDIUM TAUPE,TRIM9#

main58510-33130-C0iVCV10199308-199408

BLACK,TRIM2#

main58510-33130-E0iVCV10199308-199408

MEDIUM OAK,TRIM4#

main58510-33130-K0iVCV10199308-199408

TAUPE,TRIM9#

main58510-33260-E0iVCV10199408-199510

OAK,TRIM4#

sub58510-33130

main58510-33260-K0iVCV10199408-199510

TAUPE,TRIM9#

sub58510-33130

main58510-33261-E0iVCV10199510-199608

OAK,TRIM4#

sub58510-33130

sub58510-33261

main58510-33261-K0iVCV10199510-199512

MEDIUM TAUPE,TRIM9#

sub58510-33130

sub58510-33261

main58510-33261-K1iVCV10199512-199608

TAUPE,TRIM9#

sub58510-33130

sub58510-33261

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01iVCV10199203-199308

BLACK,TRIM0#,2#,9#

sub90467-06016

sub90467-07049

main90467-06166-C0iVCV10199308-199408

BLACK,TRIM2#,4#,9#

main90467-06166-C0iVCV10199408-199608

BLACK,TRIM4#,9#

58543BBRACKET, FLOOR CARPET, RH

main58543-33030iVCV10199203-199210

sub58543-33031

main58543-33031iVCV10199210-199608

58544BBRACKET, FLOOR CARPET, LH

main58544-33030iVCV10199203-199210

sub58544-33031

main58544-33031iVCV10199210-199608

6777132050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32050

9015950138

main90159-50138

9165160614

main91651-60614

7 parts on this diagram · 1 diagram in section
