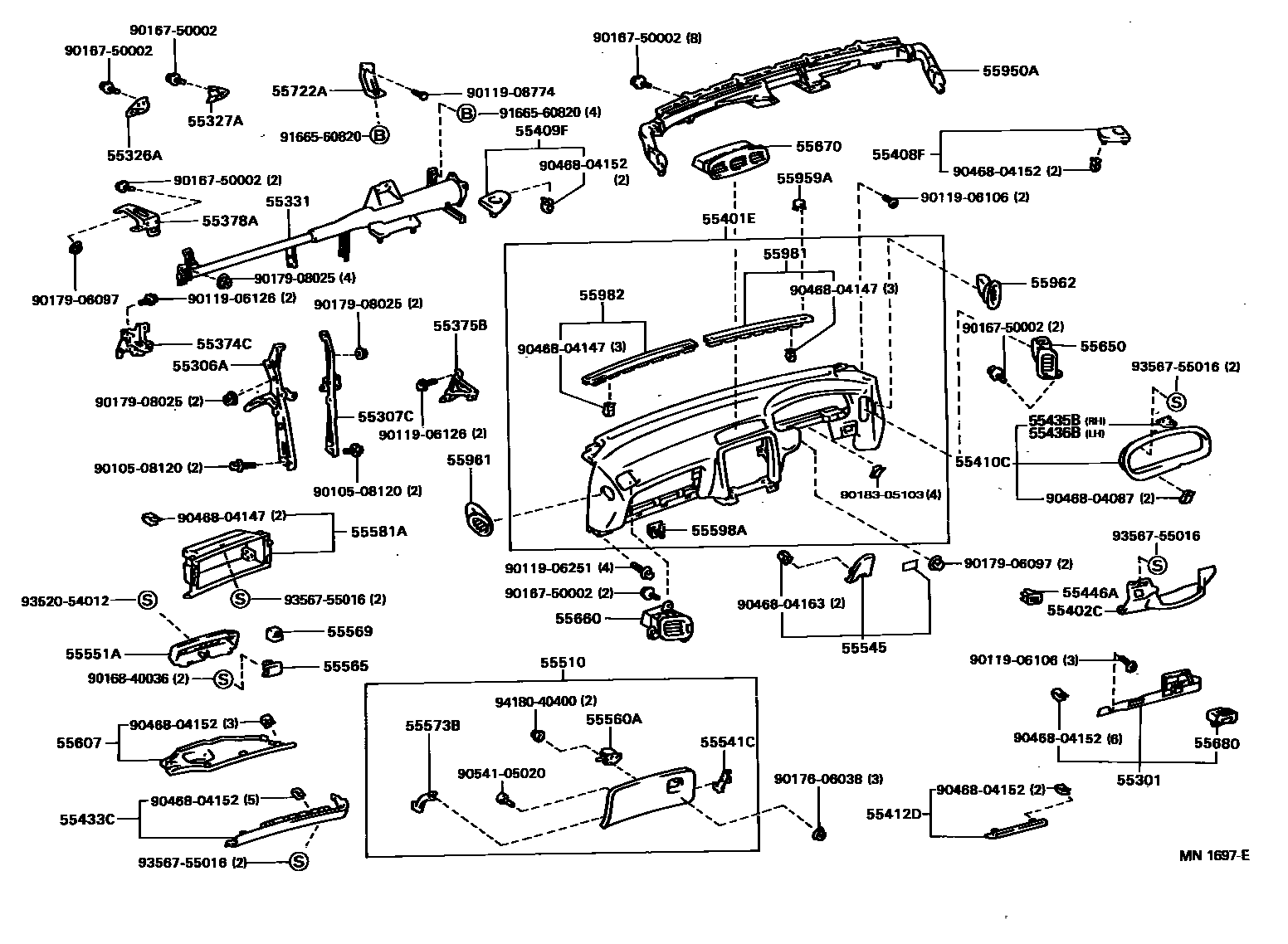

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55301PANEL SUB-ASSY, INSTRUMENT

main55045-33020-C1iVCV10199308-199408

BLACK,TRIM2#

main55045-33020-E1iVCV10199308-199408

OAK,TRIM4#

main55045-33020-K1iVCV10199308-199408

TAUPE,TRIM9#

main55045-33021-E3iVCV10199408-199608

OAK,TRIM4#

main55045-33021-K3iVCV10199408-199608

MD.TAUPE,TRIM9#

main55301-33020-A0iVCV10199203-199308

IVORY,TRIM0#

main55301-33020-C0iVCV10199203-199308

BLACK,TRIM2#

main55301-33020-K0iVCV10199203-199308

MEDIUM TAUPE,TRIM9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33040iVCV10¥4,020199203-199608

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33040iVCV10¥2,960199203-199608

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-33020iVCV10¥260199203-199608

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-33010iVCV10¥260199203-199608

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33060iVCV10¥20,500199203-199308

main55330-33110iVCV10¥21,700199308-199608

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-33040iVCV10¥1,190199203-199608

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-33040iVCV10¥1,080199203-199608

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55308-33020iVCV10¥1,020199203-199308

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33060-C0iVCV10199203-199308

BLACK,TRIM2#

sub55401-33060¥73,400

main55401-33060-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55401-33060¥73,400

main55401-33060-K0iVCV10199203-199308

TAUPE,TRIM9#

sub55401-33060¥73,400

main55401-33090-C0iVCV10199308-199408

BLACK,TRIM2#

main55401-33090-E1iVCV10199308-199608

OAK,TRIM4#

main55401-33090-K0iVCV10199308-199608

TAUPE,TRIM9#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-33010-C0iVCV10199203-199408

BLACK,TRIM2#

main55402-33010-E0iVCV10199203-199308

GREIGE,TRIM0#

main55402-33010-E1iVCV10199308-199608

OAK,TRIM4#

main55402-33010-K0iVCV10199203-199608

TAUPE,TRIM9#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-33010-01iVCV10199203-199408

BLACK,TRIM2#

sub55408-33010¥2,290

main55408-33010-02iVCV10199203-199408

TAUPE,TRIM9#

sub55408-33010¥2,290

main55408-33010-05iVCV10199203-199308

GREIGE,TRIM0#

sub55408-33010¥2,290

main55408-33010-E0iVCV10199308-199608

OAK,TRIM4#

sub55408-33010¥2,290

main55408-33010-K0iVCV10199408-199608

TAUPE,TRIM9#

sub55408-33010¥2,290

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-33010-01iVCV10199203-199408

BLACK,TRIM2#

sub55409-33010¥2,290

main55409-33010-02iVCV10199203-199408

TAUPE,TRIM9#

sub55409-33010¥2,290

main55409-33010-05iVCV10199203-199308

GREIGE,TRIM0#

sub55409-33010¥2,290

main55409-33010-E0iVCV10199308-199608

OAK,TRIM4#

sub55409-33010¥2,290

main55409-33010-K0iVCV10199408-199608

TAUPE,TRIM9#

sub55409-33010¥2,290

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55404-33060iVCV10¥8,600199203-199608

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-33070iVCV10¥990199203-199608

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55302-33020-A0iVCV10199203-199308

IVORY,TRIM0#

main55302-33020-C0iVCV10199203-199308

BLACK,TRIM2#

main55302-33020-K0iVCV10199203-199308

MEDIUM TAUPE,TRIM9#

main55312-33050-C1iVCV10199308-199408

BLACK,TRIM2#

main55312-33050-E1iVCV10199308-199408

OAK,TRIM4#

main55312-33050-K1iVCV10199308-199408

TAUPE,TRIM9#

main55312-33051-E1iVCV10199408-199608

OAK,TRIM4#

main55312-33051-K1iVCV10199408-199608

MD.TAUPE,TRIM9#

55435BCLUSTER, METER HOOD, NO.1

main55435-33020iVCV10¥210199203-199608

55436BCLUSTER, METER HOOD, NO.2

main55436-33030iVCV10¥210199203-199608

55446ABASE, SWITCH HOLE, NO.1

main55446-33020-C0iVCV10199203-199408

BLACK,TRIM2#

sub55446-33020¥520

main55446-33020-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55446-33020¥520

main55446-33020-E1iVCV10199308-199608

OAK,TRIM4#

sub55446-33020¥520

main55446-33020-K0iVCV10199203-199608

TAUPE,TRIM9#

sub55446-33020¥520

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-33040-C0iVCV10199203-199308

BLACK,TRIM2#

main55550-33040-E0iVCV10199203-199308

GREIGE,TRIM0#

main55550-33040-K0iVCV10199203-199308

TAUPE,TRIM9#

main55550-33070-C0iVCV10199308-199408

BLACK,TRIM2#

main55550-33070-E1iVCV10199308-199608

OAK,TRIM4#

main55550-33070-K0iVCV10199308-199608

TAUPE,TRIM9#

55541CARM, GLOVE COMPARTMENT HINGE, RH

main55541-33030iVCV10¥320199203-199308

main55541-33040iVCV10¥270199308-199608

55545COVER, FUSE BOX OPENING

main55540-33020-C0iVCV10199203-199308

BLACK,TRIM2#

sub55540-33020¥2,490

main55540-33020-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55540-33020¥2,490

main55540-33020-K0iVCV10199203-199308

TAUPE,TRIM9#

sub55540-33020¥2,490

main55540-33021-C0iVCV10199308-199408

BLACK,TRIM2#

sub55540-33021¥2,490

main55540-33021-E1iVCV10199308-199408

OAK,TRIM4#

sub55540-33021¥2,490

main55540-33021-K0iVCV10199308-199408

TAUPE,TRIM9#

sub55540-33021¥2,490

main55540-33022-E1iVCV10199408-199608

OAK,TRIM4#

sub55540-33022¥2,490

main55540-33022-K0iVCV10199408-199608

TAUPE,TRIM9#

sub55540-33022¥2,490

55551ADOOR, GLOVE COMPARTMENT, OUTER

main55551-33020iVCV10¥2,210199203-199308

main55551-33050iVCV10¥1,020199308-199608

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-30010iVCV10¥2,640199203-199308

main55560-33040iVCV10¥2,210199308-199608

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-01iVCV10199203-199408

BLACK,TRIM2#

sub55565-50010¥520

main55565-50010-05iVCV10199203-199308

GREIGE,TRIM0#

sub55565-50010¥520

main55565-50010-12iVCV10199203-199408

TAUPE,TRIM9#

sub55565-50010¥520

main55565-50010-E0iVCV10199308-199608

OAK,TRIM4#

sub55565-50010¥520

main55565-50010-K0iVCV10199408-199608

TUAPE,TRIM9#

sub55565-50010¥520

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-01iVCV10199203-199408

BLACK,TRIM2#

sub55569-50010¥440

main55569-50010-05iVCV10199203-199308

GREIGE,TRIM0#

sub55569-50010¥440

main55569-50010-12iVCV10199203-199408

TAUPE,TRIM9#

sub55569-50010¥440

main55569-50010-E0iVCV10199308-199608

OAK,TRIM4#

sub55569-50010¥440

main55569-50010-K0iVCV10199408-199608

TUAPE,TRIM9#

sub55569-50010¥440

55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH

main55542-33030iVCV10¥320199203-199308

main55542-33040iVCV10¥270199308-199608

55581ACOMPARTMENT, GLOVE

main55506-33020iVCV10¥13,200199308-199608

main55581-33050iVCV10¥10,200199203-199308

55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE

main55598-33020iVCV10¥350199203-199608

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-33020iVCV10¥4,320199203-199608

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-33040-C0iVCV10199203-199308

BLACK,TRIM2#

sub55650-33041¥6,700

main55650-33040-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55650-33041¥6,700

main55650-33040-K0iVCV10199203-199308

TAUPE,TRIM9#

sub55650-33041¥6,700

main55650-33041-C0iVCV10199308-199408

BLACK,TRIM2#

sub55650-33041¥6,700

main55650-33041-E1iVCV10199308-199608

OAK,TRIM4#

sub55650-33041¥6,700

main55650-33041-K0iVCV10199308-199608

TAUPE,TRIM9#

sub55650-33041¥6,700

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-33060-C0iVCV10199203-199308

BLACK,TRIM2#

sub55660-33060¥6,700

main55660-33060-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55660-33060¥6,700

main55660-33060-K0iVCV10199203-199308

TAUPE,TRIM9#

sub55660-33060¥6,700

main55660-33070-C0iVCV10199308-199408

BLACK,TRIM2#

sub55660-33070¥8,200

main55660-33070-E1iVCV10199308-199608

OAK,TRIM4#

sub55660-33070¥8,200

main55660-33070-K0iVCV10199308-199608

TAUPE,TRIM9#

sub55660-33070¥8,200

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-33040-C0iVCV10199203-199408

BLACK,TRIM2#

sub55670-33040¥8,200

main55670-33040-E0iVCV10199203-199308

GREIGE,TRIM0#

sub55670-33040¥8,200

main55670-33040-E1iVCV10199308-199608

OAK,TRIM4#

sub55670-33040¥8,200

main55670-33040-K0iVCV10199203-199608

TAUPE,TRIM9#

sub55670-33040¥8,200

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-33020-01iVCV10199203-199308

BLACK,TRIM2#

sub55680-33020¥2,080

main55680-33020-01iVCV10199308-199408

BLACK,TRIM2#,4#,9#

sub55680-33020¥2,080

main55680-33020-02iVCV10199203-199308

MEDIUM TAUPE,TRIM9#

sub55680-33020¥2,080

main55680-33020-08iVCV10199203-199308

IVORY,TRIM0#

sub55680-33020¥2,080

main55680-33020-22iVCV10199408-199608

BLACK,TRIM4#,9#

sub55680-33020¥2,080

55722ABRACE, COWL TOP TO COWL, INNER NO.2

main55722-33010iVCV10¥790199203-199608

55950ANOZZLE ASSY, DEFROSTER

main55950-33040iVCV10¥6,300199203-199608

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-33010iVCV10¥130199203-199608

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-33030-01iVCV10199203-199408

BLACK,TRIM2#

sub55961-33030¥860

main55961-33030-02iVCV10199203-199408

TAUPE,TRIM9#

sub55961-33030¥860

main55961-33030-05iVCV10199203-199308

GREIGE,TRIM0#

sub55961-33030¥860

main55961-33030-E0iVCV10199308-199608

OAK,TRIM4#

sub55961-33030¥860

main55961-33030-K0iVCV10199408-199608

TAUPE,TRIM9#

sub55961-33030¥860

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-33030-01iVCV10199203-199408

BLACK,TRIM2#

sub55962-33030¥860

main55962-33030-02iVCV10199203-199408

TAUPE,TRIM9#

sub55962-33030¥860

main55962-33030-05iVCV10199203-199308

GREIGE,TRIM0#

sub55962-33030¥860

main55962-33030-E0iVCV10199308-199608

OAK,TRIM4#

sub55962-33030¥860

main55962-33030-K0iVCV10199408-199608

TAUPE,TRIM9#

sub55962-33030¥860

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33040iVCV10¥2,360199203-199608

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-33040iVCV10¥2,360199203-199608

9010508120

main90105-08120¥90

9011906106

main90119-06106¥70

9011906126

main90119-06126¥70

9011906251

main90119-06251¥160

9011908774

main90119-08774¥160

9016750002

main90167-50002¥120

9016840036

main90168-40036¥70

9017606038

main90176-06038¥90

9017906097

main90179-06097¥320

9017908025

main90179-08025¥80

9018305103

main90183-05103¥90

9046804087

main90468-04087¥160

9046804147

main90468-04147¥70

9046804152

main90468-04152¥160

9046804163

main90468-04163¥200

9054105020

main90541-05020¥110

9166560820

main91665-60820¥140

9352054012

main93520-54012¥70

9356755016

main93567-55016¥110

9418040400

main94180-40400¥160

61 parts on this diagram · 3 diagrams in section
