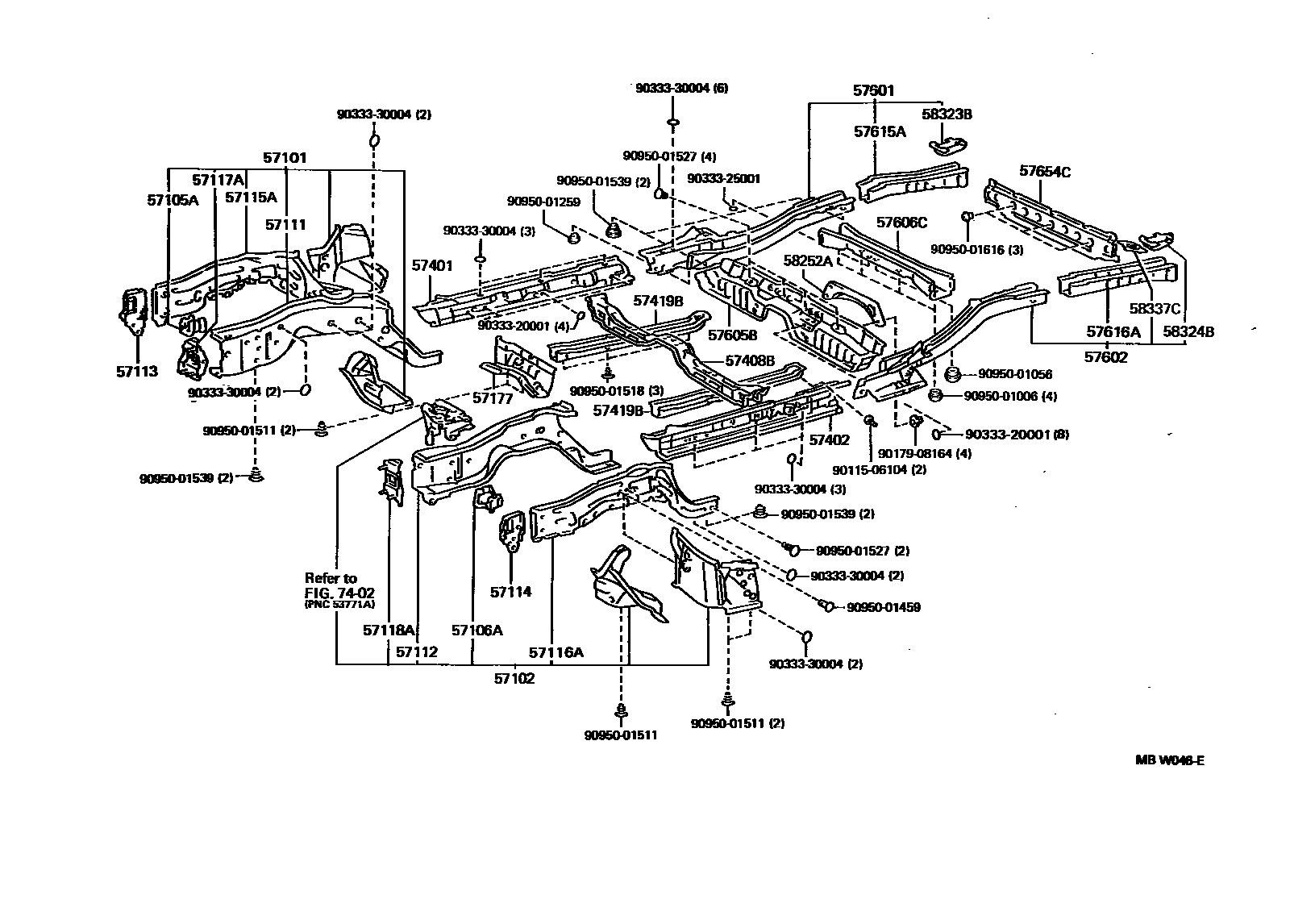

FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
SINGAPORE SPEC
W(CD AUTO CHANGER)
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
W(ABS)
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57654CMEMBER, REAR FLOOR CROSS, NO.3
58252ABRACE, FLOOR PANEL, REAR
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
58337CREINFORCEMENT, REAR FLOOR PAN, NO.1 LH
7402
9011506104
9017908164
9033320001
9033325001
9033330004
9095001006
9095001056
9095001259
9095001459
9095001511
9095001518
9095001527
9095001539
9095001616
43 parts on this diagram · 1 diagram in section
