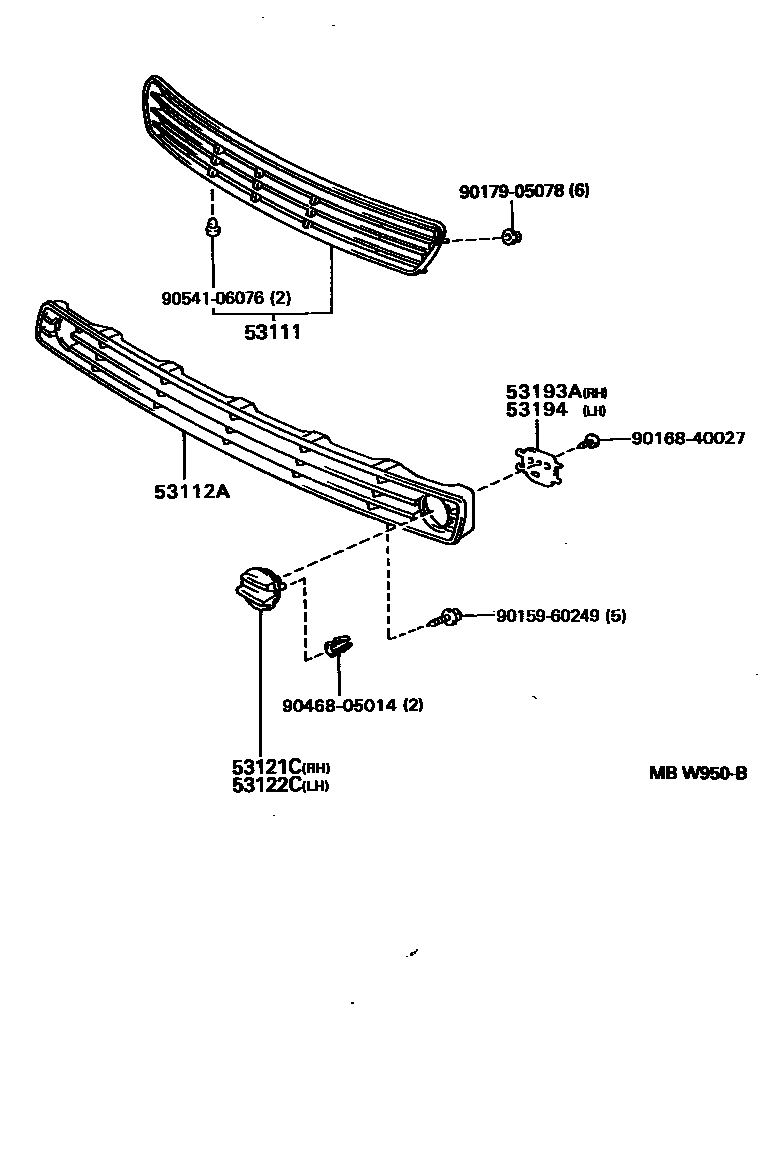

RADIATOR GRILLE
53111GRILLE, RADIATOR
BLACK,202
DARK MAUVE MICA M,3K1
BEIGE MICA,4J1
DARK GREEN MICA,6M1
SUPER WHITE PEARL MC,051
RED MICA,3K3
LT GRAYISH ROSE M OP,3K7
RED M.M,3K4
BEIGE ME,4M9
DARK BLUE M.M,8K0
SU.WHITE PM,051
RED MM,3K4
LT.GRAISH ROSE OP,3K7
MAGENTA MC.,3L3
BEIGE ME.,4M9
DK GREEN MICA,6M1
DK.GREEN M.M.,6P2
DK.BLUE M.M.,8K0
DK.GRAYISH PURPLE ME,928
53112AGRILLE, RADIATOR, LOWER
53121CPLATE, RADIATOR GRILLE FINISH, RH
53122CPLATE, RADIATOR GRILLE FINISH, LH
53193ARETAINER, RADIATOR GRILLE, LOWER RH
53194RETAINER, RADIATOR GRILLE, LOWER LH
9015960249
main90159-60249
9016840027
main90168-40027
9017905078
main90179-05078
9046805014
main90468-05014
9054106076
main90541-06076
11 parts on this diagram · 2 diagrams in section
