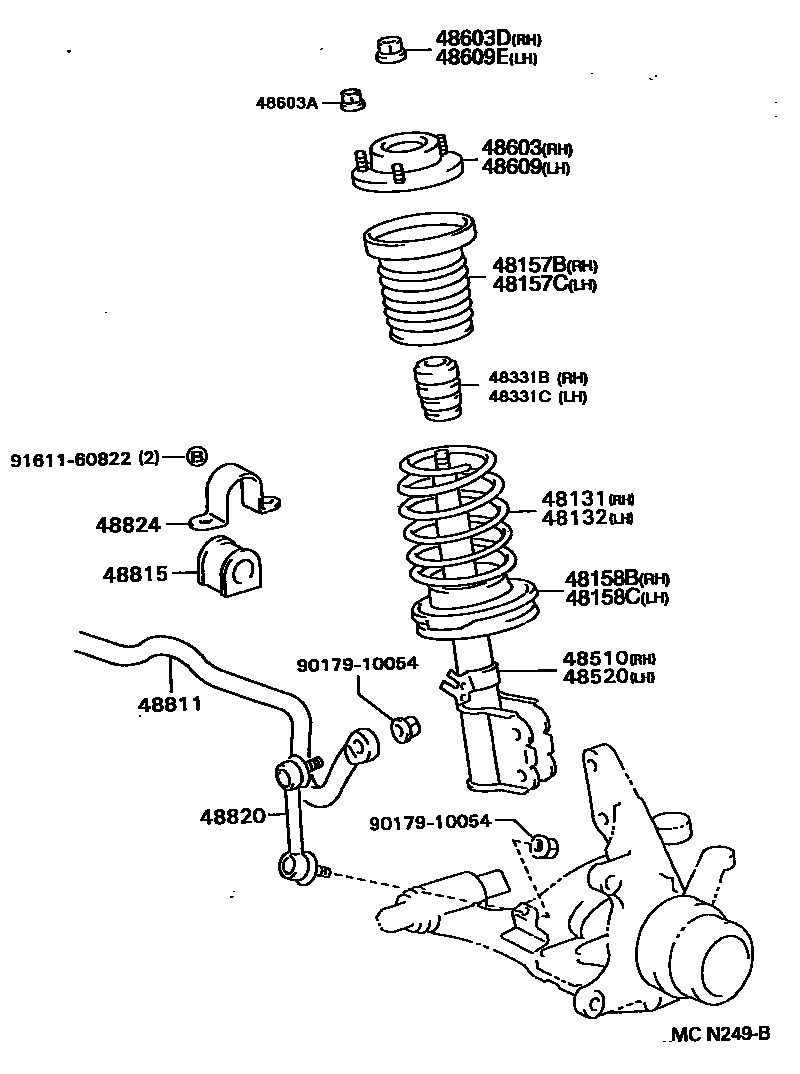

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
sub48331-33021
48331CBUMPER, FRONT SPRING, LH
sub48331-33021
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48811BAR, STABILIZER, FRONT
GREEN PAINTED
WHITE PAINTED
GREEN PAINTED
48820LINK ASSY, FRONT STABILIZER
9017910054
main90179-10054
9161160822
main91611-60822
21 parts on this diagram · 2 diagrams in section
