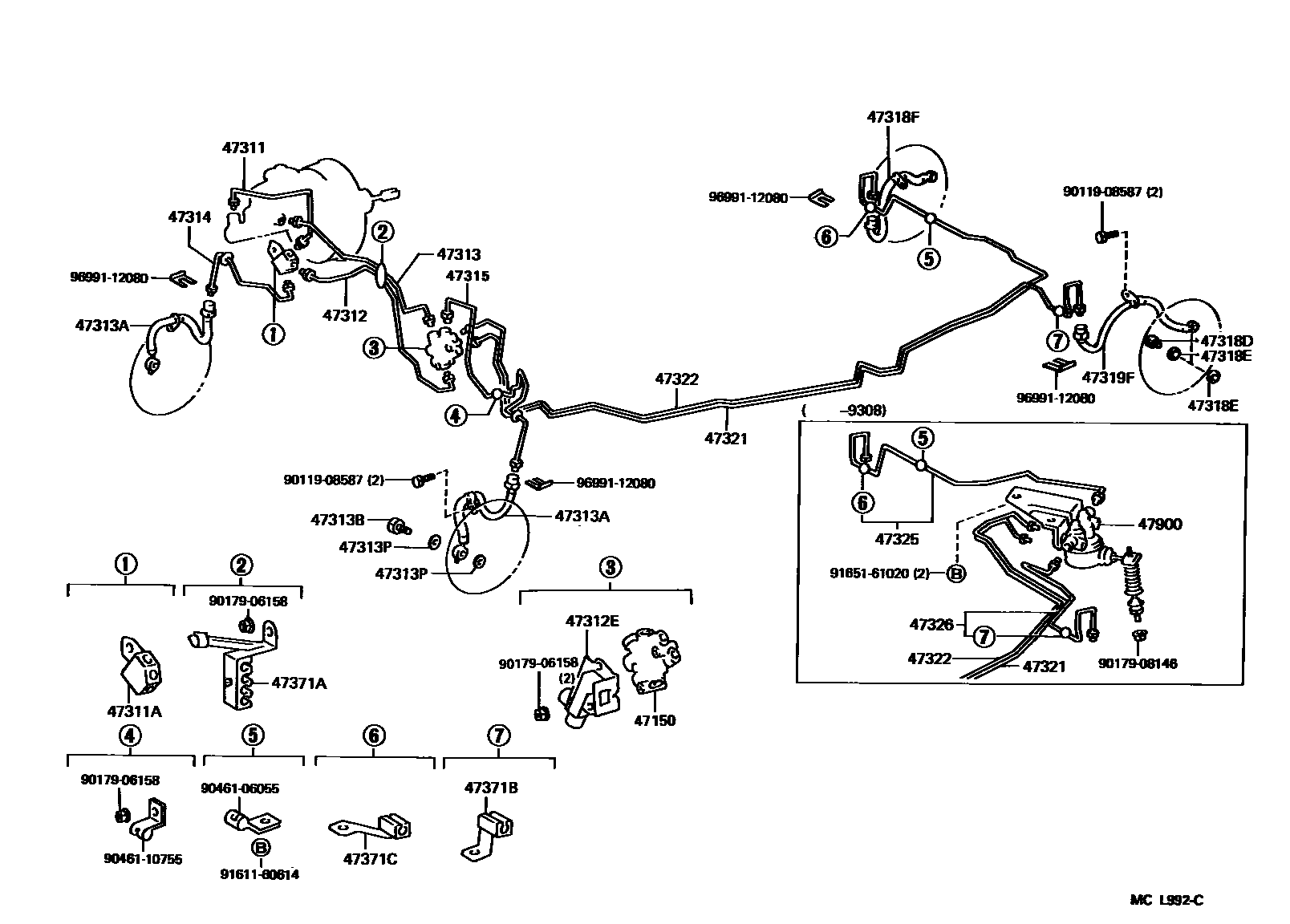

BRAKE TUBE & CLAMP
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
W(*66)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(*66)
47315TUBE, FRONT BRAKE, NO.5
W(*66)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47321TUBE, REAR BRAKE, NO.1
W(*66)
47322TUBE, REAR BRAKE, NO.2
W(*66)
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47900VALVE ASSY, LOAD SENSING W/SPRING
9011908587
main90119-08587
9017906158
main90179-06158
9017908146
main90179-08146
9046106055
main90461-06055
9046110755
main90461-10755
9161160614
main91611-60614
9165161020
main91651-61020
9699112080
main96991-12080
33 parts on this diagram · 3 diagrams in section
