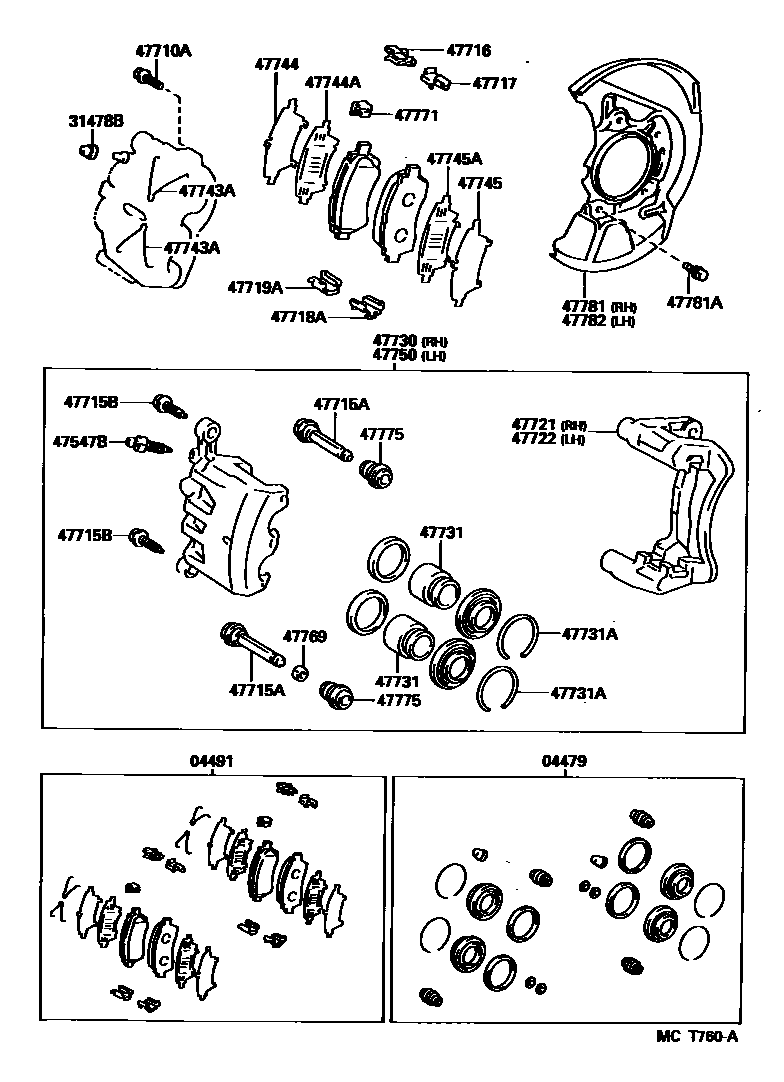

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-33010i199203-199408

main04479-50080i199308-199408

W(*66)

main04479-50080i199408-199608

04491PAD KIT, DISC BRAKE, FRONT

main04491-33020i199203-199304

sub04491-33021

main04491-33021i199304-199308

sub04491-33100

main04491-33100i199308-199408

sub04465-33060

main04491-33110i199408-199505

sub04465-33060

main04491-33110i199308-199408

W(*66)

sub04465-33060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i199203-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i199203-199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i199203-199608

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010i199308-199408

W(*66)

main47715-24010i199501-199608

SUB PIN SIDE

main47715-24010i199408-199501

main47715-33010i199501-199608

MAIN PIN SIDE

main47715-50010i199208-199408

SUB PIN SIDE

main47715-50010i199203-199208

main47715-50030i199208-199408

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164i199203-199408

main90109-08214i199308-199408

W(*66)

main90109-08214i199408-199608

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33030i199203-199304

sub47716-33031

main47716-33031i199304-199608

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33040i199203-199304

sub47716-33041

main47716-33041i199304-199608

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33030i199203-199304

sub47717-33031

main47717-33031i199304-199608

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33040i199203-199304

sub47717-33041

main47717-33041i199304-199608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33020i199203-199408

main47721-33050i199308-199408

W(*66)

main47721-33050i199408-199608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33020i199203-199408

main47722-33050i199408-199608

main47722-33050i199308-199408

W(*66)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33040i199203-199408

main47730-33080i199308-199408

W(*66)

main47730-33080i199408-199608

47731PISTON, FRONT DISC BRAKE

main47731-33010i199203-199408

main47731-33030i199308-199408

W(*66)

main47731-33030i199408-199608

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001i199308-199408

W(*66)

main90522-49001i199408-199608

main90522-66001i199203-199408

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-33010i199308-199408

W(*66)

main47743-33010i199408-199608

main47743-50030i199308-199408

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-33020i199203-199408

main47745-33030i199308-199408

W(*66)

main47745-33030i199408-199608

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33020i199203-199408

main47744-33030i199408-199608

main47744-33030i199308-199408

W(*66)

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-33020i199203-199408

main47745-33030i199308-199408

W(*66)

main47745-33030i199408-199608

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-33020i199203-199408

main47744-33030i199308-199408

W(*66)

main47744-33030i199408-199608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33040i199203-199408

main47750-33080i199308-199408

W(*66)

main47750-33080i199408-199608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i199203-199608

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010i199308-199408

W(*66)

main47771-33010i199408-199608

main47771-50010i199203-199408

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010i199203-199608

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-33020i199203-199308

main47781-33020i199308-199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227i199203-199608

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-33020i199203-199308

main47782-33020i199308-199608

28 parts on this diagram · 2 diagrams in section
