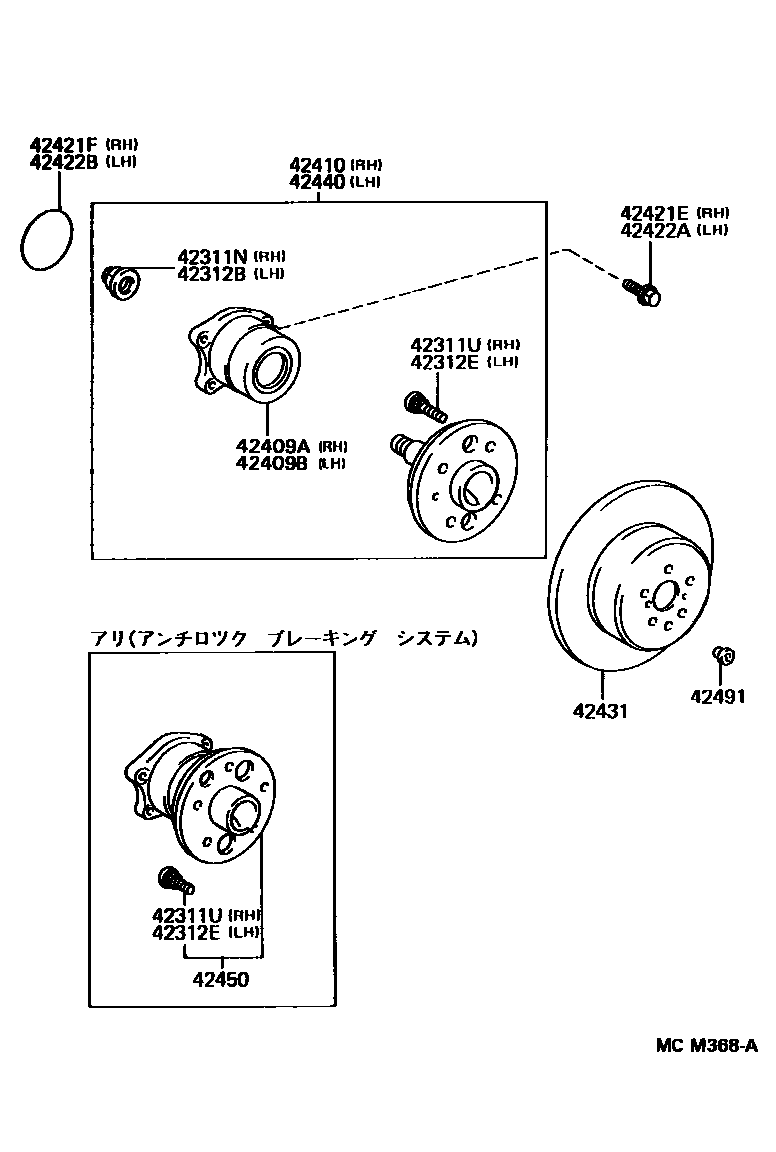

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90179-20017iVCV10199203-199308

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iVCV10199203-199608

42312BNUT(FOR REAR AXLE SHAFT LH)

main90179-20017iVCV10199203-199308

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iVCV10199203-199608

42409ABEARING SUB-ASSY, REAR AXLE, RH

main42409-33010iVCV10199203-199308

sub42409-33020

42409BBEARING SUB-ASSY, REAR AXLE, LH

main42409-33010iVCV10199203-199308

sub42409-33020

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-33010iVCV10199203-199308

sub42410-33020

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iVCV10199203-199608

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iVCV10199203-199608

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iVCV10199203-199608

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iVCV10199203-199608

sub90301-63006

42431DISC, REAR

main42431-33030iVCV10199308-199608

main42431-33050iVCV10199203-199308

sub42431-33030

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-33010iVCV10199203-199308

sub42410-33020

42450HUB & BEARING ASSY, REAR AXLE

main42450-33010iVCV10199203-199608

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iVCV10199203-199608

15 parts on this diagram · 1 diagram in section
