SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
LEATHER PACKAGE
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
LEATHER PACKAGE
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
LEATHER PACKAGE
33504FKNOB SUB-ASSY, SHIFT LEVER
LEATHER TYPE & W(POWER SEAT PACKAGE),BLACK,TRIM2#
sub33542-33060
LEATHER TYPE & W(POWER SEAT PACKAGE),GREIGE,TRIM0#
sub33542-33060
LEATHER TYPE & W(POWER SEAT PACKAGE),TAUPE,TRIM9#
sub33542-33060
33511BBUSH (FOR CONTROL SHAFT)
33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
LEATHER PACKAGE
33544INSERT, SHIFT LEVER, NO.1
LEATHER PACKAGE
33550DBULB, POSITION INDICATOR LAMP
12V 3.4W,LEATHER PACKAGE
12V 3.4W
33550ECAP, POSITION INDICATOR LAMP
sub90339-09002
33622COVER, SHIFT LEVER KNOB, NO.1
33622BPLUG, SHIFT LEVER KNOB
LEATHER TYPE & W(POWER SEAT PACKAGE),BLACK,TRIM2#
sub33622-20050
LEATHER TYPE & W(POWER SEAT PACKAGE),GREIGE,TRIM0#
sub33622-20050
LEATHER TYPE & W(POWER SEAT PACKAGE),TAUPE,TRIM9#
sub33622-20050
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
LEATHER PACKAGE
33625SLEEVE, SHIFT LEVER KNOB
LEATHER PACKAGE
33626STOPPER, SHIFT LEVER BUTTON
LEATHER PACKAGE
33631ASPRING, COMPRESSION (FOR DETENT ROD)
LEATHER PACKAGE
33631DPIN, GROOVED (FOR DETENT ROD)
LEATHER PACKAGE
35559SPRING, MANUAL DETENT
LEATHER PACKAGE
35559APIN (FOR MANUAL DETENT SPRING)
LEATHER PACKAGE
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-26030
35921PLATE, CONTROL POSITION INDICATOR
LEATHER PACKAGE
35974HOUSING, POSITION INDICATOR, LOWER
LEATHER PACKAGE
35975COVER, SLIDE (FOR POSITION INDICATOR)
LEATHER PACKAGE
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8410
9016140024
main90161-40024
9016850066
main90168-50066
9046312570
main90463-12570
9166160830
main91661-60830
9331514010
main93315-14010

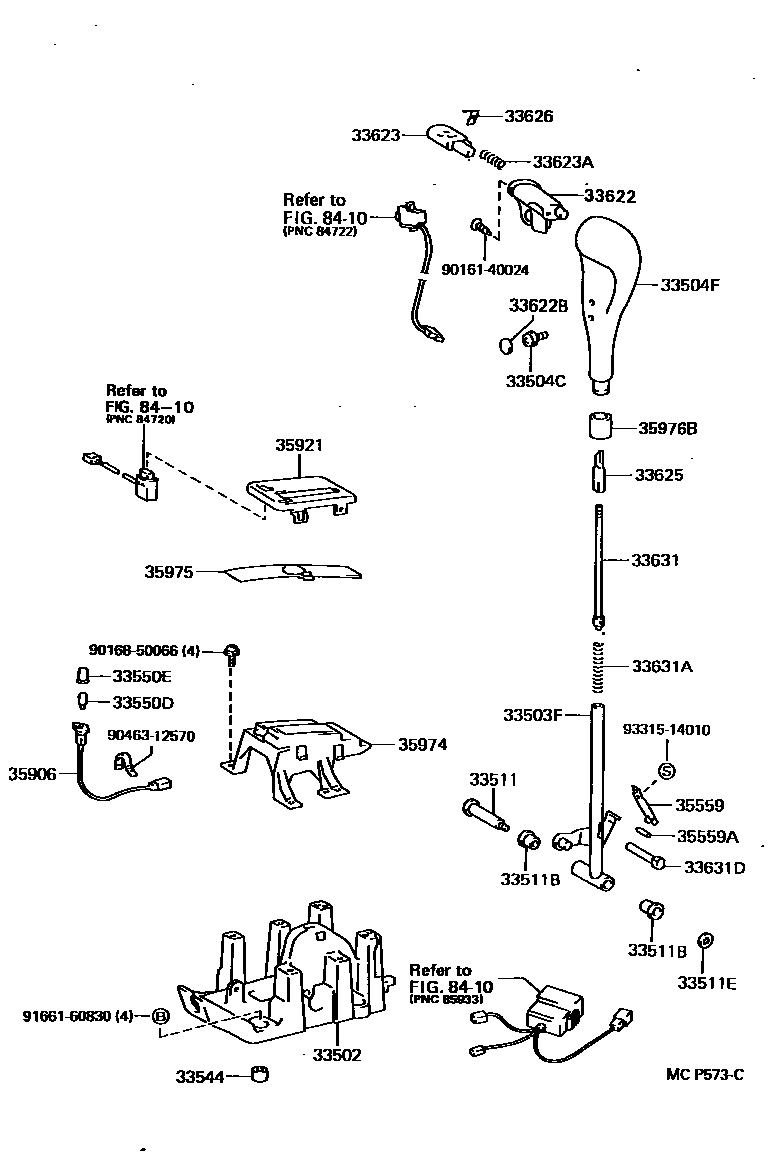

32 parts on this diagram · 2 diagrams in section
