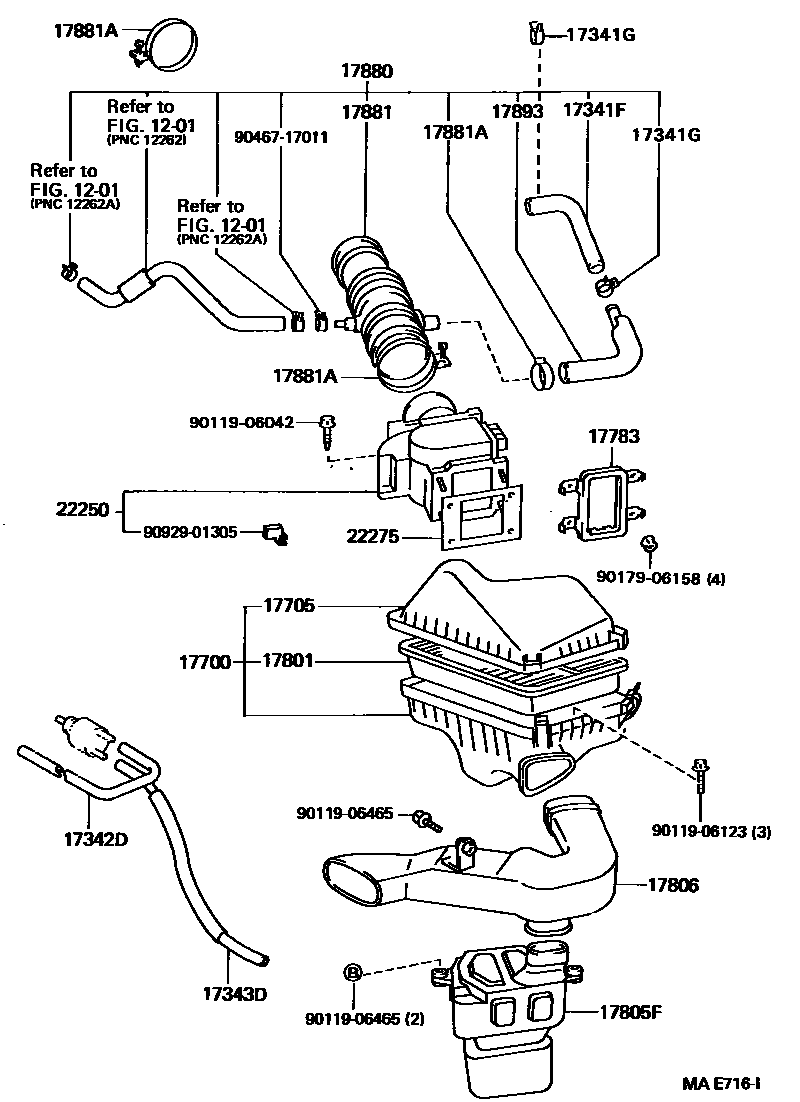

AIR CLEANER
1201
17341FHOSE, AIR, NO.1
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342DHOSE, AIR, NO.2
17343DHOSE, AIR, NO.3
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17783PLATE, AIR CLEANER BAFFLE
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
17806PIPE SUB-ASSY, AIR CLEANER, NO.2
sub17806-20010
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
17893RESONATOR, INTAKE AIR
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
9011906042
main90119-06042
9011906123
main90119-06123
9011906465
main90119-06465
9017906158
main90179-06158
9046717011
main90467-17011
9092901305
main90929-01305
23 parts on this diagram · 1 diagram in section
