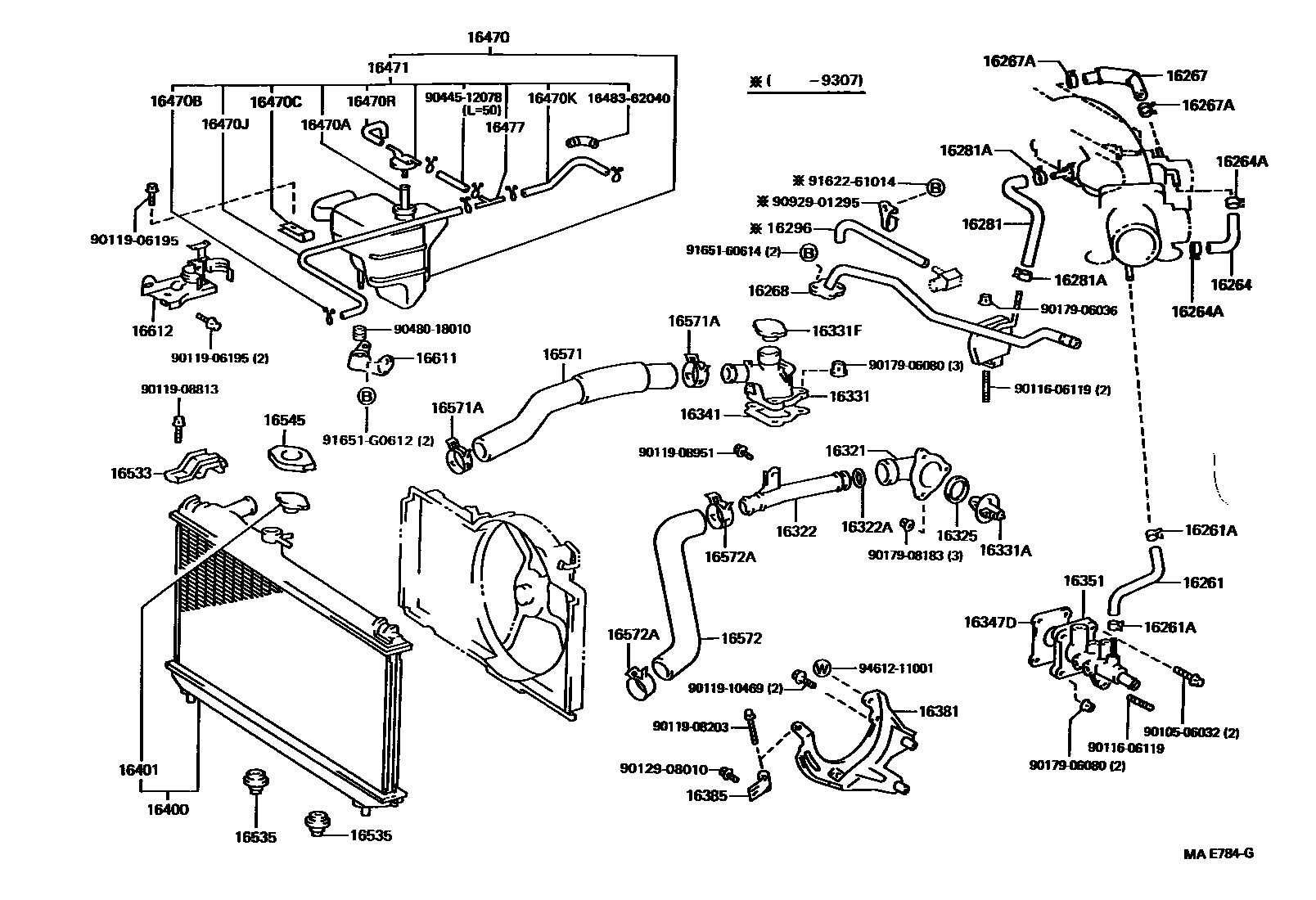

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-62020i3VZFE..VCV10199203-199608

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-41300×2i3VZFE..VCV10199203-199608

sub96135-51300

16264HOSE, WATER BY-PASS, NO.2

main16264-62030i3VZFE..VCV10199203-199608

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96135-41300×2i3VZFE..VCV10199203-199608

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-62020i3VZFE..VCV10199203-199608

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300×2i3VZFE..VCV10199203-199608

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-62030i3VZFE..VCV10199203-199608

16281HOSE, WATER BY-PASS, NO.4

main16281-62020i3VZFE..VCV10199203-199608

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main96135-41300×2i3VZFE..VCV10199203-199608

sub96135-51300

16296HOSE, WATER BY-PASS, NO.8

main16296-62010i3VZFE..VCV10199203-199307

16321INLET, WATER

main16321-62010i3VZFE..VCV10199203-199608

16322PIPE, WATER INLET

main16322-62020i3VZFE..VCV10199203-199608

16322ARING, O(FOR WATER INLET)

main96711-35031i3VZFE..VCV10199203-199501

main96761-35031i3VZFE..VCV10199501-199608

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3VZFE..VCV10199203-199608

16331OUTLET, WATER

main16331-62030i3VZFE..VCV10199203-199608

sub16331-62031

16331ATHERMOSTAT

main90916-03075i3VZFE..VCV10199203-199608

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i3VZFE..VCV10199203-199608

16341GASKET, WATER OUTLET

main16341-62030i3VZFE..VCV10199203-199608

16347DGASKET, WATER BY-PASS

main16347-62030i3VZFE..VCV10199203-199608

16351OUTLET, WATER BY-PASS

main16351-62040i3VZFE..VCV10199203-199408

main16351-62041i3VZFE..VCV10199408-199608

16381BAR, FAN BELT ADJUSTING

main16381-62020i3VZFE..VCV10199203-199207

main16381-62021i3VZFE..VCV10199207-199608

16385SLIDER, FAN BELT ADJUSTING

main16385-62010i3VZFE..VCV10199203-199608

16400RADIATOR ASSY

main16400-62110i3VZFE..VCV10199203-199308

TYPE 2

main16400-62160i3VZFE..VCV10199308-199608

16401CAP SUB-ASSY, RADIATOR

main16401-62100i3VZFE..VCV10199203-199308

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-0A010i3VZFE..VCV10199408-199608

SALGA

main16470-20020i3VZFE..VCV10199308-199408

main16470-62040i3VZFE..VCV10199203-199308

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-03010i3VZFE..VCV10199408-199608

SALGA

main90445-12078i3VZFE..VCV10199203-199408

L=600

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3VZFE..VCV10199308-199608

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16471-74180i3VZFE..VCV10199203-199308

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16472-0A020i3VZFE..VCV10199408-199608

SALGA

main16479-62040i3VZFE..VCV10199203-199308

main90445-12078i3VZFE..VCV10199308-199408

L=600

16470KHOSE, NO.4(FOR RADIATOR RESERVE TANK)

main16478-62040i3VZFE..VCV10199203-199308

main85338-70070i3VZFE..VCV10199308-199608

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-0A010i3VZFE..VCV10199408-199608

SALGA

main16477-74180i3VZFE..VCV10199408-199608

*ND

16471CAP SUB-ASSY, RESERVE TANK

main16405-0A010i3VZFE..VCV10199408-199608

SALGA

main16405-20010i3VZFE..VCV10199408-199608

*ND

main16405-62030i3VZFE..VCV10199203-199308

16477PIPE(FOR RADIATOR RESERVE TANK)

main16477-62040i3VZFE..VCV10199203-199308

16533SUPPORT, RADIATOR, UPPER

main16533-62020×2i3VZFE..VCV10199203-199408

TYPE 2

16535SUPPORT, RADIATOR, LOWER

main16535-62030×2i3VZFE..VCV10199203-199212

main16535-62031×2i3VZFE..VCV10199212-199608

16545COVER, RADIATOR CAP

main16545-62011i3VZFE..VCV10199203-199308

16571HOSE, RADIATOR, INLET

main16571-62040i3VZFE..VCV10199203-199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37004×2i3VZFE..VCV10199203-199608

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-62030i3VZFE..VCV10199203-199608

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002×2i3VZFE..VCV10199203-199608

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-74080i3VZFE..VCV10199203-199608

16612BRACKET, RADIATOR RESERVE TANK, NO.2

main16612-74010i3VZFE..VCV10199203-199308

main16612-74020i3VZFE..VCV10199308-199608

1648362040

main16483-62040

9010506032

main90105-06032

9011606119

main90116-06119

9011906195

main90119-06195

9011908203

main90119-08203

9011908813

main90119-08813

9011908951

main90119-08951

9011910469

main90119-10469

9012908010

main90129-08010

9017906036

main90179-06036

9017906080

main90179-06080

9017908183

main90179-08183

9044512078

main90445-12078

9048018010

main90480-18010

9092901295

main90929-01295

9162261014

main91622-61014

9165160614

main91651-60614

91651G0612

main91651-G0612

9461211001

main94612-11001

61 parts on this diagram · 6 diagrams in section
