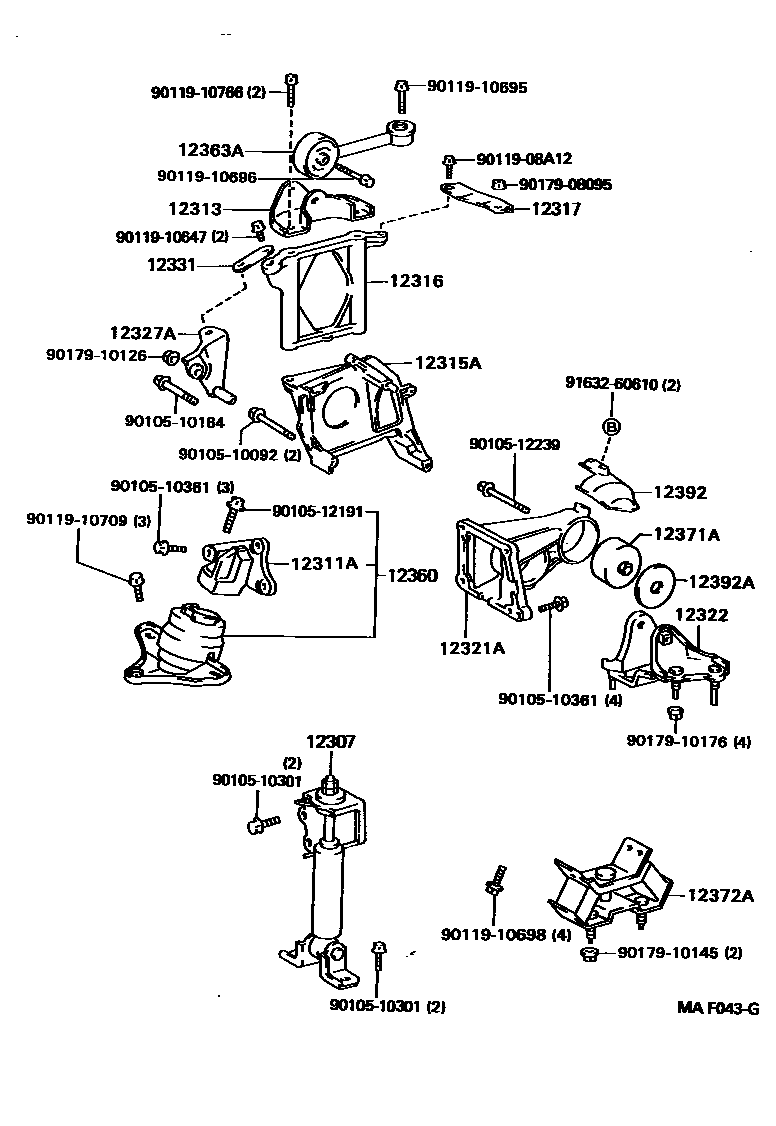

MOUNTING
12307ABSORBER SUB-ASSY, ENGINE MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12317STAY, ENGINE MOUNTING, RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12331STAY, ENGINE MOUNTING, NO.3 RH
12363AROD, ENGINE MOVING CONTROL
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
sub12372-20010
12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12392AINSULATOR, ENGINE MOUNTING HEAT, REAR
9010510092
main90105-10092
9010510164
main90105-10164
9010510301
main90105-10301
9010510361
main90105-10361
9010512191
main90105-12191
9010512239
main90105-12239
9011908A12
main90119-08A12
9011910647
main90119-10647
9011910695
main90119-10695
9011910696
main90119-10696
9011910698
main90119-10698
9011910709
main90119-10709
9011910766
main90119-10766
9017908095
main90179-08095
9017910126
main90179-10126
9017910145
main90179-10145
9017910176
main90179-10176
9163260610
main91632-60610
34 parts on this diagram · 1 diagram in section
