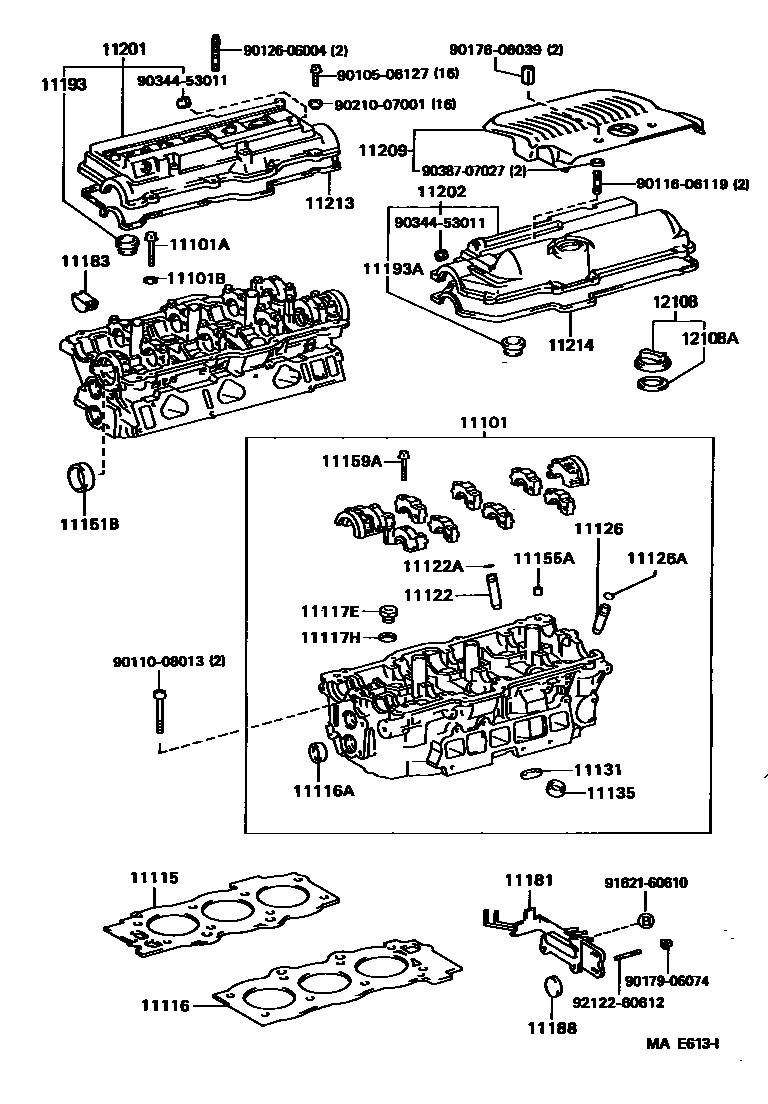

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
T=1.29
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub90119-07009
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11193GASKET, SPARK PLUG TUBE
sub11193-70010
11193AGASKET, SPARK PLUG TUBE, LH
sub11193-70010
11201COVER SUB-ASSY, CYLINDER HEAD
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11209COVER SUB-ASSY, V-BANK
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9010506127
main90105-06127
9011008013
main90110-08013
9011606119
main90116-06119
9012606004
main90126-06004
9017606039
main90176-06039
9017906074
main90179-06074
9021007001
main90210-07001
9034453011
main90344-53011
9038707027
main90387-07027
9162160610
main91621-60610
9212260612
main92122-60612
40 parts on this diagram · 1 diagram in section
