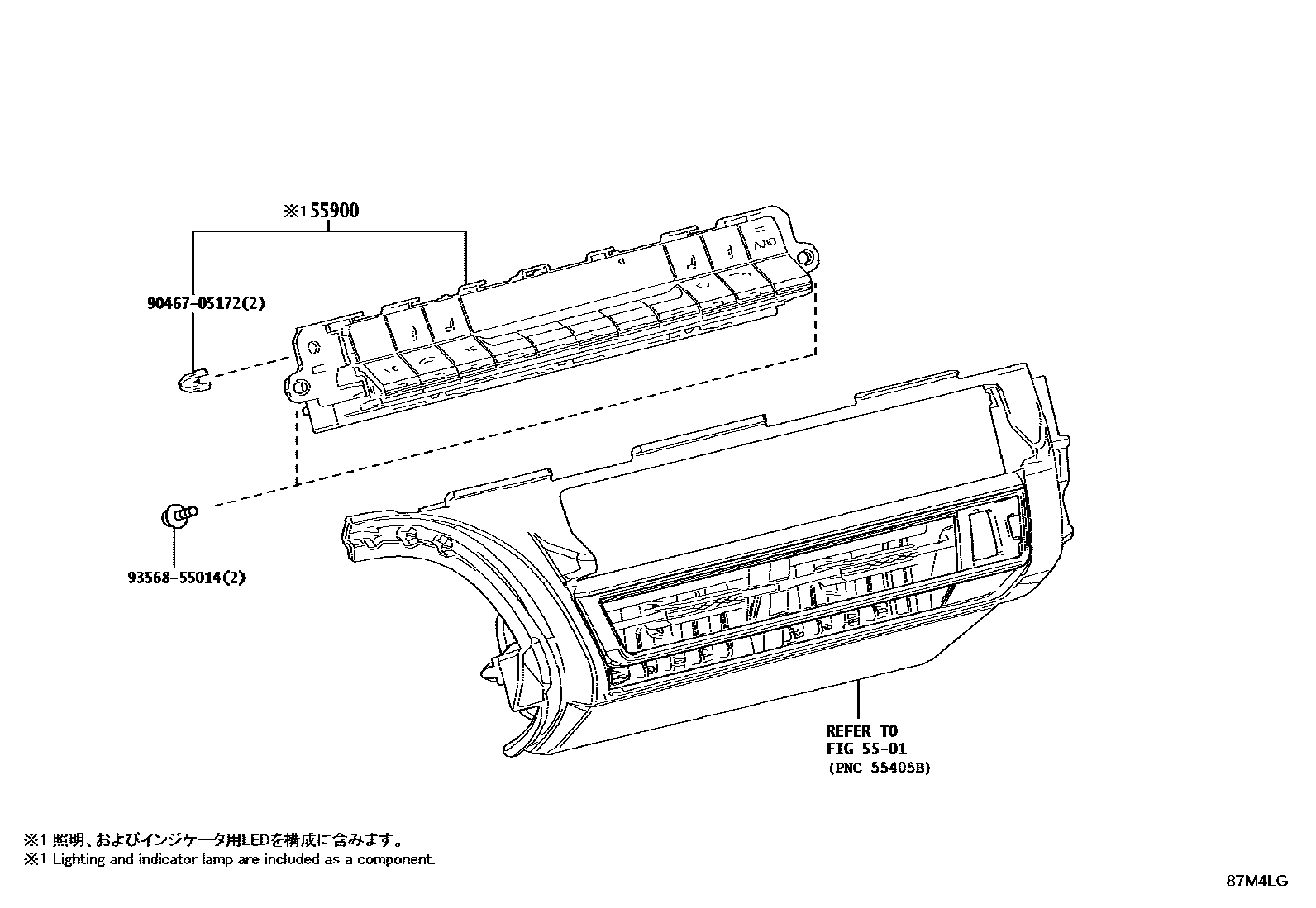

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR 0004 1HEATER CONTROL PANEL 0005 1AIR DUCT 0006 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-33N00iAXVH80..N..GCC202406

VALUE PACKAGE

main55900-33N10iMXVA80..N202406

main55900-33N60iAXVA80,AXVH80..N..EUR202406

main55900-33N70iAXVH80..G..GCC202406

UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)

main55900-33N90iAXVH80..N..TAIW202406

main55900-33P00iAXVA80,AXVH80..G..GCC202406

main55900-33P10iAXVA80,AXVH80..N..GCC202406

main55900-33P40iAXVH80..G..ARL202406

main55900-33Q10iAXVH80..N..ARL202406

main55900-33N40iAXVH80..N..EUR202406

HEATER PACKAGE

main55900-33Q50iAXVH80..RHD..EUR202412

REAR ARMREST-WITH(CUP HOLDER)

9046705172

main90467-05172

9356855014

main93568-55014

4 parts on this diagram · 6 diagrams in section
