CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86470COMPUTER ASSY, DRIVER MONITOR

main86470-33040iAXVH80..ARL202406

86471CAMERA, DRIVER MONITOR

main86471-30040iAXVH80..N..EUR202406

KYRGYZSTAN SPEC

86790CAMERA ASSY, TELEVISION

main86790-33420iAXVH80..N..ARL202406

main86790-33430iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

main867B0-33390iAXVH80..N..TAIW;AXVA80,MXVA80..G,N;AXVH80..LHD..(G,N)..(EUR,GCC)202406

86790BCAMERA ASSY, TELEVISION, FR

main86790-33440supersedes 86790-33440iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33460supersedes 86790-33460iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33450supersedes 86790-33450iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE

86791BRACKET, TELEVISION CAMERA

main86791-33020supersedes 86791-33020iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86792CCOMPUTER, PARKING ASSIST

main86792-33290iAXVH80..G..TAIW202406

UPPER GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

main86792-33730supersedes 86792-33730iAXVH80..ARL202406

main86792-33710iAXVH80..N..ARL202406

VALUE PACKAGE

86794BCOVER, TELEVISION CAMERA

main86794-33010iAXVH80..N;AXVA80,MXVA80..G,N;AXVH80..LHD..G..(EUR,GCC)202406

main86794-33020supersedes 86794-33020iAXVH80..G..(ARL,TAIW)202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

86796COVER, COMPUTER PARKING ASSIST

main86796-33030supersedes 86796-33030iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)

86799WIRE, TELEVISION CAMERA

main86799-33190×2supersedes 86799-33190iAXVH80..ARL;AXVH80..G..TAIW202406

UPPER GRADE PACKAGE

86799EWIRE, TELEVISION CAMERA, REAR

main86799-33220iAXVH80..N..TAIW;AXVA80,MXVA80..G,N;AXVH80..LHD..(G,N)..(EUR,GCC)202406

main86799-33230iAXVH80..N..ARL202406

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-33150supersedes 867A0-33150iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

867C0CAMERA ASSY, INNER MIRROR

main8679C-33010supersedes 8679C-33010iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906A24

main90119-06A24

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

9046707214

main90467-07214

9098012E11

main90980-12E11

9356855014

main93568-55014

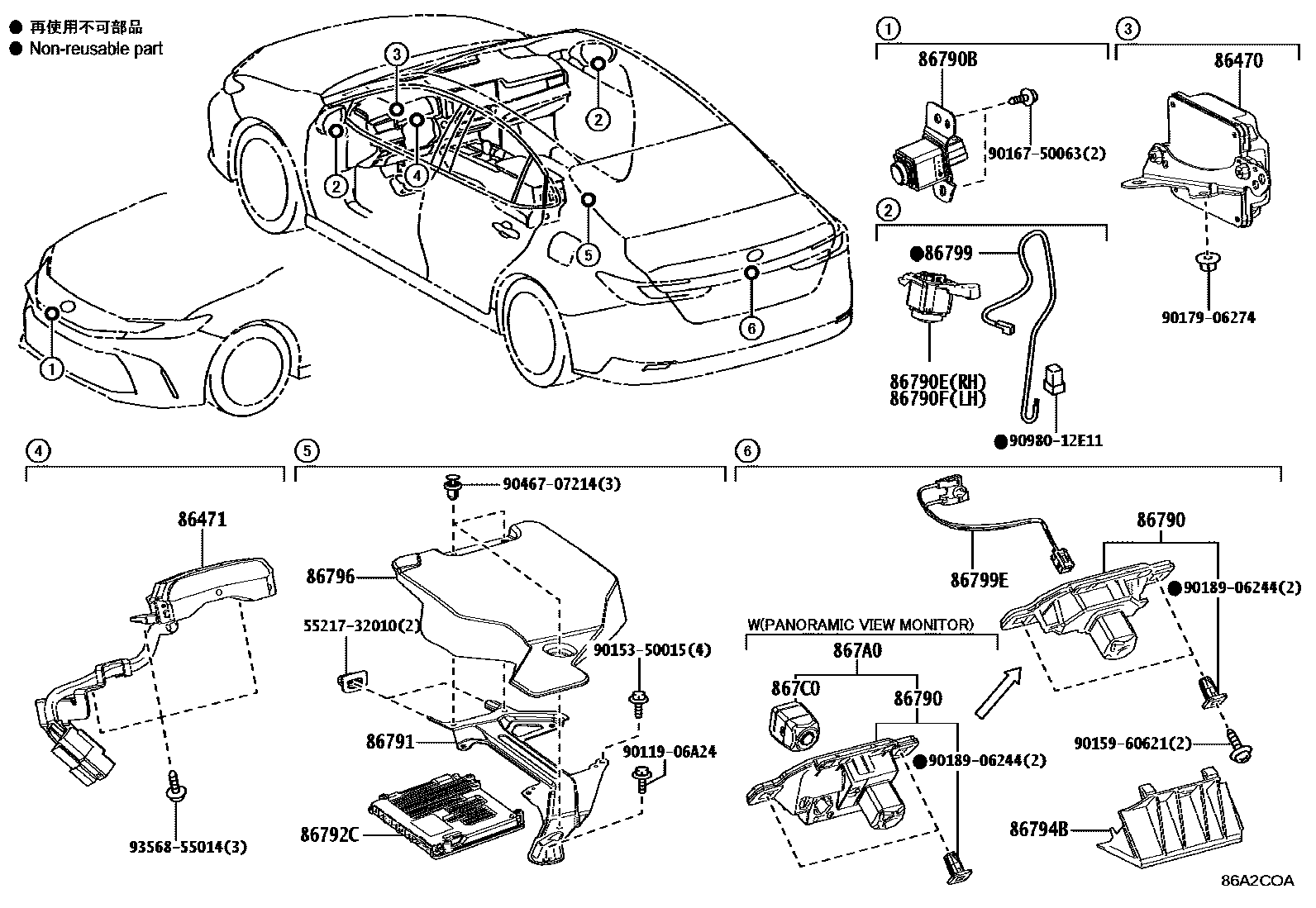

24 parts on this diagram · 2 diagrams in section
