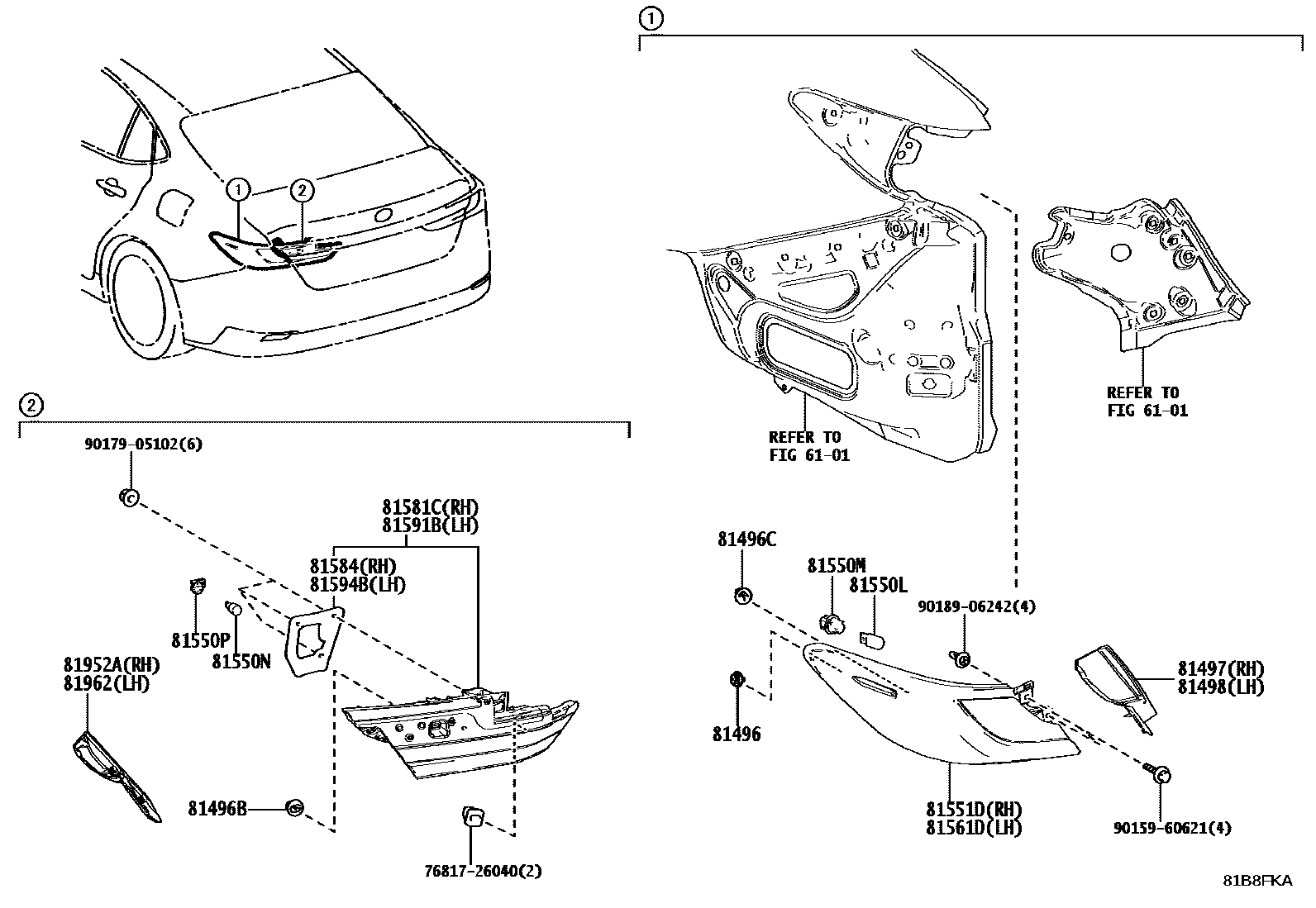

REAR COMBINATION LAMP

0001 1REAR TURN SIGNAL LAMP: BULB T0002 1REAR TURN SIGNAL LAMP: LED TY

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iAXVA80,AXVH80,MXVA80202406

81496BGUIDE, REAR LAMP

main81496-52020iAXVA80,AXVH80,MXVA80202406

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iAXVA80,AXVH80,MXVA80202406

81497COVER, REAR COMBINATION LAMP, RH

main81497-33050iAXVA80,AXVH80,MXVA80202406

81498COVER, REAR COMBINATION LAMP, LH

main81498-33050iAXVA80,AXVH80,MXVA80202406

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

12V 21W,AMBER

main90981-15021iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

12V 21W,AMBER,HEADLAMP-SINGLE BEAM LED

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

HEADLAMP-SINGLE BEAM LED

81550NBULB, BACK UP LAMP

main90981-11059iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

12V 16W

main90981-11059iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

12V 16W,HEADLAMP-SINGLE BEAM LED

81550PSOCKET, BACK UP LAMP

main90075-99005iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

HEADLAMP-SINGLE BEAM LED

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33A40iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

HEADLAMP-SINGLE BEAM LED

main81551-33A50iAXVH80..G..EUR;AXVA80,MXVA80..G..(EUR,TAIW);AXVA80,AXVH80..(G,N)..(ARL,GCC,TAIW)202406

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33A40iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

HEADLAMP-SINGLE BEAM LED

main81561-33A50iAXVH80..G..EUR;AXVA80,MXVA80..G..(EUR,TAIW);AXVA80,AXVH80..(G,N)..(ARL,GCC,TAIW)202406

81581CLENS AND BODY, REAR LAMP, RH

main81581-33570iAXVH80..N..EUR;AXVA80,AXVH80..D;AXVA80,MXVA80..N..(EUR,TAIW)202406

HEADLAMP-SINGLE BEAM LED

81584PACKING, REAR LAMP RH

main81582-33570iAXVA80,AXVH80,MXVA80202406

81591BLENS AND BODY, REAR LAMP, LH

main81591-33570iAXVH80..N..ARL202406

HEADLAMP-SINGLE BEAM LED

main81591-33580iAXVH80..N..GCC202406

HEADLAMP-SINGLE BEAM LED

81594BPACKING, REAR LAMP LH

main81592-33570iAXVA80,AXVH80,MXVA80202406

81952ACOVER, REAR LAMP, RH

main81952-33010iAXVA80,AXVH80,MXVA80202406

81962COVER, REAR LAMP, LH

main81962-33010iAXVA80,AXVH80,MXVA80202406

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

22 parts on this diagram · 2 diagrams in section
