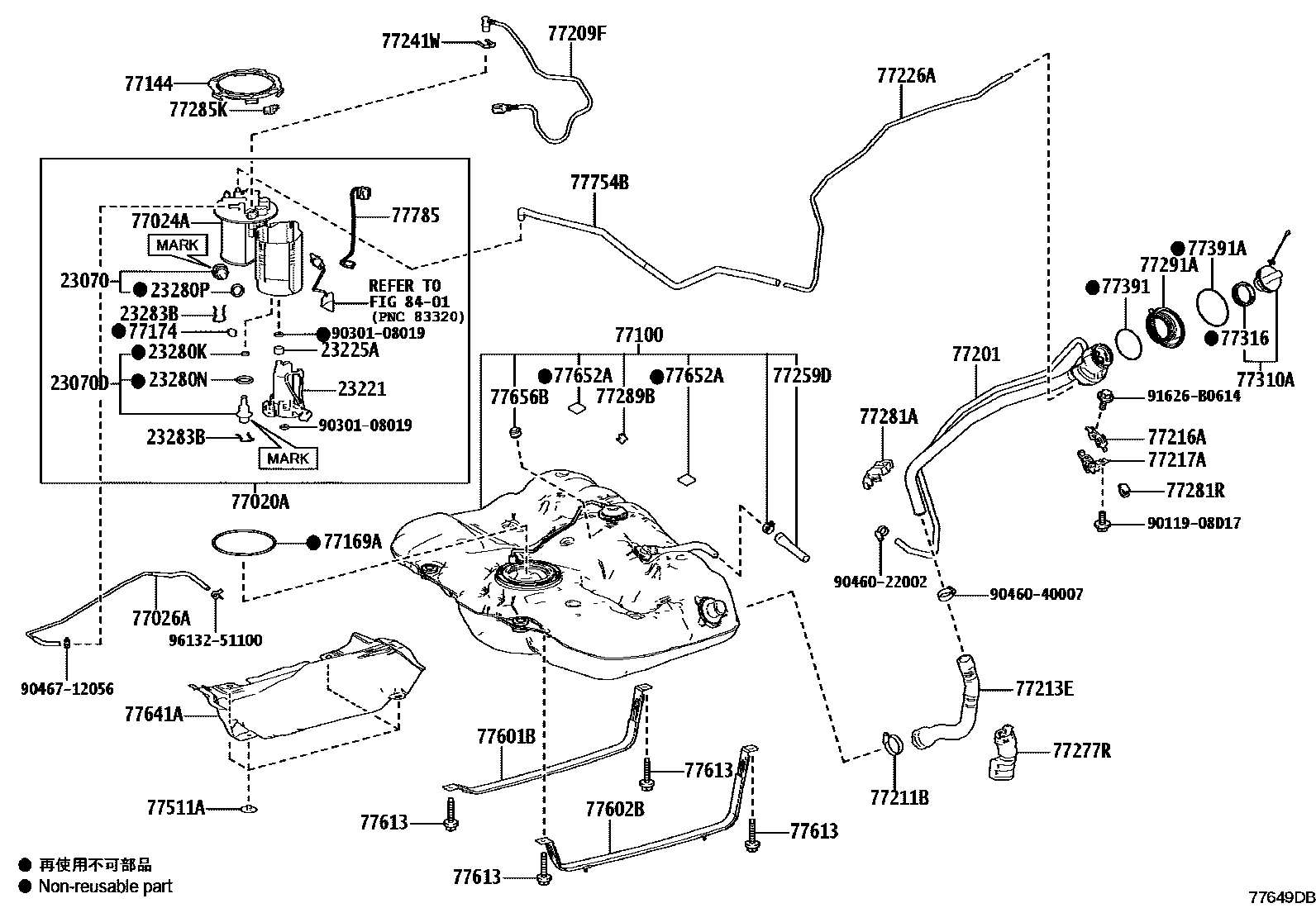

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK(KOREA SPEC) 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE(KOREA SPEC) 0007 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iM20..MXVA80¥2,560202406

MARK 23070-25020

main23070-31030iM20..MXVA80¥2,560202406

MARK 23070-31030

23070DVALVE ASSY, FUEL MAIN, NO.2

main23070-31030iA25..AXVA80¥2,560202406

23221PUMP, FUEL

main23220-25020iA25,M20..AXVA80,MXVA80202406

main23221-25030iA25..AXVH80¥23,400202406

23225ASPACER, FUEL PUMP

main23225-31020iA25,M20..AXVA80,AXVH80,MXVA80¥40202406

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013iA25,M20..AXVA80,MXVA80¥140202406

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024iA25,M20..AXVA80,AXVH80,MXVA80¥140202406

23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3

main90301-15024iA25,M20..AXVA80,MXVA80¥140202406

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24011iA25..AXVH80202406

main23283-36010iA25,M20..AXVA80,MXVA80¥110202406

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33500iAXVA80,MXVA80202406

main77020-33512iAXVH80202406

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33320iAXVA80,MXVA80202406

main77024-33421iAXVH80202406

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-33090iAXVA80,MXVA80202406

main77026-33100iAXVH80202406

77100TANK ASSY, FUEL

main77001-33270iAXVA80,MXVA80202406

main77001-33311iAXVH80..EUR,TAIW¥30,200202406

main77001-33430iAXVH80..ARL,GCC¥30,200202406

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAXVA80,AXVH80,MXVA80¥1,270202406

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAXVA80¥220202406

main77169-47040iAXVH80,MXVA80..EUR,TAIW¥700202406

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33060iAXVA80,MXVA80202406

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33400iMXVA80;AXVA80,AXVH80..ARL,GCC¥6,200202406

main77201-33440iAXVA80..EUR202406

main77201-33560iAXVH80..EUR,TAIW¥10,300202406

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33140iAXVH80..ARL,GCC¥1,570202406

main77209-33160iAXVA80,MXVA80202406

main77209-33171iAXVH80..EUR,TAIW¥1,010202406

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iAXVA80,MXVA80;AXVH80..ARL,GCC¥240202406

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iAXVA80,MXVA80;AXVH80..ARL,GCC¥2,200202406

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33150iMXVA80;AXVA80,AXVH80..ARL,GCC¥310202406

main77216-33170iAXVA80..EUR202406

main77216-33190iAXVH80..EUR,TAIW202406

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33090iMXVA80;AXVA80,AXVH80..ARL,GCC¥670202406

main77217-33110iAXVA80..EUR202406

main77217-33130iAXVH80..EUR,TAIW202406

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33130iMXVA80;AXVA80,AXVH80..ARL,GCC¥1,550202406

main77226-33160iAXVA80..EUR202406

main77226-33250iAXVH80..EUR,TAIW202406

77241WCLIP, TUBE JOINT

main77241-60550iAXVA80,AXVH80,MXVA80¥50202406

KOREA SPEC

77259DHOSE, FUEL, NO.1

main77259-33080iAXVA80,MXVA80;AXVH80..ARL,GCC202406

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iAXVA80,AXVH80,MXVA80¥720202406

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iAXVA80,MXVA80¥320202406

77281ACLAMP, FUEL FILLER PIPE

main77281-33050iAXVA80,AXVH80,MXVA80¥790202406

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iAXVA80,AXVH80,MXVA80¥190202406

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iAXVA80,AXVH80,MXVA80¥200202406

77289BCLAMP, FUEL TUBE, NO.3

main77289-33080iAXVA80,MXVA80202406

main77289-33090iAXVH80¥550202406

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAXVA80,AXVH80,MXVA80¥1,040202406

77310ACAP ASSY, FUEL TANK

main77300-12020iAXVA80;AXVH80..ARL,GCC¥1,660202406

main77300-48020iAXVH80,MXVA80..EUR,TAIW¥1,960202406

77316GASKET, FUEL TANK CAP

main77316-52040iAXVA80;AXVH80..ARL,GCC¥230202406

main77316-75020iAXVH80,MXVA80..EUR,TAIW¥200202406

77391RING, FUEL INLET BOX

main77391-12020iAXVA80,AXVH80,MXVA80¥180202406

77391ARING, FUEL INLET BOX

main77391-33060iAXVA80,AXVH80,MXVA80¥200202406

77511ABRACKET, FUEL TANK

main77512-35140iAXVH80¥230202406

KOREA SPEC

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33150iAXVA80,MXVA80..GCC,TAIW202406

main77601-33170iAXVA80..EUR202406

main77601-33180iAXVH80¥1,540202406

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33160iAXVA80,MXVA80..GCC,TAIW202406

main77602-33180iAXVA80..EUR202406

main77602-33190iAXVH80¥1,540202406

77613BOLT, FUEL TANK BAND SET

main90119-10995iAXVA80,MXVA80¥190202406

77641APROTECTOR, FUEL TANK, NO.1

main77606-33050iAXVH80¥1,840202406

main77641-33030iAXVA80,MXVA80202406

77652ACUSHION, FUEL TANK, NO.2

main77652-33060iAXVA80,MXVA80¥250202406

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAXVA80,MXVA80¥250202406

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-33070iAXVA80,MXVA80202406

main77754-33080iAXVH80¥1,270202406

77785HARNESS, FUEL PUMP

main77785-33140iAXVA80,MXVA80202406

main77785-33181iAXVH80202406

8401

9011908D17

main90119-08D17¥100

9030108019

main90301-08019¥200

9046022002

main90460-22002¥530

9046040007

main90460-40007¥190

9046712056

main90467-12056¥70

91626B0614

main91626-B0614¥60

9613251100

main96132-51100¥120

52 parts on this diagram · 7 diagrams in section
