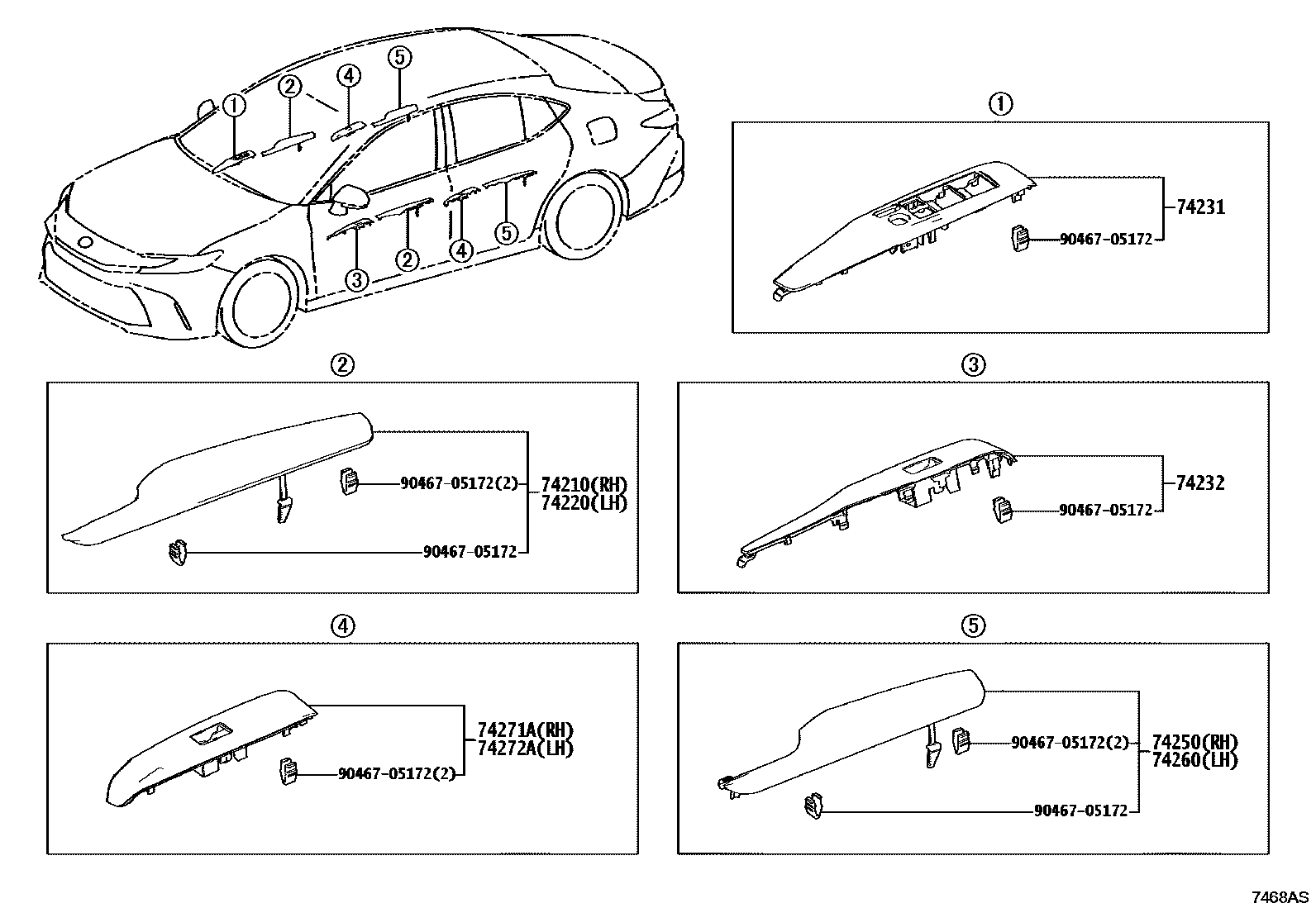

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#,4#
BLACK/DK.GRAY,TRIM2#
BLACK/SHELL NO.306,TRIM4#
BLACK/OCHRE,TRIM4#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#,4#
BLACK/DK.GRAY,TRIM2#
BLACK/SHELL NO.306,TRIM4#
BLACK/OCHRE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
74232PANEL, FRONT ARMREST BASE, UPPER LH
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
74250ARMREST ASSY, REAR RH
BLACK,TRIM2#,4#
BLACK/DK.GRAY,TRIM2#
BLACK/SHELL NO.306,TRIM4#
BLACK/OCHRE,TRIM4#
74260ARMREST ASSY, REAR LH
BLACK,TRIM2#,4#
BLACK/DK.GRAY,TRIM2#
BLACK/SHELL NO.306,TRIM4#
BLACK/OCHRE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
9046705172
main90467-05172
9 parts on this diagram · 3 diagrams in section
