SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXVA80,AXVH80,MXVA80202406

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAXVA80,AXVH80,MXVA80202406

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47282-C7iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK/BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAXVA80,AXVH80,MXVA80202406

73219STOPPER, TONGUE PLATE

main73219-33010iAXVA80,AXVH80,MXVA80202406

BLACK

main73219-33020iAXVA80,AXVH80,MXVA80202406

GRAY

main73219-33030iAXVA80,AXVH80,MXVA80202406

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47222-C7iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK/BLACK,TRIM2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33B00-C0iMXVA80;AXVH80..N..TAIW202406

BLACK,TRIM2#

main73230-33B30-C0supersedes 73230-33B30-C0iAXVH80..G..ARL202406

BLACK,TRIM2#

main73230-33B40-C0iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

BLACK,TRIM2#

main73230-33B10-C0supersedes 73230-33B20-C0iAXVH80..N..ARL202406

VALUE PACKAGE,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33B00-C0iAXVH80..N..ARL202406

BLACK,TRIM2#

main73230-33B10-C0iMXVA80..N202406

BLACK,TRIM2#

main73230-33B20-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main73230-33B30-C0iAXVH80..G..TAIW202406

BLACK,TRIM2#

main73230-33B40-C0supersedes 73230-33B40-C0iAXVH80..G..ARL202406

BLACK,TRIM2#

82711ECLAMP, WIRING HARNESS

main82711-33650iAXVA80,AXVH80,MXVA80202406

9010510523

main90105-10523

9010510611

main90105-10611

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

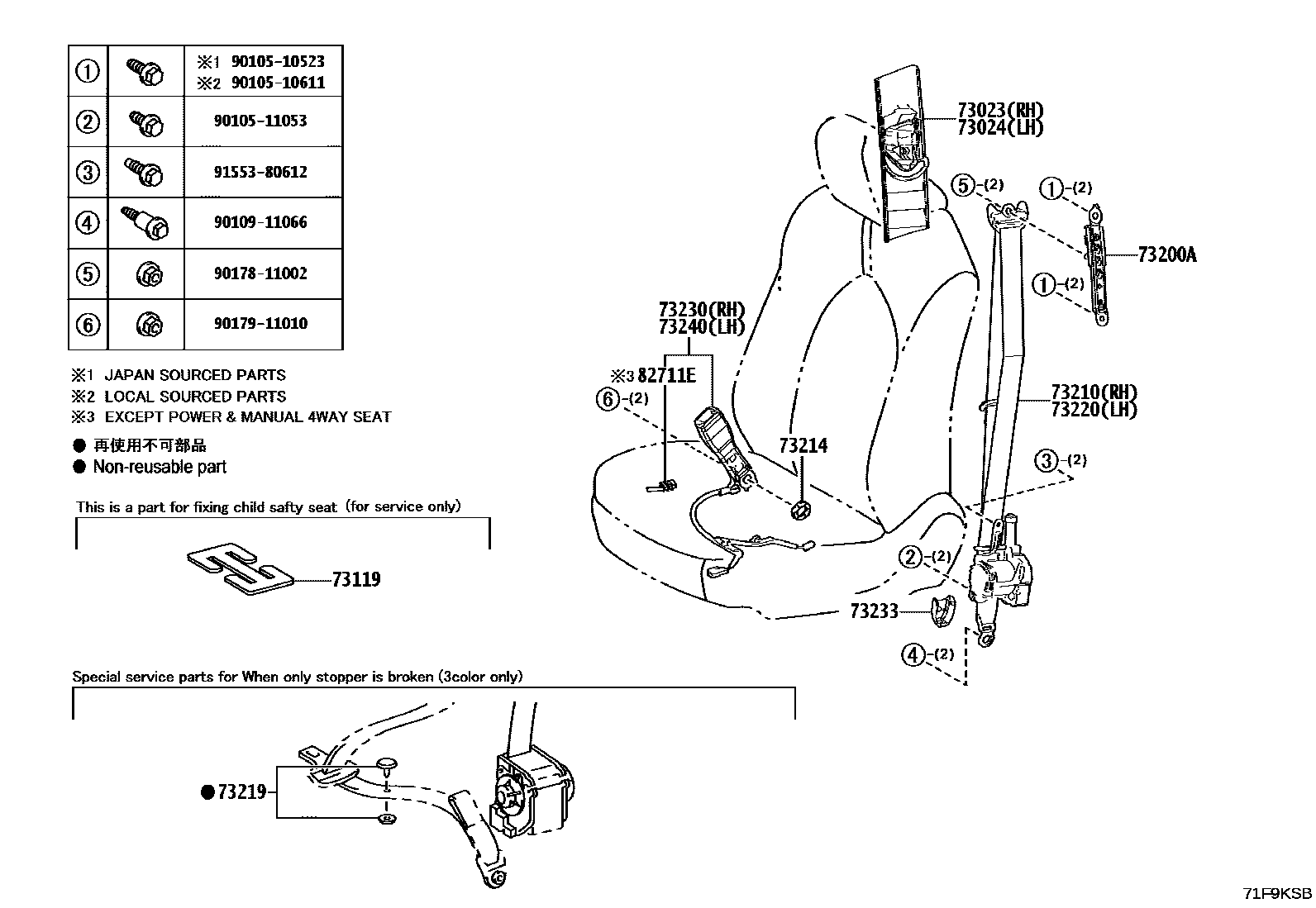

19 parts on this diagram · 2 diagrams in section
