REAR SEAT & SEAT TRACK

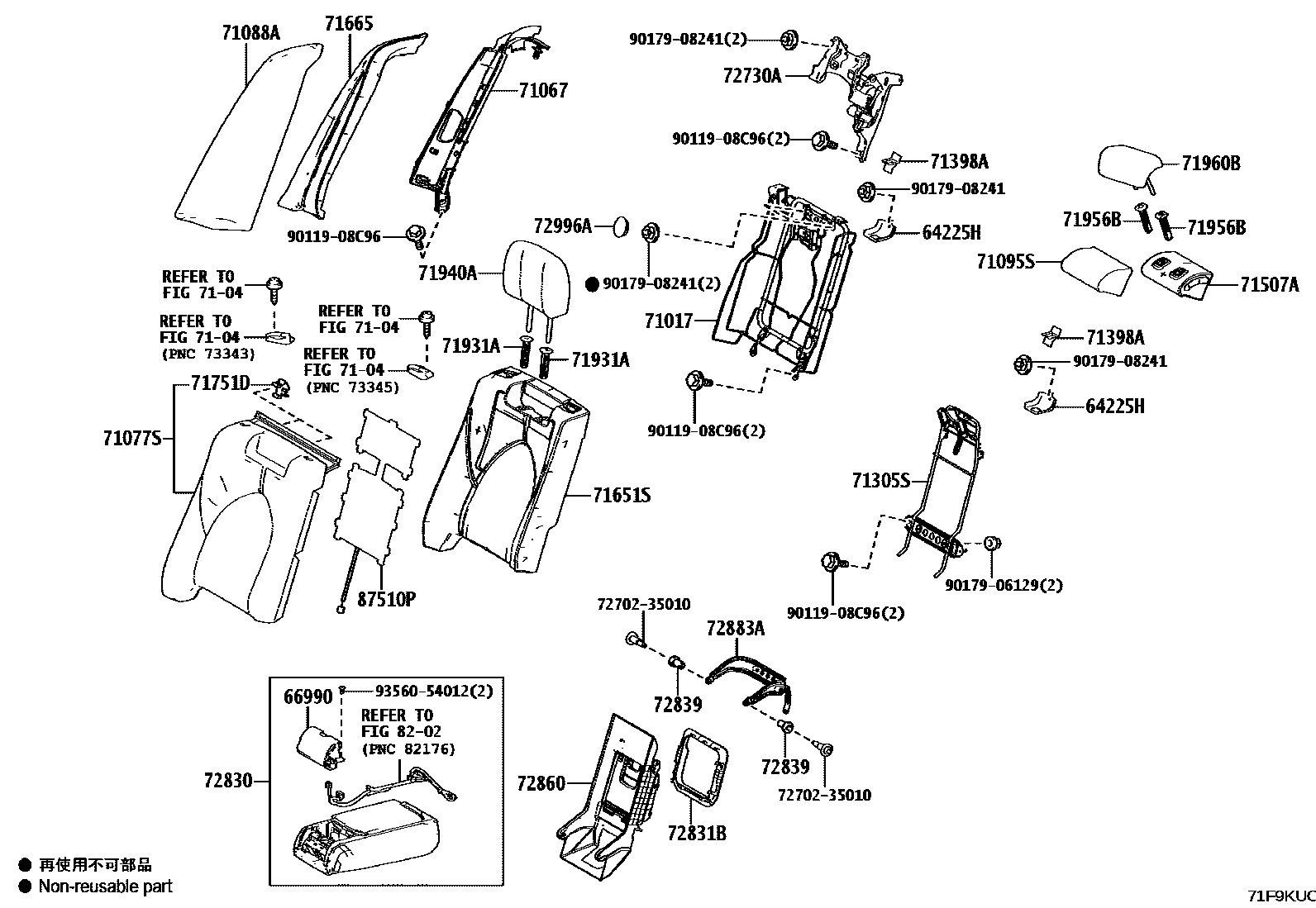

Parts diagram
64225HHANGER, REAR SEAT CUSHION SUPPORT
main64225-33050i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
main64225-33050i202412
REAR ARMREST-WITH(CUP HOLDER)
main64225-33050i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)
66990HOLDER ASSY, CUP
main66990-33010-C0i202406
BLACK,TRIM2#
main66990-33010-C0i202412
BLACK,TRIM0#,2#,4#
main66990-33010-C0i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
main72806-33100-C2i202406
BLACK,TRIM2#
main72806-33100-C2i202406
BLACK,TRIM2#,4#
main72806-33100-C2i202406-202412
BLACK,TRIM0#,2#,4#
main72806-33100-C2i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK,TRIM0#,2#,4#
main72806-33100-C2i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM0#,2#,4#
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-33231i202406
main71017-33241i202406-202412
HEATER PACKAGE
main71017-33241i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT
main71017-33241i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT
main71017-33250i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71017-33250i202412
7104
71067FRAME SUB-ASSY, REAR SIDE SEATBACK, RH
main71067-33030i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71067-33030i202412
main71067-33050i202406-202412
main71067-33050i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT
main71067-33050i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-33Q30-C4i202406
NEUTRAL BEIGE MELANGE,TRIM4#
main71077-33Q30-C5i202406
BLACK MELANGE,TRIM2#
main71077-33Q50-C4i202406
BLACK,TRIM2#
main71077-33Q60-C6i202406-202412
HEATER PACKAGE,BLACK,TRIM2#
main71077-33Q70-C5i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71077-33Q70-C5i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71077-33Q70-C5i202406-202412
BLACK,TRIM2#
main71077-33Q70-C7i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71077-33Q70-C7i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71077-33Q70-C7i202406-202412
OCHER,TRIM4#
main71077-33Q70-C9i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK/FROMAGE,TRIM0#
main71077-33Q70-C9i202406-202412
BLACK/FROMAGE,TRIM0#
main71077-33Q70-C9i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK/FROMAGE,TRIM0#
main71077-33Q80-A3i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK/FROMAGE,TRIM0#
main71077-33Q80-A3i202412
BLACK/FROMAGE,TRIM0#
main71077-33Q80-C5i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71077-33Q80-C5i202406
BLACK,TRIM2#
main71077-33Q80-E1i202412
OCHER,TRIM4#
main71077-33Q80-E1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main71077-33R00-A2i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK/FROMAGE,TRIM0#
main71077-33R00-C0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71077-33R00-E0i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK/OCHER,TRIM4#
71088ACOVER SUB-ASSY, REAR SIDE SEATBACK, RH
main71088-33550-C5i202406
BLACK,TRIM2#
main71088-33550-E5i202406
NEUTRAL BEIGE,TRIM4#
main71088-33560-A3i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main71088-33560-A3i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main71088-33560-A3i202406-202412
FROMAGE,TRIM0#
main71088-33560-C5i202406-202412
HEATER PACKAGE,BLACK,TRIM2#
main71088-33560-C5i202406-202412
BLACK,TRIM2#
main71088-33560-C5i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71088-33560-C5i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71088-33560-E6i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71088-33560-E6i202406-202412
OCHER,TRIM4#
main71088-33560-E6i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71088-33570-A3i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71088-33570-A3i202412
FROMAGE,TRIM0#
main71088-33570-C3i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71088-33570-C3i202406
BLACK,TRIM2#
main71088-33570-E2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main71088-33570-E2i202412
OCHER,TRIM4#
71095SCOVER SUB-ASSY, CENTER SEATBACK
main71096-33120-A2i202412
FROMAGE,TRIM0#
main71096-33120-A2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71096-33120-C1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71096-33120-C1i202406
BLACK,TRIM2#
main71096-33120-E1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main71096-33120-E1i202412
OCHER,TRIM4#
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-33100i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71305-33100i202412
71398AHOLDER, REAR SEATBACK
main71398-33010i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
main71398-33010i202412
71507APAD SUB-ASSY, REAR SEATBACK
main71507-33100i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71507-33100i202412
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-33280i202406
main71651-33290i202406-202412
HEATER PACKAGE
main71651-33290i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT
main71651-33290i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT
main71651-33300i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71651-33300i202412
71665PAD, REAR SEATBACK SIDE, RH
main71665-33080i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71665-33080i202412
main71665-33110i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT
main71665-33110i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT
main71665-33110i202406-202412
71751DHANGER, REAR SEAT COVER
main71751-33050i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main71751-33050i202412
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-A0i202406
W(LOCK),FROMAGE,TRIM0#
main71930-47050-C5i202406-202412
W(LOCK),HEATER PACKAGE,BLACK,TRIM2#
main71930-47050-C5i202406
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5i202406
W(LOCK),BLACK,TRIM2#
main71930-47050-E0i202406-202412
W(LOCK),HEATER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71931-47030-A0i202406
W/O(LOCK),FROMAGE,TRIM0#
main71931-47030-C4i202406-202412
W/O(LOCK),HEATER PACKAGE,BLACK,TRIM2#
main71931-47030-C4i202406
W/O(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202406
W/O(LOCK),BLACK,TRIM2#
main71931-47030-E0i202406-202412
W/O(LOCK),HEATER PACKAGE,NEUTRAL BEIGE,TRIM4#
71940AHEADREST ASSY, REAR SEAT
main71940-33B80-A2i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main71940-33B80-A2i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main71940-33B80-A2i202406-202412
FROMAGE,TRIM0#
main71940-33B80-C3i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71940-33B80-C3i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main71940-33B80-C3i202406-202412
BLACK,TRIM2#
main71940-33B80-C3i202406-202412
HEATER PACKAGE,BLACK,TRIM2#
main71940-33B80-E1i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71940-33B80-E1i202406-202412
OCHER,TRIM4#
main71940-33B80-E1i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main71940-33E00-A1i202412
FROMAGE,TRIM0#
main71940-33E00-A1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71940-33E00-C1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71940-33E00-C1i202406
BLACK,TRIM2#
main71940-33E00-E0i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main71940-33E00-E0i202412
OCHER,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-A0i202406-202412
W(LOCK),UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71930-47050-A0i202412
W(LOCK),FROMAGE,TRIM0#
main71930-47050-C5i202412
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5i202406-202412
W(LOCK),UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#,4#
main71930-47050-C5i202406
W(LOCK),BLACK,TRIM2#
main71931-47030-A0i202406-202412
W/O(LOCK),UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71931-47030-A0i202412
W/O(LOCK),FROMAGE,TRIM0#
main71931-47030-C4i202406
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4i202406-202412
W/O(LOCK),UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#,4#
main71931-47030-C4i202412
W/O(LOCK),BLACK,TRIM2#,4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-33120-A2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main71960-33120-A2i202412
FROMAGE,TRIM0#
main71960-33120-C2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main71960-33120-C2i202406
BLACK,TRIM2#
main71960-33120-E1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main71960-33120-E1i202412
OCHER,TRIM4#
72730AADJUSTER ASSY, REAR SEAT RECLINING, RH
main72730-33070i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
main72730-33070i202412
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33L30-C1i202406
BLACK,TRIM2#
main72830-33L30-E1i202406
NEUTRAL BEIGE,TRIM4#
main72830-33L40-A2i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main72830-33L40-A2i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,FROMAGE,TRIM0#
main72830-33L40-A2i202406-202412
FROMAGE,TRIM0#
main72830-33L40-C1i202406-202412
BLACK,TRIM2#
main72830-33L40-C1i202406-202412
HEATER PACKAGE,BLACK,TRIM2#
main72830-33L40-C1i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main72830-33L40-C1i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,BLACK,TRIM2#
main72830-33L40-E2i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main72830-33L40-E2i202406-202412
OCHER,TRIM4#
main72830-33L40-E2i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT,OCHER,TRIM4#
main72830-33L50-A4i202412
FROMAGE,TRIM0#
main72830-33L50-A4i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),FROMAGE,TRIM0#
main72830-33L50-C2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM2#
main72830-33L50-C2i202406
BLACK,TRIM2#
main72830-33L50-E2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),OCHER,TRIM4#
main72830-33L50-E2i202412
OCHER,TRIM4#
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
main72831-07030i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main72831-07030i202412
72839SHIM, REAR SEAT ARMREST HINGE
main72839-12010i202412
SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT& *PAS:4WAY POWER SEAT
main72839-12010i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main72839-12010i202412
REAR ARMREST-WITH(CUP HOLDER)&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT
72860BOX ASSY, REAR SEAT CENTER ARMREST
main72860-07100-C2i202406
BLACK,TRIM2#
main72860-07100-C2i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
main72860-07100-C2i202412
BLACK,TRIM0#,2#,4#
72883ABRACKET, REAR SEAT CENTER ARMREST, NO.1
main72883-33060i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
main72883-33060i202412
72996ACOVER, REAR SEATBACK
main72996-50100-03i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE),FROMAGE,TRIM00
sub72996-50100
main72996-50100-03i202412
FROMAGE,TRIM00
sub72996-50100
main72996-50100-C1i202406-202412
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE),BLACK,TRIM00,2#,4#
sub72996-50100
main72996-50100-C1i202406
BLACK,TRIM2#
sub72996-50100
main72996-50100-C1i202412
BLACK,TRIM00,2#,4#
sub72996-50100
8202
87510PHEATER ASSY, SEAT
main87530-33370i202406
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT)
7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-35010
9011908C96
main90119-08C96
9017906129
main90179-06129
9017908241
main90179-08241
9356054012
main93560-54012

32 parts on this diagram · 8 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
