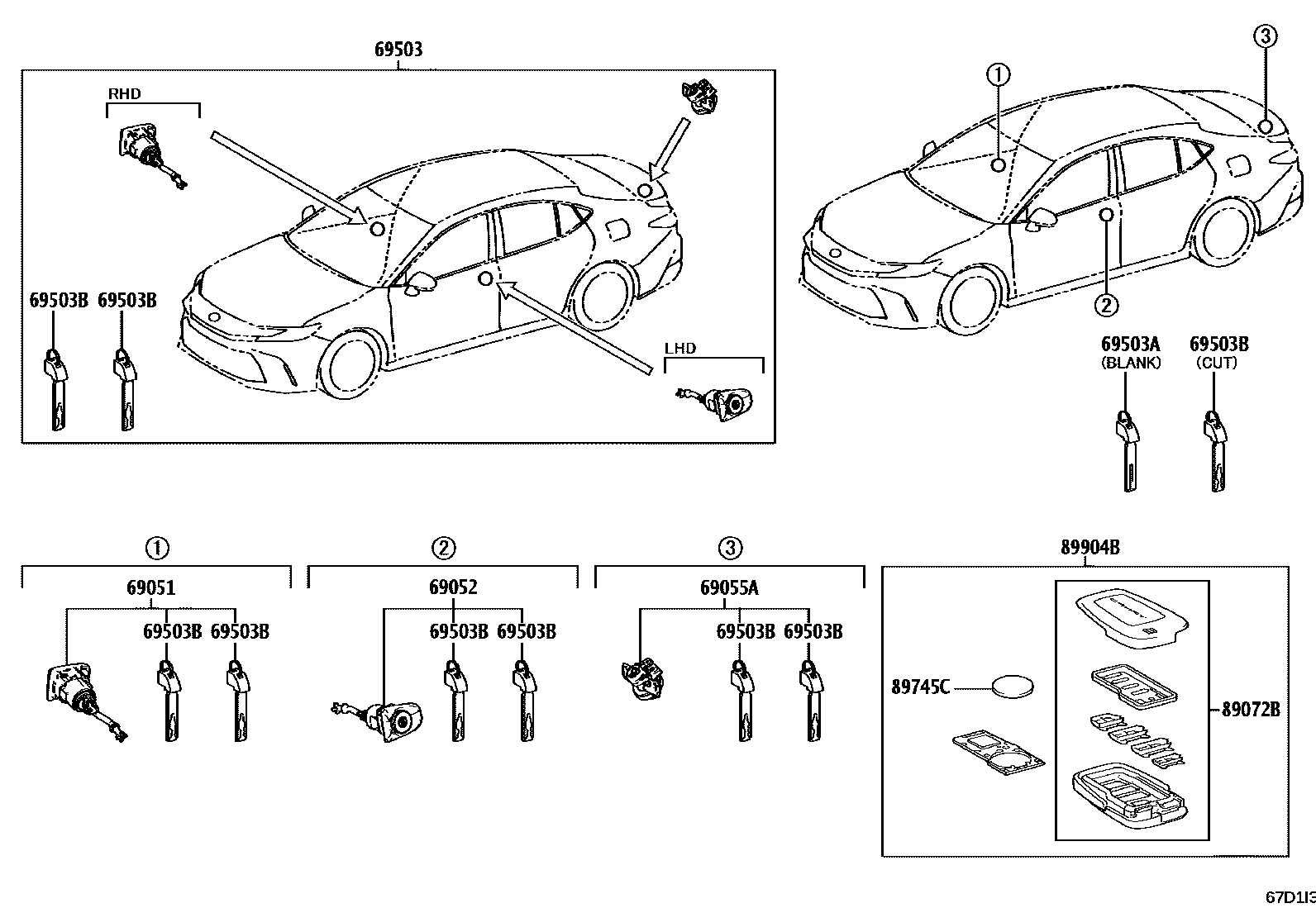

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33360iAXVH80..RHD202406

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33470iAXVA80,AXVH80,MXVA80..LHD202406

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33550iAXVA80,AXVH80,MXVA80202406

69503CYLINDER SET, LOCK

main69005-33F20iAXVH80..RHD202406

main69005-33F70iAXVA80,AXVH80,MXVA80..LHD202406

69503AKEY, BLANK

main69515-K0020iAXVA80,AXVH80,MXVA80202406

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010×5iAXVA80,AXVH80,MXVA80202406

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-33F60×2iAXVA80,AXVH80..EUR202406

main89072-33F80×2iAXVA80,AXVH80..GCC202406

main89072-33F90×2iAXVH80,MXVA80..ARL,TAIW202406

main89072-33F70×2iAXVH80..LHD..G..EUR202406

KOREA SPEC

89745CBATTERY, TRANSMITTER

main89745-K0010iAXVH80,MXVA80..ARL,TAIW202406

CR2450

main89745-K0020iAXVA80,AXVH80..EUR,GCC202406

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-33190iAXVA80,AXVH80..EUR202406

main8990H-33210iAXVA80,AXVH80..GCC202406

main8990H-33220iAXVH80..ARL202406

main8990H-33240iAXVH80,MXVA80..TAIW202406

main8990H-33200iAXVH80..LHD..G..EUR202406

KOREA SPEC

9 parts on this diagram · 1 diagram in section
