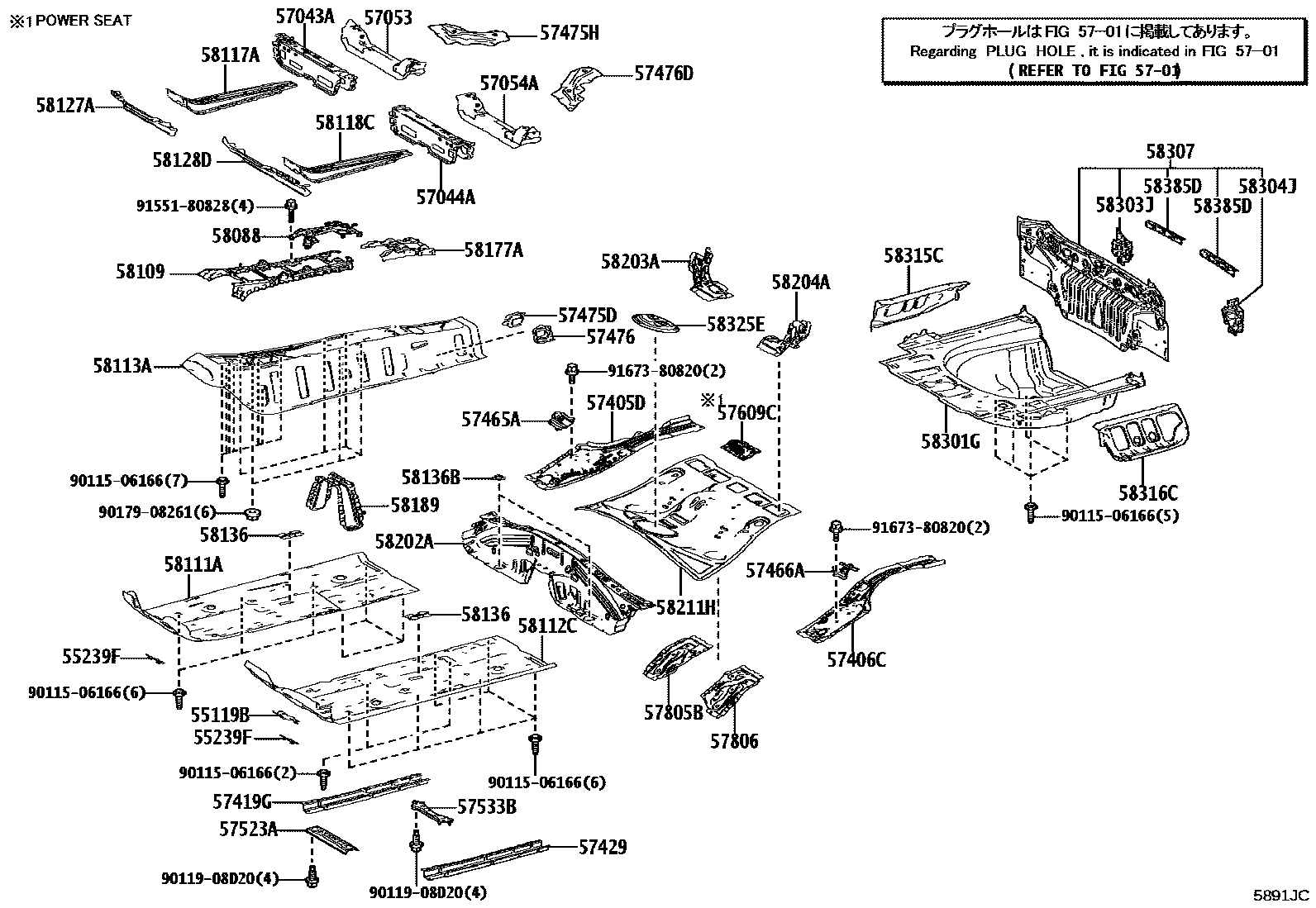

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

55119BEXTENSION, DASH PANEL, LH

main55119-33030iAXVA80,AXVH80,MXVA80..LHD202406

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-33030iAXVA80,AXVH80,MXVA80¥270202406

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-33080iAXVA80,AXVH80,MXVA80202406

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-33080iAXVA80,AXVH80,MXVA80202406

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-33080iAXVA80,AXVH80,MXVA80202406

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-33120iAXVA80,AXVH80,MXVA80202406

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-33040iAXVA80,AXVH80,MXVA80202406

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-33040iAXVA80,AXVH80,MXVA80202406

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33080iAXVA80,AXVH80,MXVA80¥3,050202406

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-33080iAXVA80,AXVH80,MXVA80¥3,050202406

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-33021iAXVA80,AXVH80,MXVA80¥880202406

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-33010iAXVA80,AXVH80,MXVA80¥880202406

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33020iAXVA80,AXVH80,MXVA80¥950202406

57475HPLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH

main57457-33040iAXVA80,AXVH80,MXVA80202406

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33020iAXVA80,AXVH80,MXVA80¥950202406

57476DPLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH

main57458-33030iAXVA80,AXVH80,MXVA80202406

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-33010iAXVA80,AXVH80,MXVA80¥1,740202406

57533BBRACE, FRONT FLOOR, CENTER

main57533-33040iAXVA80,AXVH80,MXVA80¥1,320202406

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-33040iAXVH80..G..TAIW¥3,880202406

UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)

main57609-33040iAXVH80..RHD..EUR¥3,880202412

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-33020iAXVA80,MXVA80202406

main57805-33030iAXVH80¥1,920202406

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-33030iAXVH80¥1,920202406

main57806-33020iAXVA80,MXVA80202406

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-33030iAXVA80,AXVH80,MXVA80..LHD202406

main58088-33040iAXVH80..RHD202406

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-33011iAXVA80,AXVH80,MXVA80¥4,460202406

58111APAN, FRONT FLOOR, RH

main58111-33130iAXVA80,AXVH80,MXVA80¥17,300202406

58112CPAN, FRONT FLOOR, LH

main58112-33070iAXVA80,AXVH80,MXVA80¥20,100202406

58113APANEL, FRONT FLOOR, CENTER

main58113-33050iAXVA80,AXVH80,MXVA80¥25,500202406

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-33040iAXVA80,AXVH80,MXVA80202406

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-33010iAXVA80,AXVH80,MXVA80¥5,900202406

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-33070iAXVA80,AXVH80,MXVA80202406

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-33060iAXVA80,AXVH80,MXVA80202406

58136COVER, FRONT FLOOR HOLE

main58136-33010iAXVA80,AXVH80,MXVA80¥230202406

58136BCOVER, CENTER FLOOR HOLE

main58136-33020iAXVA80,AXVH80,MXVA80¥200202406

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-33011iAXVA80,AXVH80,MXVA80¥1,720202406

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33080iAXVA80,AXVH80,MXVA80¥4,110202406

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-33030iAXVH80¥14,400202406

main58202-33040iAXVA80,MXVA80202406

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-33040iAXVA80,AXVH80,MXVA80¥2,350202406

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-33040iAXVA80,AXVH80,MXVA80¥2,350202406

58211HPAN, CENTER FLOOR

main58211-33191iAXVA80,MXVA80202406

main58211-33201iAXVH80¥11,400202406

58301GPAN SUB-ASSY, REAR FLOOR

main58301-33907iAXVA80,AXVH80,MXVA80¥25,500202406

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-33040iAXVA80,AXVH80,MXVA80¥1,870202406

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-33030iAXVA80,AXVH80,MXVA80¥1,870202406

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-33180iAXVA80,AXVH80,MXVA80¥12,900202406

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-33010iAXVA80,MXVA80202406

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-33030iAXVA80,AXVH80,MXVA80¥2,900202406

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33080iAXVA80,MXVA80202406

main58325-33090iAXVH80¥1,320202406

58385DBRACKET, REAR BUMPER COVER

main58385-33060iAXVA80,AXVH80,MXVA80¥790202406

9011506166

main90115-06166¥90

9011908D20

main90119-08D20¥80

9017908261

main90179-08261¥260

9155180828

main91551-80828¥80

9167380820

main91673-80820¥80

52 parts on this diagram · 3 diagrams in section
