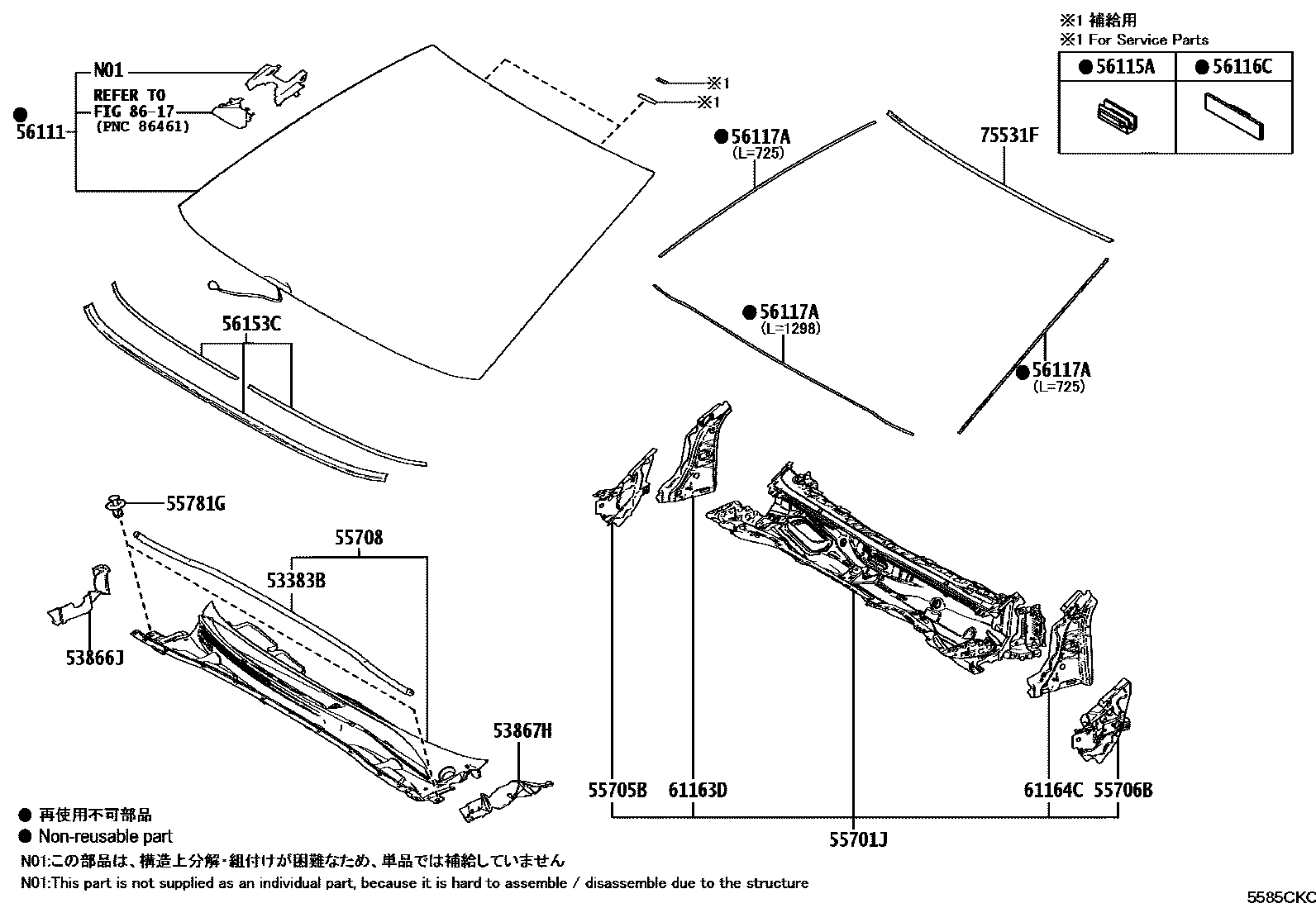

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-33140iAXVA80,AXVH80,MXVA80202406

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33090iAXVA80,AXVH80,MXVA80..LHD202406

main53866-33100iAXVH80..RHD202406

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33090iAXVA80,AXVH80,MXVA80..LHD202406

main53867-33100iAXVH80..RHD202406

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33260iAXVH80..ARL202406

main55701-33270supersedes 55701-33250iAXVH80..LHD..EUR202406

KAZAKHSTAN SPEC

main55701-33280iAXVH80..RHD..EUR202406

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-33040iAXVA80,AXVH80,MXVA80202406

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-33040iAXVA80,AXVH80,MXVA80202406

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-33282iAXVH80..RHD202406

main55708-33302iAXVA80,AXVH80,MXVA80..LHD202406

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iAXVA80,AXVH80,MXVA80202406

56111GLASS, WINDSHIELD

main56101-3Y983iAXVH80..N..ARL202406

main56101-3Y985iAXVA80,AXVH80..N..GCC202406

main56101-3Y986iMXVA80..G202406

main56101-3Y987iAXVH80,MXVA80..N..TAIW202406

main56101-3Y988iAXVA80,AXVH80..D202406

main56101-3Y993iAXVH80..G..TAIW202406

main56101-3Y997iAXVH80..G..ARL202406

main56103-33901iAXVA80,AXVH80..G..GCC202406

main56101-3Y990iAXVA80..G..EUR202406

LIBYA SPEC

main56101-3Y992iAXVH80..LHD..G..EUR202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

main56101-3Y995iAXVH80..G..GCC202406

UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH&AUDIO-12.3INCH & JBL 9SPEAKER

main56101-3Y996supersedes 56101-3Y997iAXVH80..RHD..EUR202406-202412

PAPUA NEW GUINEA, FIJI SPEC

main56101-3Y998supersedes 56101-3Y997iAXVH80..RHD..EUR202412

SRI LANKA SPEC&&HEAD UP DISPLAY-WITHOUT&AUDIO-8INCH 6SPEAKER

main56101-3Y999supersedes 56101-3Y991iAXVA80..G..EUR202406

EGYPT SPEC

main56103-33900iAXVH80..LHD..G..EUR202406

UKRAINE SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iAXVA80,AXVH80,MXVA80202406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXVA80,AXVH80,MXVA80202406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAXVA80..G..EUR202406

*D,L=1298 OR 725,KOREA SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33070iAXVA80,AXVH80,MXVA80202406

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-33020iAXVH80..LHD..G..EUR202406

ISRAEL SPEC

main61163-33030iAXVH80..LHD..EUR202406

KAZAKHSTAN SPEC

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-33020iAXVH80..LHD..G..EUR202406

ISRAEL SPEC

main61164-33030iAXVH80..LHD..EUR202406

KAZAKHSTAN SPEC

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-33150iAXVA80,AXVH80,MXVA80202406

8617

17 parts on this diagram · 2 diagrams in section
