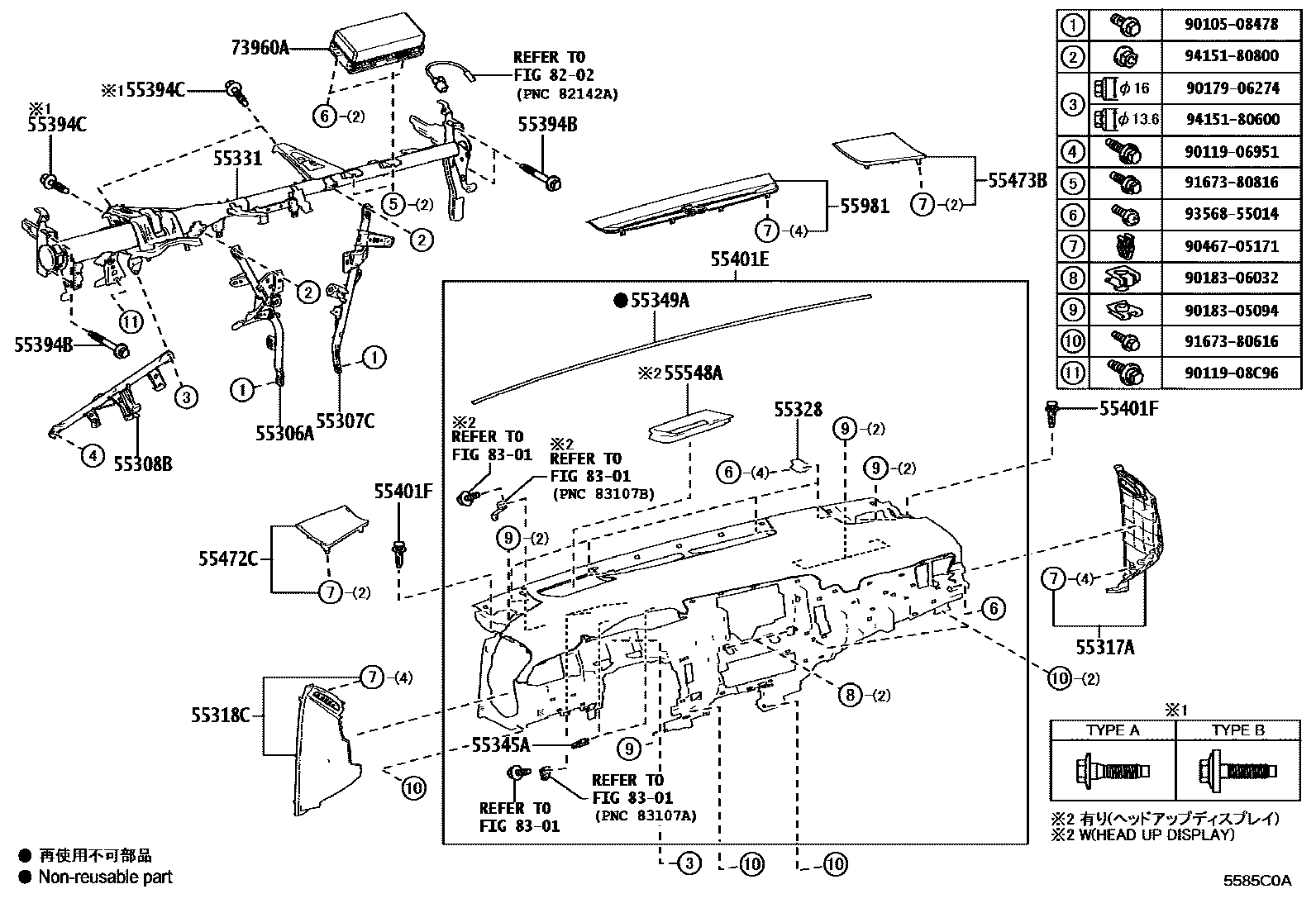

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33240iAXVA80,AXVH80,MXVA80..LHD202406

main55306-33250iAXVH80..RHD202406

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33271iAXVA80,AXVH80,MXVA80..LHD202406

main55307-33281iAXVH80..RHD202406

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-33150iAXVH80..RHD202406

main55308-33160iAXVA80,AXVH80,MXVA80..LHD202406

55317APANEL, INSTRUMENT SIDE, RH

main55317-33330-C0iAXVA80,AXVH80..LHD..G..(EUR,GCC)202406

BLACK,TRIM2#

main55317-33330-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main55317-33330-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main55317-33340-C0iAXVH80..ARL202406

BLACK,TRIM2#

main55317-33340-C0iAXVH80..ARL202406

BLACK,TRIM0#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-33270-C0iAXVH80,MXVA80..TAIW202406

BLACK,TRIM0#,2#,4#

main55318-33270-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main55318-33270-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main55318-33280-C0iAXVH80..ARL202406

BLACK,TRIM2#

main55318-33280-C0iAXVH80..ARL202406

BLACK,TRIM0#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iAXVA80,AXVH80,MXVA80202406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33530iAXVH80..LHD..G..EUR202406

KOREA SPEC

main55330-33540iAXVH80..RHD202406

main55330-33550iAXVA80,AXVH80,MXVA80..LHD202406

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iAXVA80,AXVH80,MXVA80202406

55349ACUSHION, INSTRUMENT PANEL

main55349-33060iAXVA80,AXVH80,MXVA80202406

55394BBOLT, INSTRUMENT PANEL

main90105-08473iAXVA80,AXVH80,MXVA80202406

55394CBOLT, INSTRUMENT PANEL

main90105-08526iAXVA80,AXVH80,MXVA80202406

TYPE A:REFER ILLUST.

main90119-08D16iAXVA80,AXVH80,MXVA80202406

TYPE B:REFER ILLUST.

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33520-C1iAXVA80,AXVH80..LHD..G..(EUR,GCC)202406

SOFT BLACK,TRIM2#,4#

main55401-33520-C1iAXVA80,AXVH80..LHD..G..(EUR,GCC)202406

SOFT BLACK,TRIM0#,2#,4#

main55401-33520-C1iAXVA80,AXVH80..LHD..G..(EUR,GCC)202406

SOFT BLACK,TRIM2#

main55401-33530-C1iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

UPPER GRADE PACKAGE,SOFT BLACK,TRIM0#,2#,4#

main55401-33530-C1iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC)202406

SOFT BLACK,TRIM2#

main55401-33540-C1iAXVH80..RHD..EUR202412

SRI LANKA SPEC&,SOFT BLACK,TRIM0#,2#,4#

main55401-33540-C1iAXVH80..RHD..EUR202406-202412

SOFT BLACK,TRIM0#,2#,4#

main55401-33540-C1iAXVH80..N..ARL202406

SOFT BLACK,TRIM2#

main55401-33550-C1iAXVH80..G..ARL202406

SOFT BLACK,TRIM2#

main55401-33550-C1iAXVH80..RHD..EUR202412

SOFT BLACK,TRIM0#,2#,4#

main55401-33550-C1iAXVH80..RHD..EUR202406-202412

UPPER GRADE PACKAGE,SOFT BLACK,TRIM0#,2#,4#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iAXVA80,AXVH80,MXVA80202406

sub52161-0K040

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-33231iAXVH80..RHD202406

main55472-33280iAXVA80,AXVH80,MXVA80..LHD202406

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-33101iAXVH80..RHD202406

main55473-33130iAXVA80,AXVH80,MXVA80..LHD202406

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-33091iAXVH80..G..ARL202406

main55548-33091iAXVH80..RHD..EUR202406-202412

UPPER GRADE PACKAGE

main55548-33130iAXVH80..G..TAIW202406

UPPER GRADE PACKAGE

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33250iAXVA80,AXVH80,MXVA80..LHD202406

main55981-33260iAXVH80..RHD202406

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33260iAXVA80;AXVH80..GCC;AXVH80..RHD..EUR202406

main73960-33280iMXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,TAIW);AXVH80..N..(ARL,EUR,TAIW)202406

8202

8301

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9017906274

main90179-06274

9018305094

main90183-05094

9018306032

main90183-06032

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

32 parts on this diagram · 8 diagrams in section
