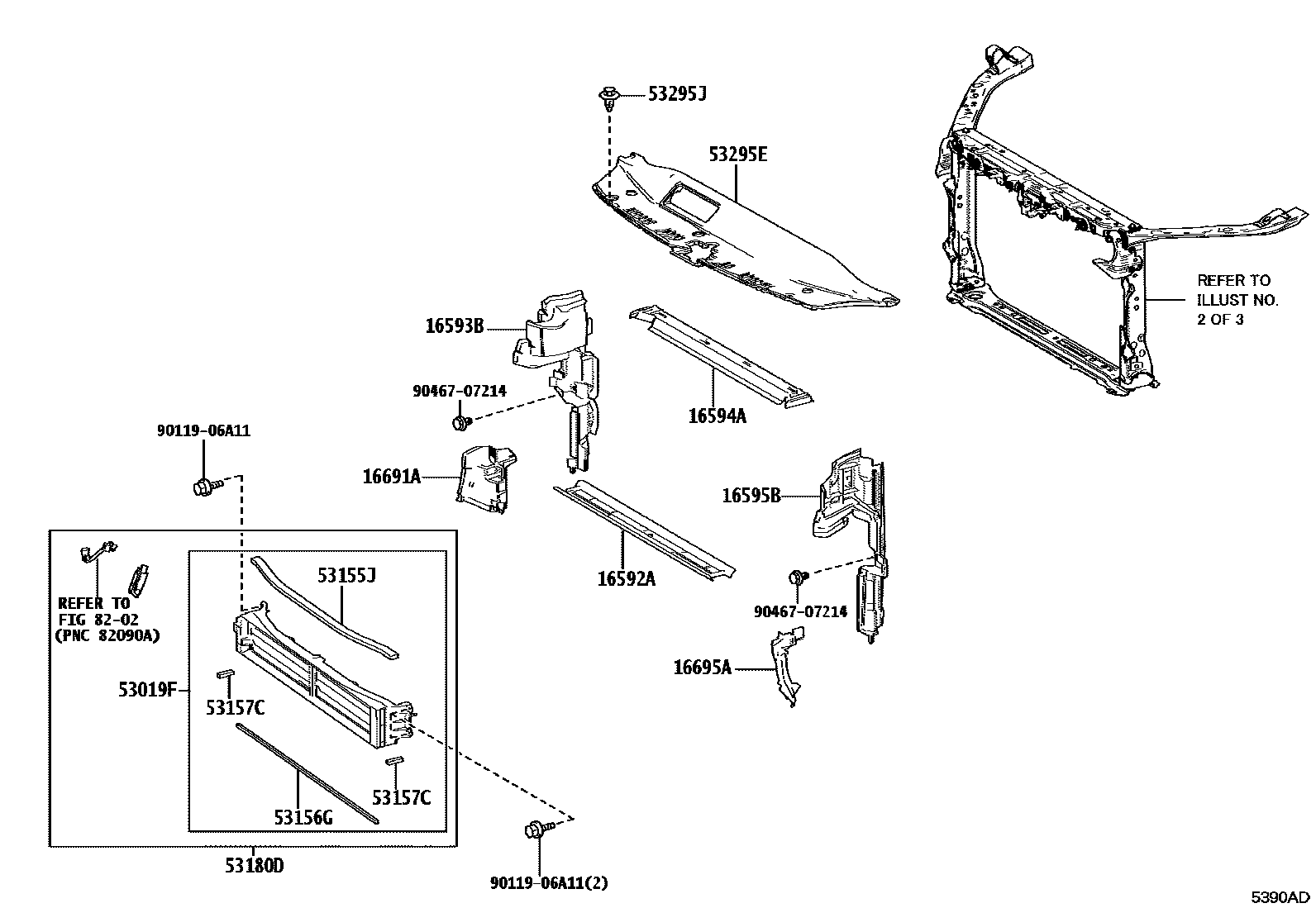

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL 0005 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010iA25,M20..AXVA80,AXVH80,MXVA80202406

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25430iA25..AXVH80..ARL,EUR,TAIW202406

main16593-25440iA25..AXVH80..GCC;A25,M20..AXVA80,MXVA80202406

main16593-25540iA25..AXVA80..D202406

HEAVY PACKAGE

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25010iA25,M20..AXVA80,AXVH80,MXVA80202406

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25410iA25..AXVH80..ARL,EUR,TAIW202406

main16595-25420iA25..AXVH80..GCC;A25,M20..AXVA80,MXVA80202406

main16595-25510iA25..AXVA80..D202406

HEAVY PACKAGE

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25200iA25,M20..AXVA80,AXVH80,MXVA80202406

main16691-25230iA25..AXVA80..D202406

HEAVY PACKAGE

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25210iA25,M20..AXVA80,AXVH80,MXVA80202406

main16695-25110iA25..AXVA80..D202406

HEAVY PACKAGE

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAXVH80..ARL,EUR,TAIW202406

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAXVH80..ARL,EUR,TAIW202406

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAXVH80..ARL,EUR,TAIW202406

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010×2iAXVH80..ARL,EUR,TAIW202406

53180DSHUTTER ASSY, RADIATOR

main53180-33092iAXVH80..ARL,EUR,TAIW202406

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33180iAXVA80,AXVH80,MXVA80202406

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217×5iAXVA80,AXVH80,MXVA80202406

8202

9011906A11

main90119-06A11

9046707214

main90467-07214

16 parts on this diagram · 5 diagrams in section
