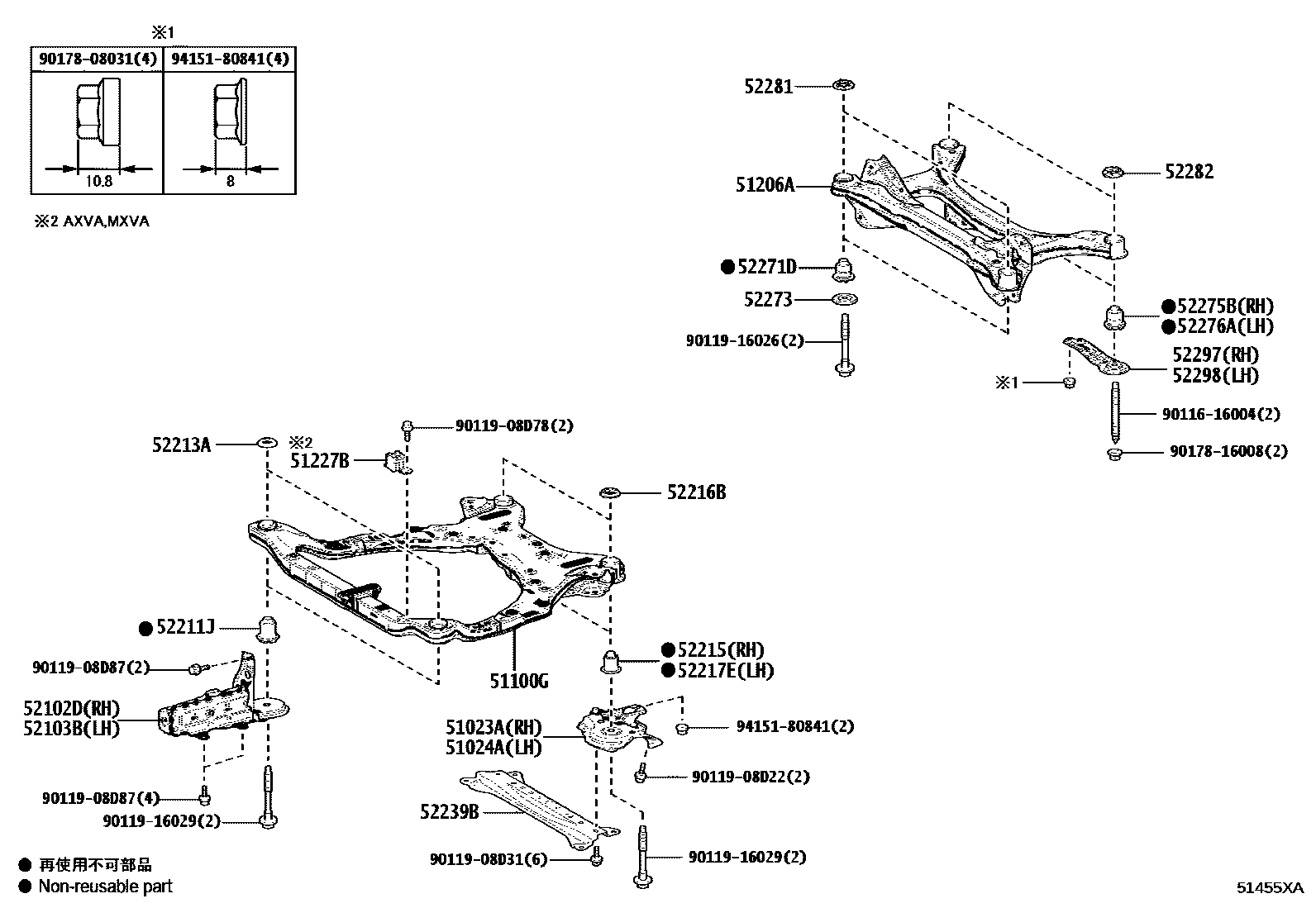

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0003 1UNDER COVER 0004 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33070iAXVA80,AXVH80,MXVA80202406

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33080iAXVA80,AXVH80,MXVA80202406

51100GFRAME ASSY, FRONT

main51100-33130iAXVA80,AXVH80,MXVA80202406

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33120iAXVA80,AXVH80,MXVA80202406

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33120iAXVA80,MXVA80202406

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-33010iAXVA80,AXVH80,MXVA80202406

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-33010iAXVA80,AXVH80,MXVA80202406

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100iAXVA80,AXVH80,MXVA80202406

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33100iAXVA80,AXVH80,MXVA80202406

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iAXVA80,AXVH80,MXVA80202406

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33090iAXVA80,AXVH80,MXVA80202406

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iAXVA80,AXVH80,MXVA80202406

52239BPLATE, BODY MOUNTING

main52239-33020iAXVA80,AXVH80,MXVA80202406

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33070iAXVA80,AXVH80,MXVA80202406

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030iAXVA80,AXVH80,MXVA80202406

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-33080iAXVA80,AXVH80,MXVA80202406

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-33010iAXVA80,AXVH80,MXVA80202406

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iAXVA80,AXVH80,MXVA80202406

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33060iAXVA80,AXVH80,MXVA80202406

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-33020iAXVA80,AXVH80,MXVA80202406

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-33020iAXVA80,AXVH80,MXVA80202406

9011616004

main90116-16004

9011908D22

main90119-08D22

9011908D31

main90119-08D31

9011908D78

main90119-08D78

9011908D87

main90119-08D87

9011916026

main90119-16026

9011916029

main90119-16029

9017808031

main90178-08031

9017816008

main90178-16008

9415180841

main94151-80841

31 parts on this diagram · 4 diagrams in section
