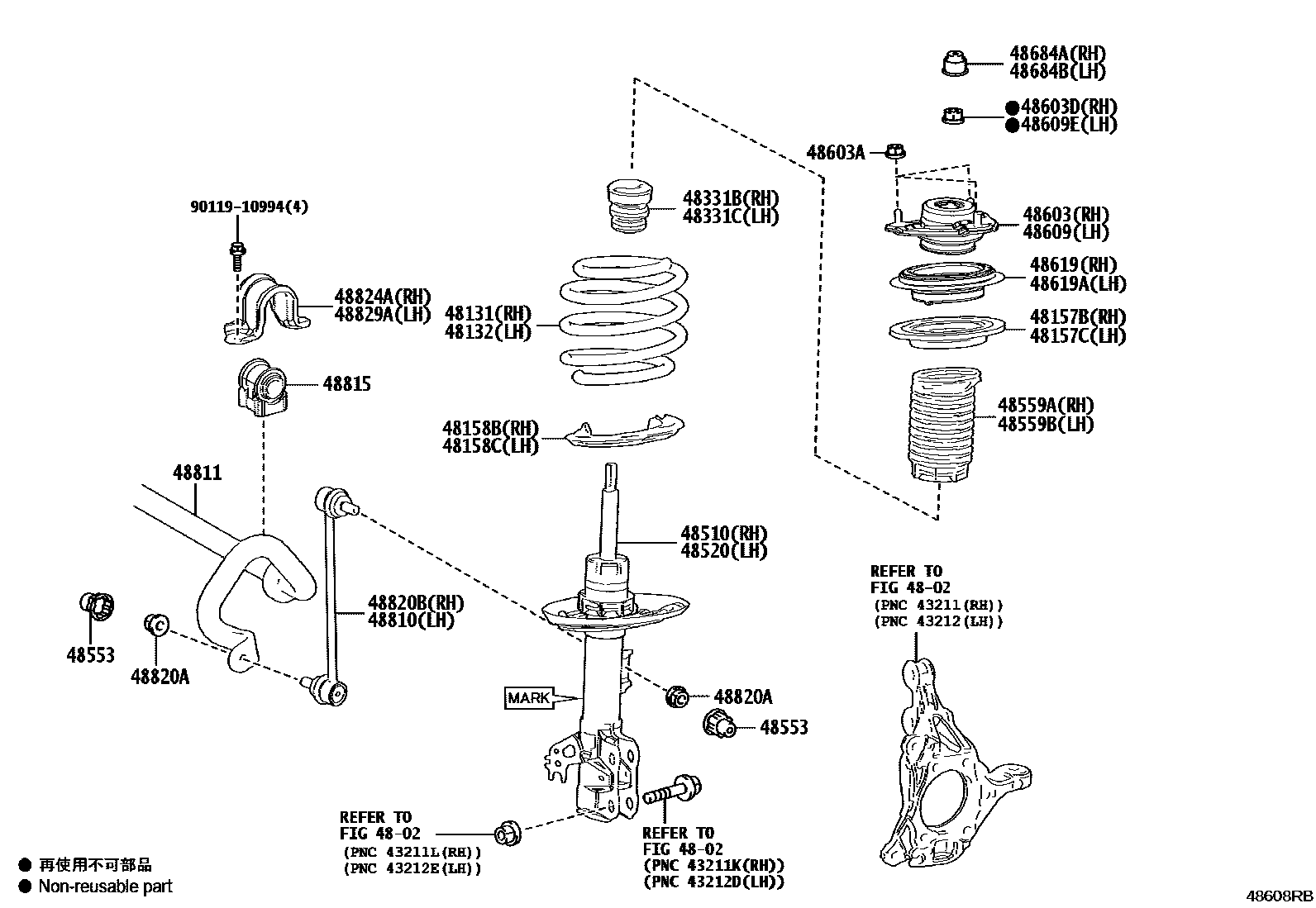

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
main48131-33E10iAXVH80..D,N;AXVH80..LHD..G..EUR;AXVA80,MXVA80..GCC,TAIW;AXVH80..G..(ARL,GCC,TAIW)202406
KOREA SPEC
main48131-33E10iAXVH80..D,N;AXVH80..LHD..G..EUR;AXVA80,MXVA80..GCC,TAIW;AXVH80..G..(ARL,GCC,TAIW)202406
ISRAEL SPEC
YEMEN SPEC
IRAQ SPEC
MOLDOVA SPEC
UKRAINE SPEC
CAUCASUS SPEC
KAZAKHSTAN SPEC
KYRGYZSTAN SPEC
ARMENIA SPEC
IRAQ SPEC
48132SPRING, FRONT COIL, LH
main48131-33E10iAXVH80..D,N;AXVH80..LHD..G..EUR;AXVA80,MXVA80..GCC,TAIW;AXVH80..G..(ARL,GCC,TAIW)202406
KOREA SPEC
main48131-33E10iAXVH80..D,N;AXVH80..LHD..G..EUR;AXVA80,MXVA80..GCC,TAIW;AXVH80..G..(ARL,GCC,TAIW)202406
ISRAEL SPEC
YEMEN SPEC
IRAQ SPEC
MOLDOVA SPEC
UKRAINE SPEC
CAUCASUS SPEC
KAZAKHSTAN SPEC
KYRGYZSTAN SPEC
ARMENIA SPEC
IRAQ SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-33C10
MARK 48510-33C20
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-33C10
MARK 48520-33C20
48553CAP, SHOCK ABSORBER, UPPER
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
MOLDOVA SPEC
UKRAINE SPEC
CAUCASUS SPEC
KOREA SPEC
ISRAEL SPEC
EGYPT SPEC
LIBYA SPEC
KAZAKHSTAN SPEC
KYRGYZSTAN SPEC
ARMENIA SPEC
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
MOLDOVA SPEC
UKRAINE SPEC
CAUCASUS SPEC
KOREA SPEC
ISRAEL SPEC
EGYPT SPEC
LIBYA SPEC
KAZAKHSTAN SPEC
KYRGYZSTAN SPEC
ARMENIA SPEC
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
MOLDOVA SPEC
EGYPT SPEC
LIBYA SPEC
48815BUSH, FRONT STABILIZER BAR, NO.1
MOLDOVA SPEC
EGYPT SPEC
LIBYA SPEC
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910994
main90119-10994
31 parts on this diagram · 1 diagram in section
