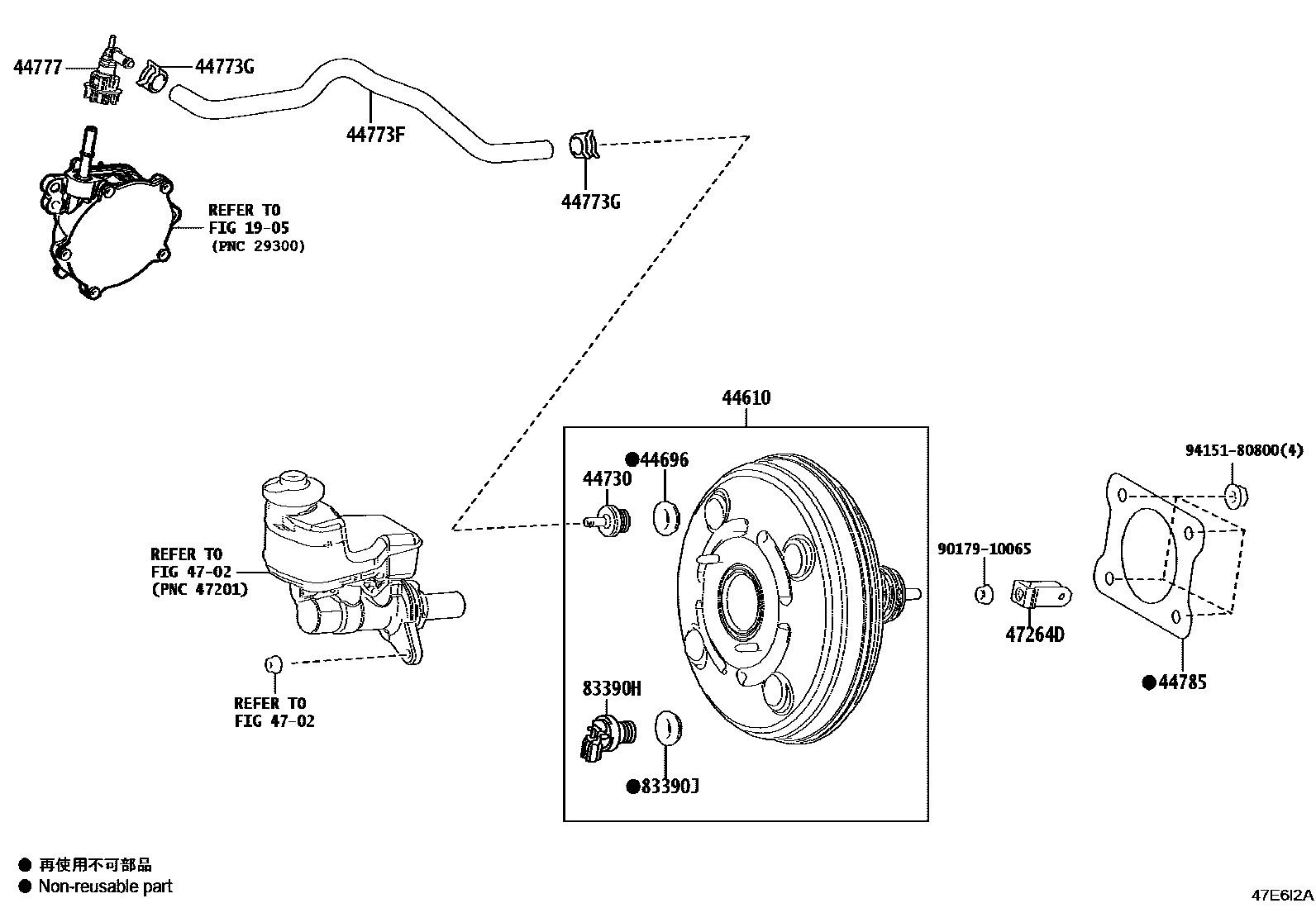

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-33C30iAXVA80,MXVA80202406

44696GROMMET, CHECK VALVE

main90480-24439iAXVA80,MXVA80202406

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iAXVA80,MXVA80202406

44773FHOSE, UNION TO CHECK VALVE

main44773-33260iAXVA80,MXVA80202406

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAXVA80,MXVA80202406

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXVA80,MXVA80202406

44785GASKET, BRAKE BOOSTER

main44785-12040iAXVA80,MXVA80202406

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iAXVA80,MXVA80202406

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXVA80,MXVA80202406

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iAXVA80,MXVA80202406

9017910065

main90179-10065

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
