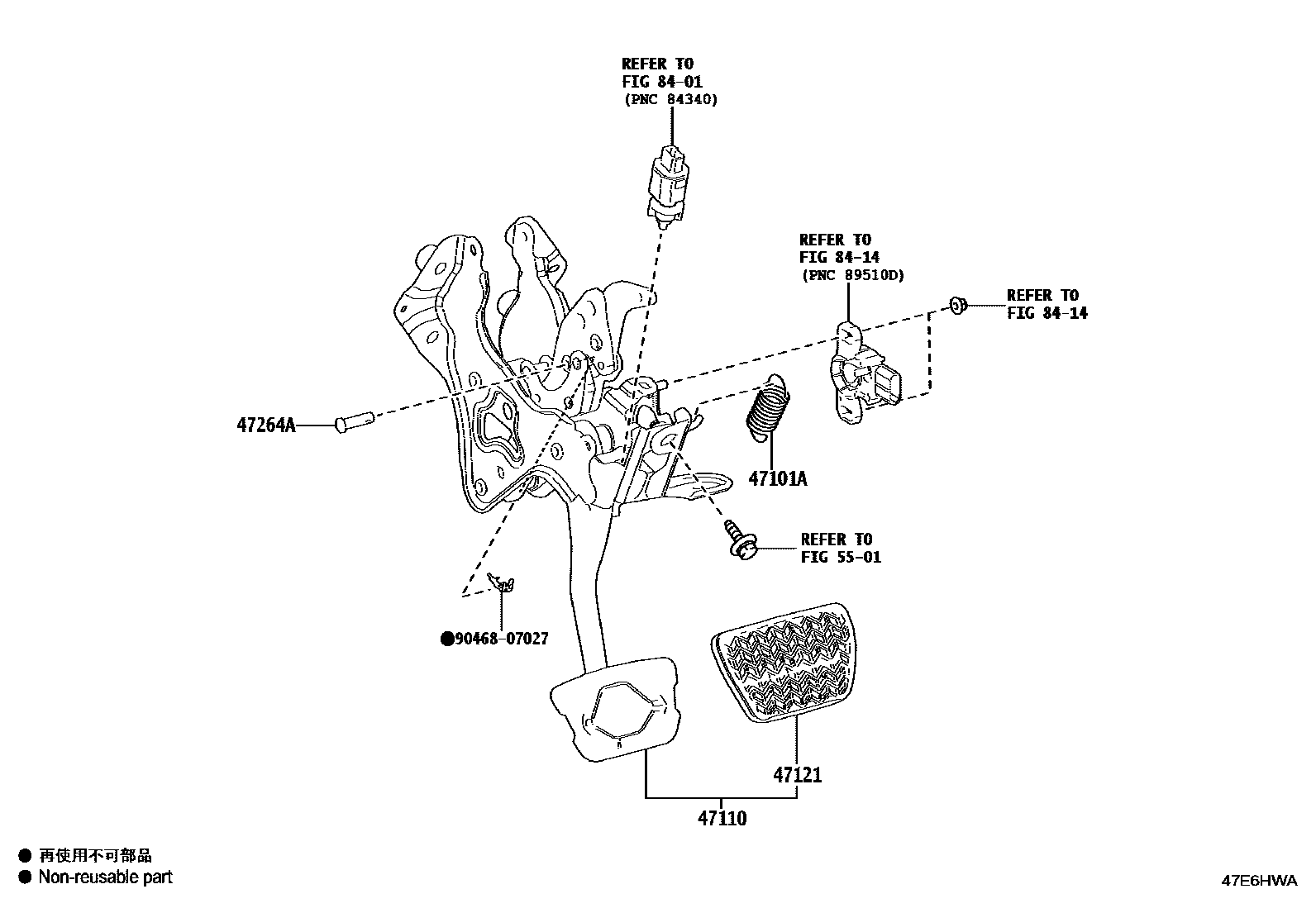

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXVA80,MXVA80202406

main90507-21003iAXVH80202406

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30620iAXVH80..RHD202406

main47110-33341iAXVA80,MXVA80202406

main47110-33371iAXVH80..LHD202406

47121PAD, BRAKE PEDAL

main47121-62010iAXVA80,AXVH80,MXVA80202406

47264APIN(FOR PUSH ROD)

main90240-08078iAXVA80,AXVH80,MXVA80202406

5501

8401

8414

9046807027

main90468-07027

8 parts on this diagram · 2 diagrams in section
