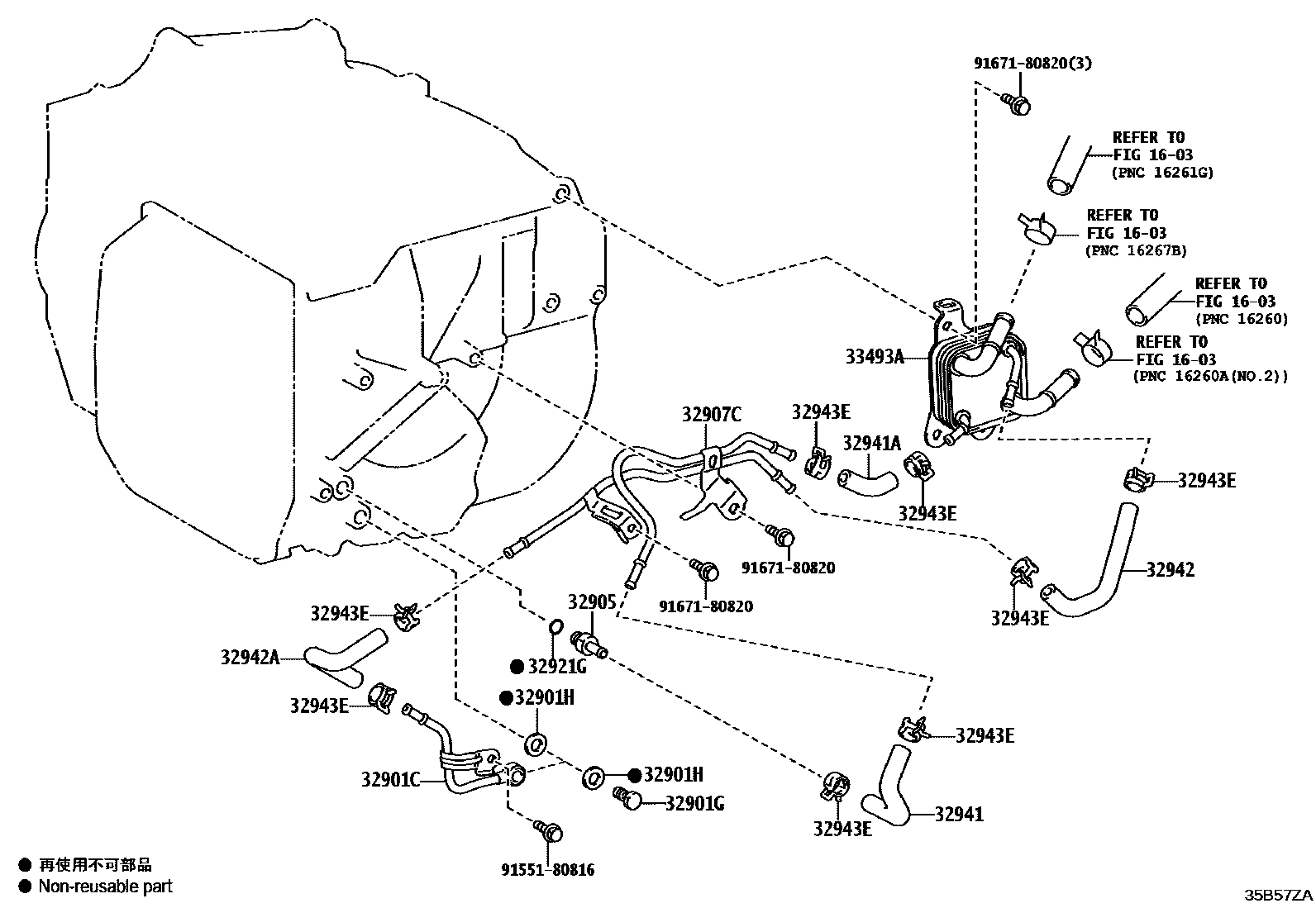

OIL COOLER & TUBE (ATM)

0001 1UB80E 0002 1UB80E,HEAVY PACKAGE

1603

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iAXVA80202406

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAXVA80202406

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016iAXVA80202406

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iAXVA80202406

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-42070iAXVA80202406

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAXVA80202406

32941HOSE, OIL COOLER INLET, NO.1

main32941-42170iAXVA80202406

32941AHOSE, OIL COOLER INLET, NO.2

main32941-33190iAXVA80202406

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-33230iAXVA80202406

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-33240iAXVA80202406

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-33320iAXVA80..D202406

HEAVY PACKAGE

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004iAXVA80202406

HEAVY PACKAGE

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33061iAXVA80202406

9155180816

main91551-80816

9167180820

main91671-80820

16 parts on this diagram · 2 diagrams in section
