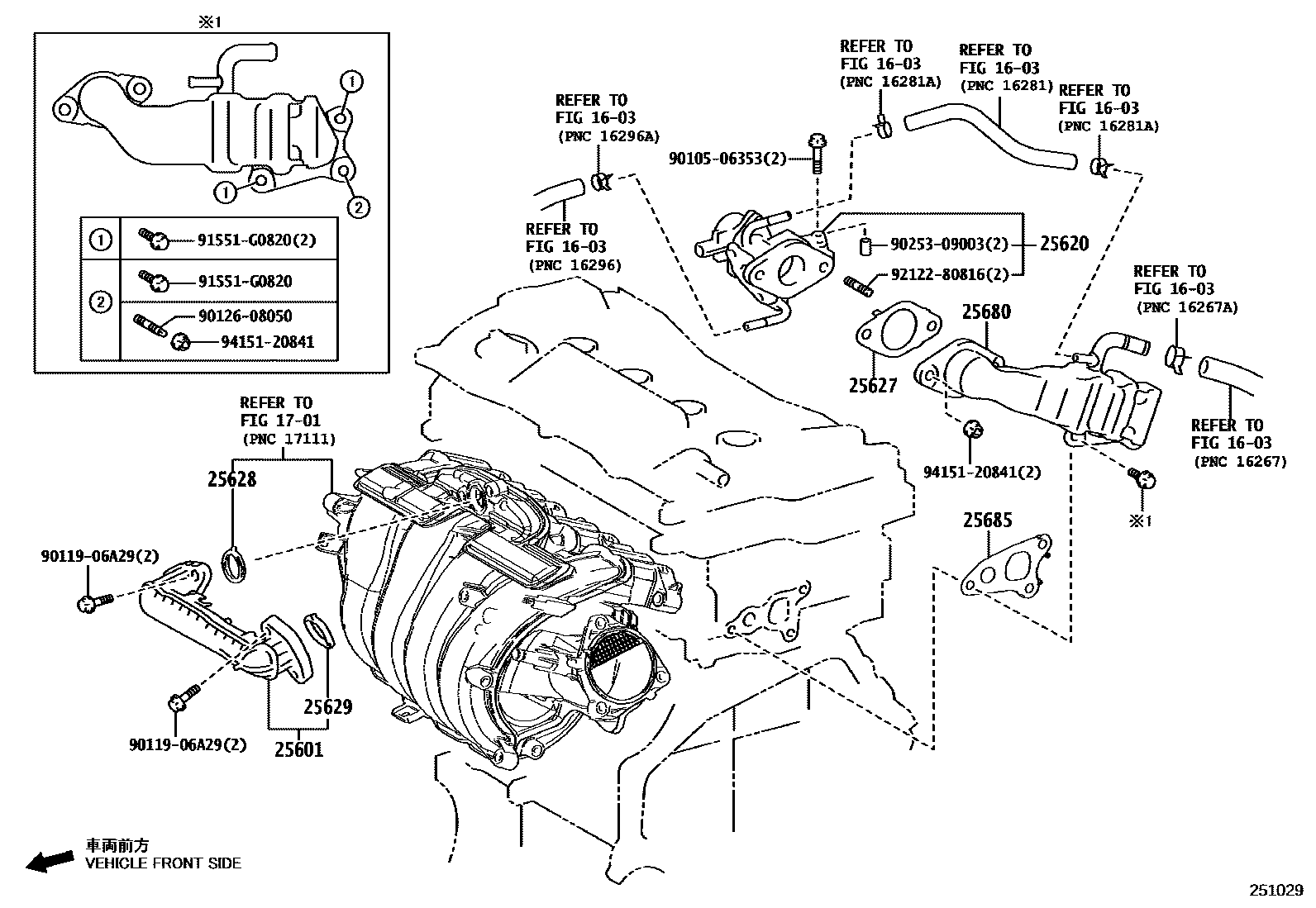

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25601PIPE SUB-ASSY, EGR, NO.1
25620VALVE ASSY, EGR
UKRAINE SPEC
EGYPT SPEC
IRAQ SPEC
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
25629GASKET, EGR VALVE ADAPTER
25680COOLER ASSY, EGR
UKRAINE SPEC
EGYPT SPEC
IRAQ SPEC
UKRAINE SPEC
IRAQ SPEC
25685GASKET, EGR COOLER, NO.1
9010506353
main90105-06353
9011906A29
main90119-06A29
9012608050
main90126-08050
9025309003
main90253-09003
91551G0820
main91551-G0820
9212280816
main92122-80816
9415120841
main94151-20841
16 parts on this diagram · 2 diagrams in section
