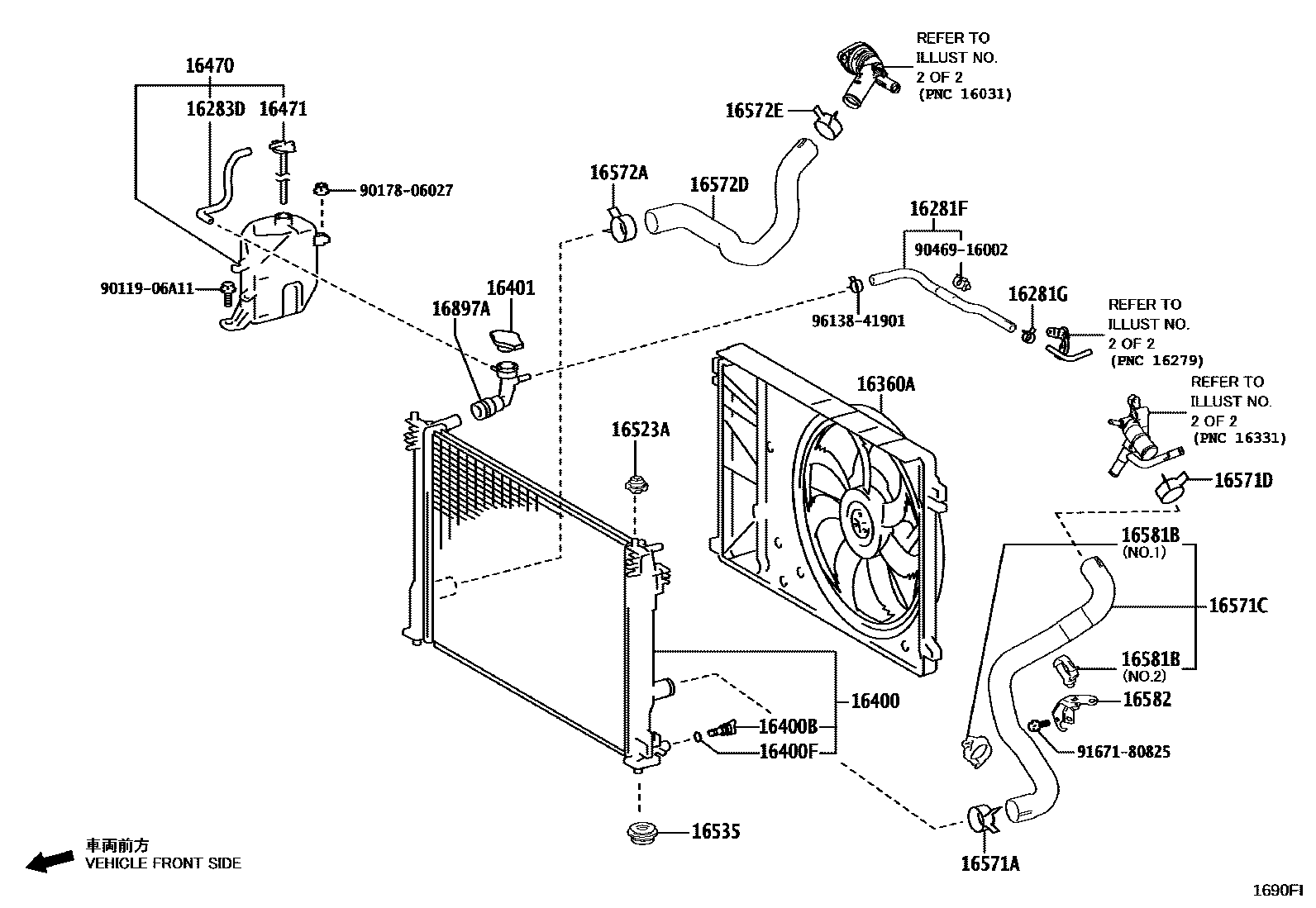

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1 0006 1

16281HOSE, WATER BY-PASS, NO.4

main16281-24030iM20..MXVA80202406

main99555-10200iA25..AXVA80,AXVH80202406

16281FHOSE, WATER BY-PASS, NO.5

main16282-25010iA25..AXVA80202406

main16282-25021iA25..AXVH80202406

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main96138-41701iM20..MXVA80202406

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20..MXVA80202406

main16283-25010iA25..AXVA80..G..EUR202406

UKRAINE SPEC

main16283-25020iA25..AXVH80..LHD..EUR202406

MOLDOVA SPEC

16283DHOSE, WATER BY-PASS, NO.6

main16283-25032iM20..MXVA80202406

16360AFAN ASSY, W/MOTOR

main16360-25010iA25..AXVA80..EUR202406

main16360-31510iA25..AXVH80..GCC202406

main16360-37190iA25..AXVA80..GCC;A25..AXVH80..ARL,EUR,TAIW202406

16400RADIATOR ASSY

main16400-25130iA25..AXVA80202406

main16400-25141iA25..AXVH80..ARL,EUR,TAIW202406

main16400-25180iA25..AXVH80..GCC202406

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iA25..AXVA80202406

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iA25..AXVA80202406

16401CAP SUB-ASSY, RADIATOR

main16401-36030iM20..MXVA80202406

16470TANK ASSY, RADIATOR RESERVE

main16470-25042iM20..MXVA80202406

16471CAP SUB-ASSY, RESERVE TANK

main16405-25010iM20..MXVA80202406

16523ACUSHION, RADIATOR SUPPORT

main16523-25010×2iM20..MXVA80202406

16535SUPPORT, RADIATOR, LOWER

main16535-20010×2iA25..AXVH80202406

main16535-20030×2iA25..AXVA80202406

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25..AXVA80,AXVH80202406

16571CHOSE, RADIATOR, NO.1

main16571-25020iA25..AXVA80202406

main16571-25031iA25..AXVH80202406

main16571-25130iM20..MXVA80202406

main16571-25040iA25..AXVH80..LHD..G..EUR202406

KOREA SPEC

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2iM20..MXVA80202406

main90466-43002iA25..AXVA80,AXVH80202406

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AXVA80,AXVH80202406

16572DHOSE, RADIATOR, NO.2

main16572-25010iA25..AXVA80202406

main16572-25020iA25..AXVH80202406-202407

main16572-25021iA25..AXVH80202407

main16572-25070iM20..MXVA80202406

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iM20..MXVA80202406

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-25010iM20..MXVA80202406

KOREA SPEC

main16581-25030iA25..AXVA80202406

NO.2:REFER ILLUST.

main16581-25110iA25..AXVH80202406

NO.2:REFER ILLUST.

16582BRACKET, RADIATOR, NO.1

main16582-25010iA25..AXVA80202406

16897ANECK, FILLER

main16897-25011iA25..AXVA80202406

main16897-25031iA25..AXVH80202406

9011906A11

main90119-06A11

9017806027

main90178-06027

9046916002

main90469-16002

9167180825

main91671-80825

9613841901

main96138-41901

28 parts on this diagram · 6 diagrams in section
