TIRE PRESSURE WARNING SYSTEM

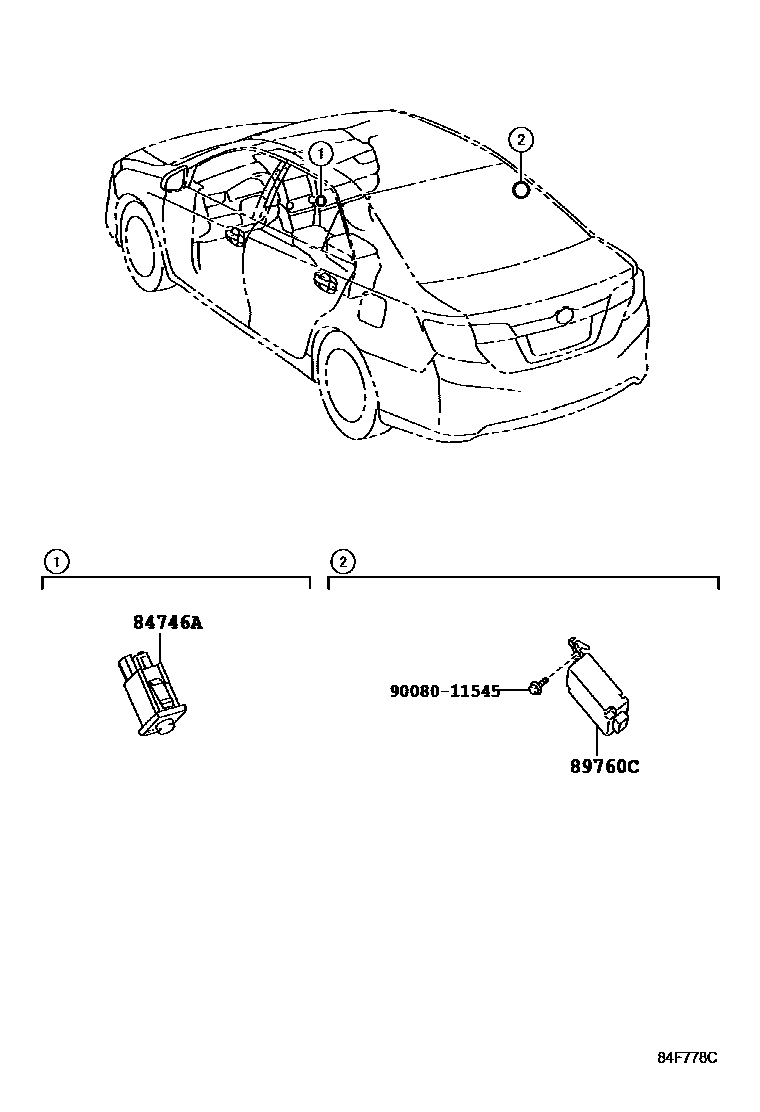

Parts diagram

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-AE010i201606

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-06090i201606

9008011545

main90080-11545

3 parts on this diagram · 1 diagram in section
