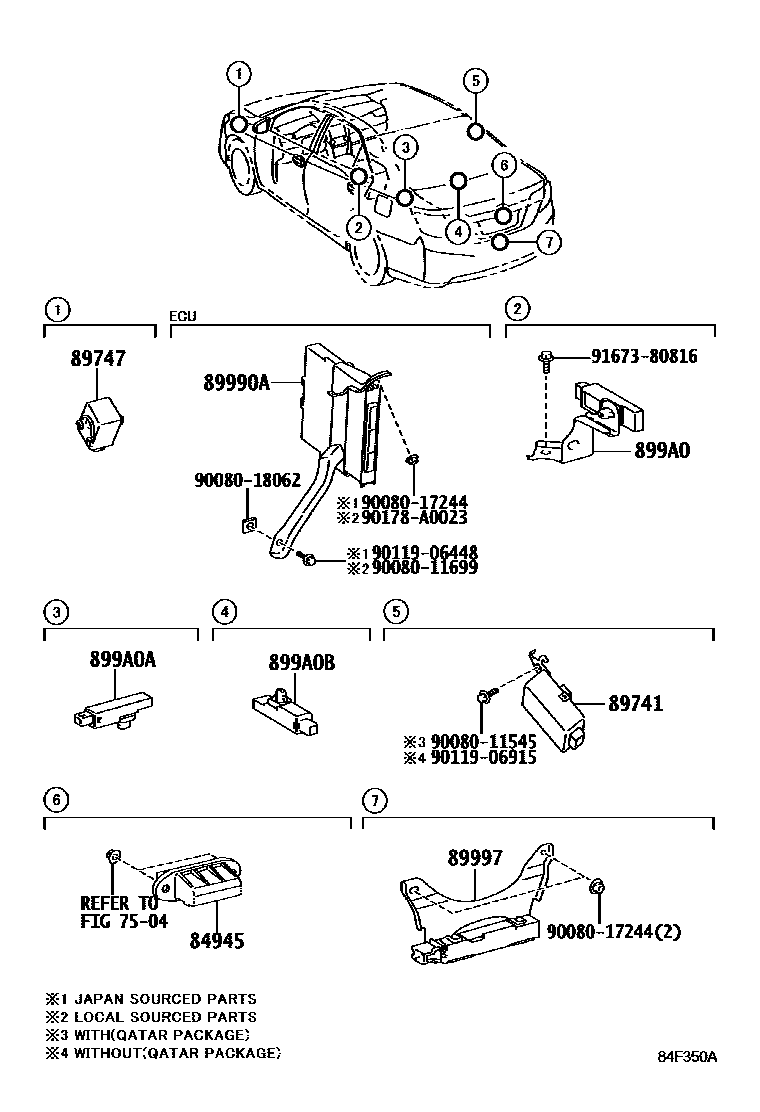

WIRELESS DOOR LOCK

7504

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-06010iASV50201504

89741RECEIVER, DOOR CONTROL

main89740-33260iASV50201504

sub89740-33262

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iASV50201504

(L)

main89747-30040iASV50201504

(J)

89990ACOMPUTER ASSY, SMART KEY

main89990-06112iASV50201504

89997ANTENNA, ELECTRICAL KEY

main89997-06050iASV50201504

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06010iASV50201504

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-06030iASV50201504

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-06030iASV50201504

9008011545

main90080-11545

9008011699

main90080-11699

9008017244

main90080-17244

9008018062

main90080-18062

9011906448

main90119-06448

9011906915

main90119-06915

90178A0023

main90178-A0023

9167380816

main91673-80816

17 parts on this diagram · 1 diagram in section
