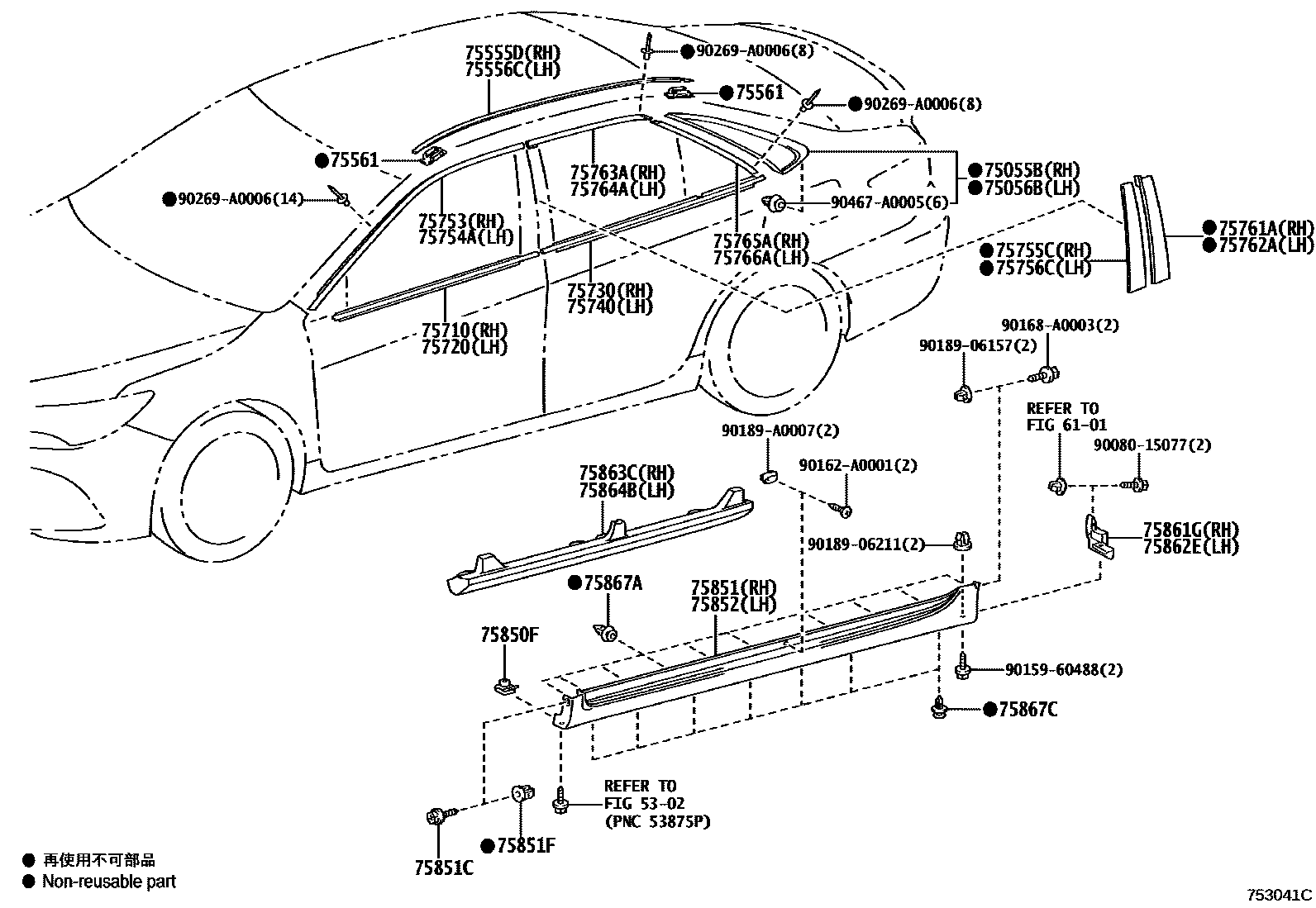

SIDE MOULDING

5302

6101

75055BGARNISH SUB-ASSY, REAR PILLAR, OUTER RH

main75055-06010iASV50201504

75056BGARNISH SUB-ASSY, REAR PILLAR, OUTER LH

main75056-06010iASV50201504

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-06080iASV50201504-201706

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-06080iASV50201504

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iASV50201504

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-06180iASV50201504

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-06180iASV50201504

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-06160iASV50201504

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-06160iASV50201504

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-06080iASV50201504

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-06080iASV50201504

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-06140iASV50201504

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-06140iASV50201504

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-06140iASV50201504-201706

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-06140iASV50201504-201706

NO PAINT REQ.

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-06140iASV50201504

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-06140iASV50201504

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-06030iASV50201504

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-06030iASV50201504

75850FNUT, NO.1

main90183-06019×2iASV50201504-201706

75851MOULDING, ROCKER PANEL, RH

main75851-06926iASV50201504

sub75851-06938

75851CSCREW(FOR BODY ROCKER PANEL MOULDING)

main90168-A0003×4iASV50201504-201706

75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)

main90189-06065×4iASV50201504-201706

75852MOULDING, ROCKER PANEL, LH

main75852-06927iASV50201504

sub75852-06938

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-06130iASV50201504

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-06140iASV50201504

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75863-06180iASV50201504

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75864-06180iASV50201504

75867ACLIP, ROCKER PANEL MOULDING

main75867-AA010×20iASV50201504

75867CCLIP, ROCKER PANEL MOULDING

main75867-06030×14iASV50201504

9008015077

main90080-15077

9015960488

main90159-60488

90162A0001

main90162-A0001

90168A0003

main90168-A0003

9018906157

main90189-06157

9018906211

main90189-06211

90189A0007

main90189-A0007

90269A0006

main90269-A0006

90467A0005

main90467-A0005

41 parts on this diagram · 1 diagram in section
