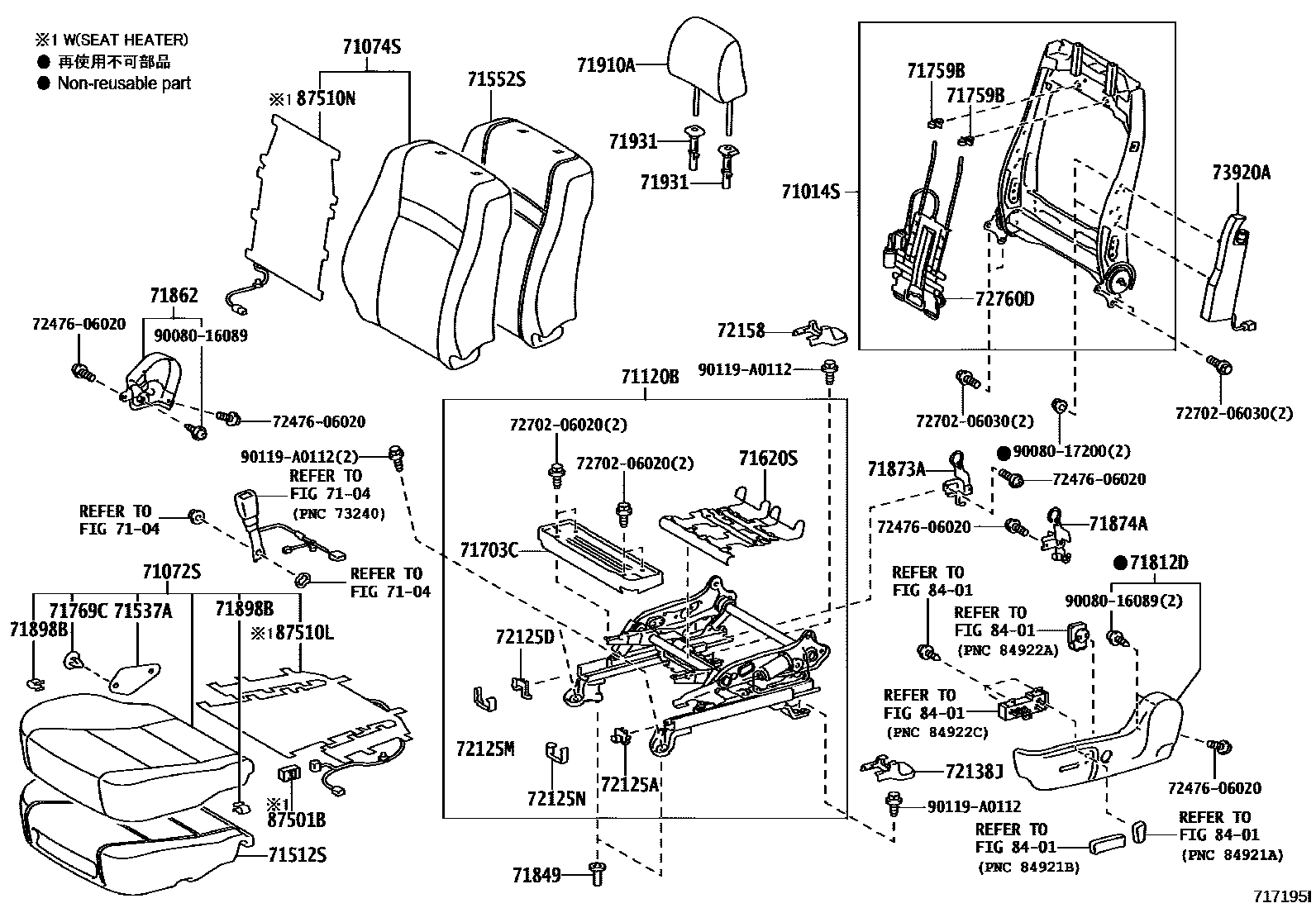

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1PASSENGER SEAT W(POWER SEAT)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71104-06020iASV50201504-201706

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-06C50-B1iASV50201504-201606

GRAY,TRIM1#

main71072-06C50-C1iASV50201504-201606

BLACK,TRIM2#

main71072-06T00-B0iASV50201606-201706

GRAY,TRIM1#

main71072-06T00-C0iASV50201606-201706

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-06E10-B1iASV50201504-201606

GRAY,TRIM1#

main71074-06E10-C1iASV50201504-201606

BLACK,TRIM2#

main71074-06W30-B0iASV50201606-201706

GRAY,TRIM1#

main71074-06W30-C0iASV50201606-201706

BLACK,TRIM2#

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-06170iASV50201504-201706

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-06361iASV50201504-201706

71537APROTECTOR, FRONT SEAT CUSHION

main71537-06190iASV50201504-201706

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-06280iASV50201504-201706

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06370iASV50201504-201706

71703CPANEL SUB-ASSY, FRONT SEAT CUSHION

main71703-06010iASV50201504-201706

71759BHOOK, FRONT SEATBACK

main71759-06020iASV50201504-201706

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-60010-C0iASV50201504-201706

BLACK,TRIM1#,2#

sub71769-60010

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06200-C0iASV50201504-201706

BLACK,TRIM1#,2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0T020iASV50201504-201706

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06140-C0iASV50201504-201706

BLACK,TRIM1#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06300-C0iASV50201504-201706

BLACK

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71806-06010-C0iASV50201504-201706

BLACK

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06330-C0iASV50201504-201706

BLACK

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71806-06020-C0iASV50201504-201706

BLACK

71898BHOOK, FRONT SEAT COVER

main71898-07050iASV50201607-201706

71910AHEADREST ASSY, FRONT SEAT

main71910-06610iASV50201606-201611

main71910-06610-B2iASV50201504-201606

GRAY,TRIM1#

sub71910-06610

main71910-06610-C1iASV50201504-201606

BLACK,TRIM2#

sub71910-06610

main71910-06611-B1iASV50201611-201706

GRAY,TRIM1#

sub71910-06611

main71910-06611-C1iASV50201611-201706

BLACK,TRIM2#

sub71910-06611

71931SUPPORT, FRONT SEAT HEADREST

main71930-06050-C0iASV50201504-201706

W(LOCK),BLACK,TRIM1#,2#,(L)

main71930-47020-C0iASV50201504-201706

W(LOCK),BLACK,TRIM1#,2#,(J)

sub71930-47020

main71931-06040-C0iASV50201504-201706

W/O(LOCK),BLACK,TRIM1#,2#,(L)

main71931-47020-C0iASV50201504-201706

W/O(LOCK),BLACK,TRIM1#,2#,(J)

sub71931-47020

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-06010iASV50201504-201706

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-06020iASV50201504-201706

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-06030iASV50201504-201706

72125NCOVER, SEAT TRACK, UPPER NO.4

main72125-06040iASV50201504-201706

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-06100-C1iASV50201504-201706

BLACK,TRIM1#,2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-06110-C1iASV50201504-201706

BLACK,TRIM1#,2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-06060iASV50201504-201706

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-06170iASV50201504-201706

8401

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

87510NHEATER ASSY, FRONT SEATBACK, LH

7247606020SCREW, HORIZONTAL JACK, INNER

main72476-06020

7270206020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06020

7270206030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06030

9008016089

main90080-16089

9008017200

main90080-17200

90119A0112

main90119-A0112

40 parts on this diagram · 3 diagrams in section
