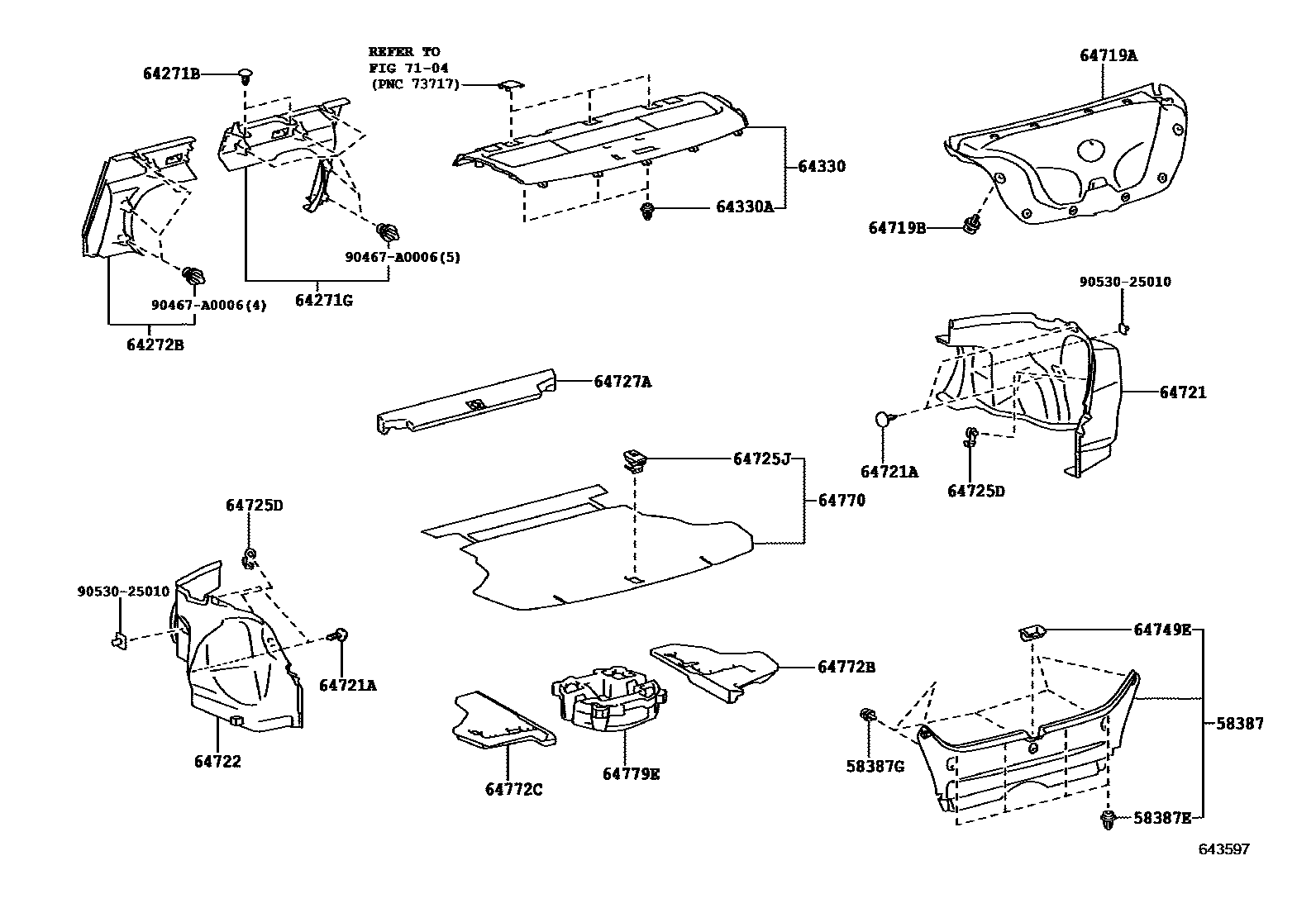

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-06141iASV50201504

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-A0006iASV50201504

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-A0037iASV50201504

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-A0002-C0iASV50201504-201706

BLACK

sub90467-A0002

64271GBOARD, ROOM PARTITION, RH

main64271-06040-C0iASV50201504-201706

BLACK,TRIM1#,2#

sub64271-06040

64272BBOARD, ROOM PARTITION, LH

main64272-06030-C0iASV50201504-201706

BLACK,TRIM1#,2#

sub64272-06030

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06640-C3iASV50201504-201706

BLACK,TRIM1#,2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-A0006iASV50201504

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06260-C0iASV50201504-201706

BLACK,TRIM1#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-A0037iASV50201504

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06330-C0iASV50201504-201706

BLACK,TRIM1#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-A0002-C0iASV50201504-201706

BLACK

sub90467-A0002

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06340-C0iASV50201504-201706

BLACK,TRIM1#,2#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-0T010-C0iASV50201504-201706

BLACK,TRIM1#,2#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06080iASV50201504

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-06050iASV50201504

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-06010iASV50201504

64770COVER ASSY, SPARE WHEEL

main64770-06320-C0iASV50201504-201706

BLACK,TRIM1#,2#

64772BPAD, SPARE WHEEL COVER

main64772-06150iASV50201504

64772CPAD, SPARE WHEEL COVER

main64773-06130iASV50201504

64779ETRAY, SPARE WHEEL COVER

main64779-06050iASV50201504

7104

90467A0006

main90467-A0006

9053025010

main90530-25010

24 parts on this diagram · 1 diagram in section
