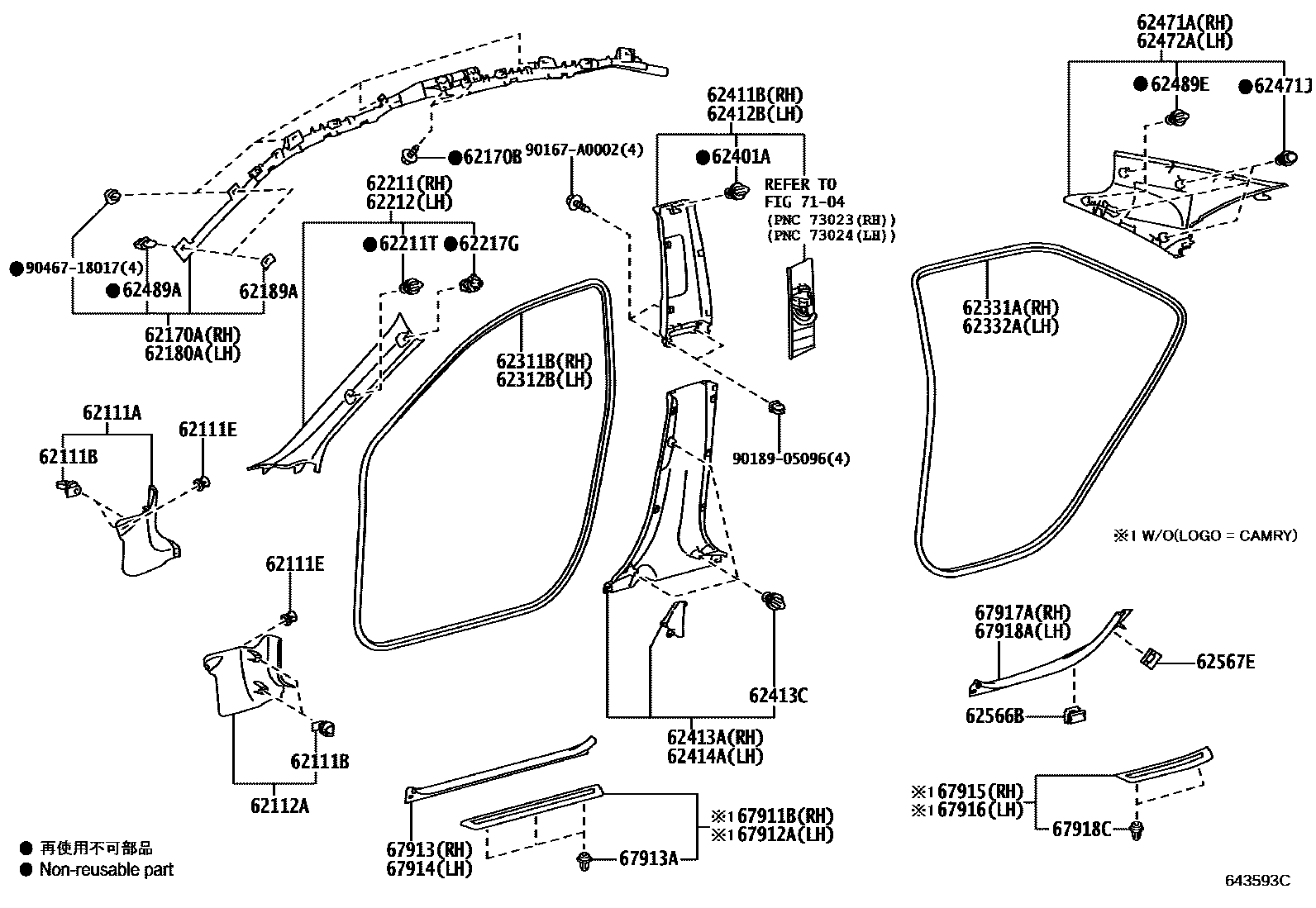

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM1#,2#
62111BCLIP(FOR COWL SIDE TRIM)
62111ERETAINER, COWL SIDE TRIM
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM1#,2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM1#,2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM1#,2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
GRAY,TRIM1#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
GRAY,TRIM1#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM1#,2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM1#,2#
62489ACLIP, ROOF SIDE INNER GARNISH
62489ECLIP, ROOF SIDE INNER GARNISH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
90167A0002
9018905096
9046718017
43 parts on this diagram · 1 diagram in section
