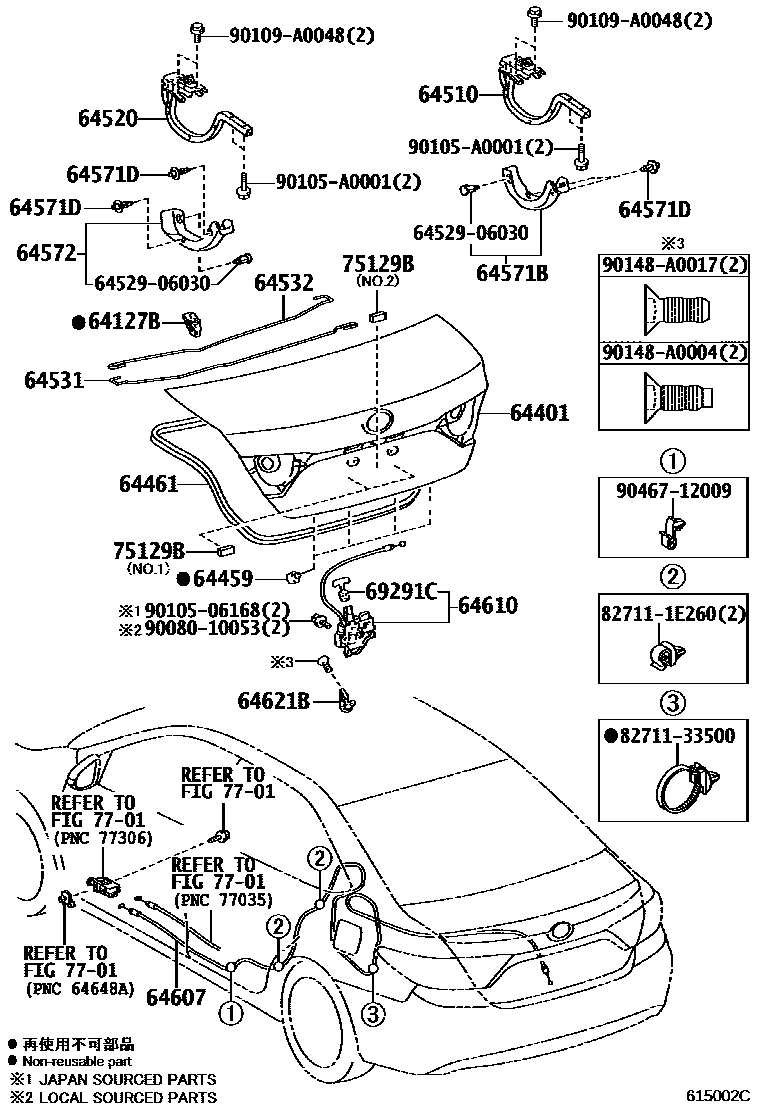

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-06110iASV50201504

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06A70supersedes 64401-06A80iASV50201504

REAR SPOILER-WITH

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90084-54011×4iASV50201504

(L)

main90541-09116×4iASV50201504

(J)

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06180iASV50201504

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06220iASV50201504

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06030iASV50201504

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-06370supersedes 64531-06360iASV50201504

REAR SPOILER-WITH

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-06380supersedes 64532-06370iASV50201504

REAR SPOILER-WITH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main82817-06150iASV50201504

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-A0016-C0×4iASV50201504-201706

BLACK

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main82818-06020iASV50201504

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-06190iASV50201504-201702

main64607-06191iASV50201703

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06041iASV50201504

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06030iASV50201504

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-33020iASV50201504

75129BCUSHION, REAR LICENCE PLATE

main75129-02020iASV50201504

NO.2

main75129-AC010×2iASV50201504

NO.1

7701

6452906030SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-06030

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8271133500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33500

9008010053

main90080-10053

9010506168

main90105-06168

90105A0001

main90105-A0001

90109A0048

main90109-A0048

90148A0004

main90148-A0004

90148A0017

main90148-A0017

9046712009

main90467-12009

27 parts on this diagram · 1 diagram in section
