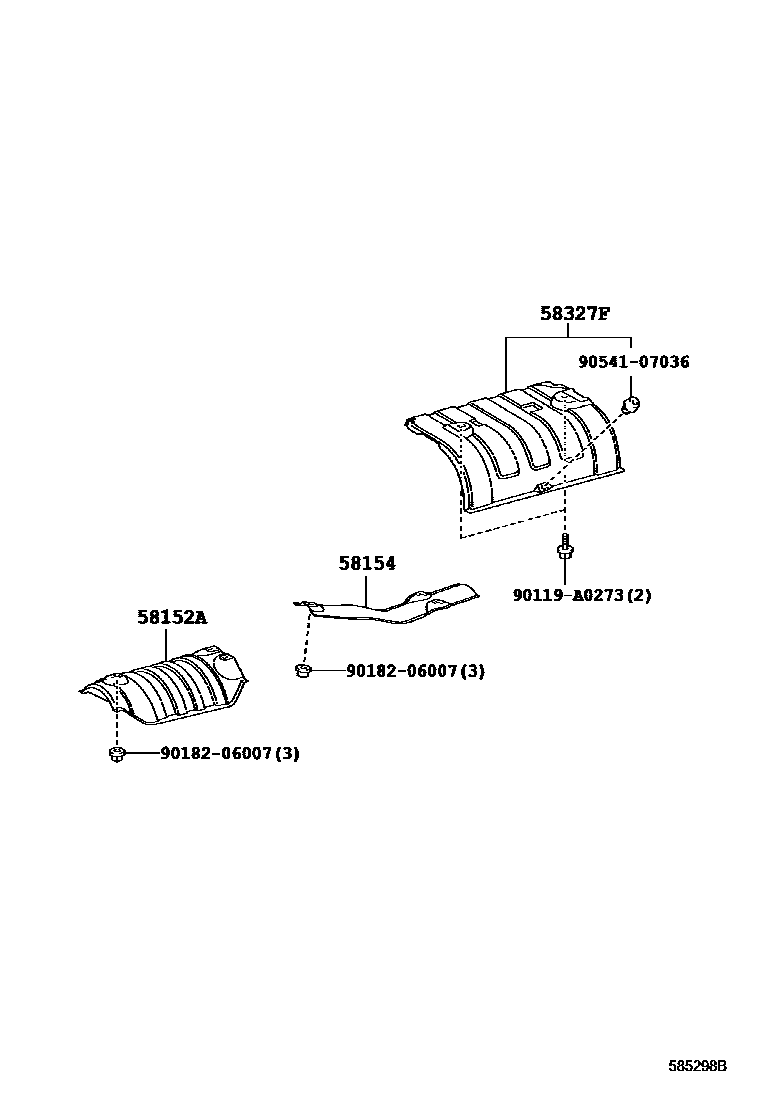

FLOOR INSULATOR

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-07011iASV50201504-201611

sub58152-07012

main58152-07012iASV50201612

58154INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER

main58154-06010iASV50201504

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58041-06010iASV50201611

main58327-06060iASV50201504-201611

90119A0273

main90119-A0273

9018206007

main90182-06007

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section
