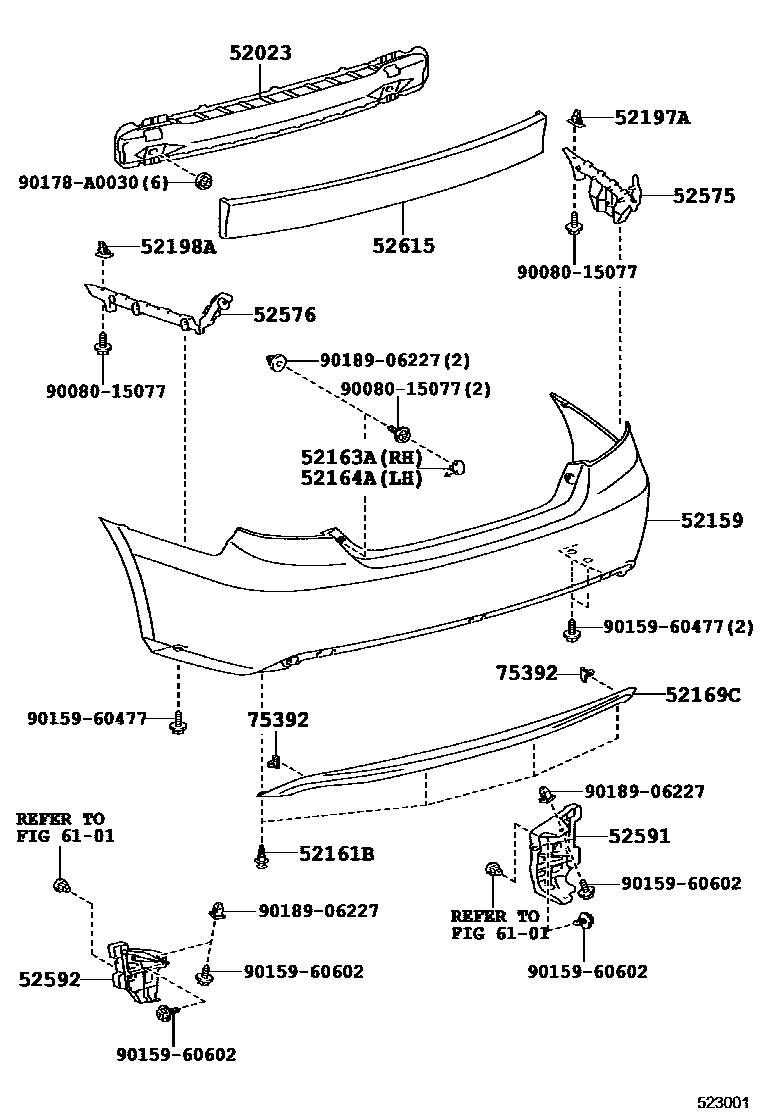

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
6101
75392RETAINER, OUTSIDE MOULDING
9008015077
main90080-15077
9015960477
main90159-60477
9015960602
main90159-60602
90178A0030
main90178-A0030
9018906227
main90189-06227
20 parts on this diagram · 1 diagram in section
