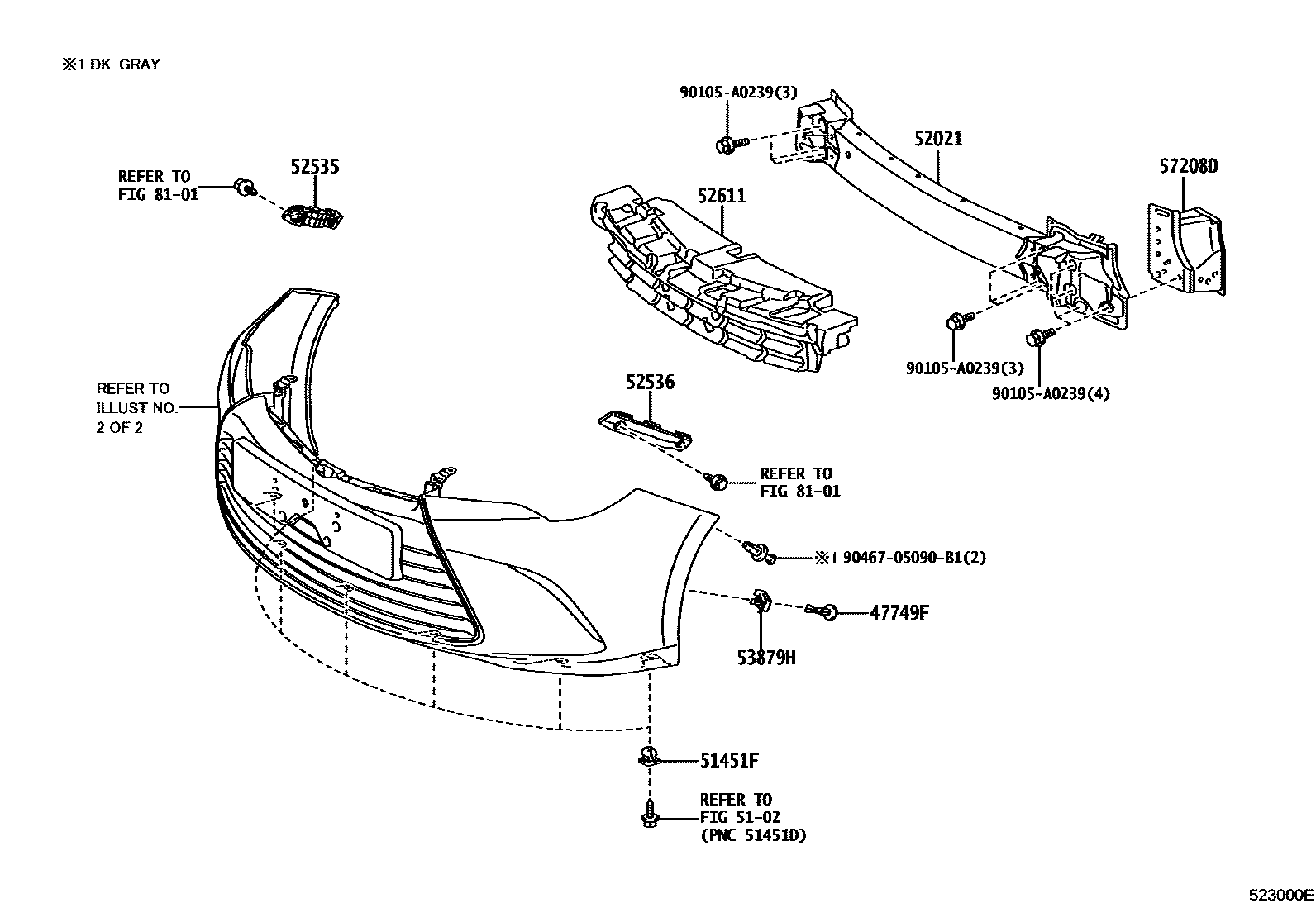

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-06010iASV50201504-201706

5102

51451FGROMMET, NO.1

main90189-06193iASV50201504-201704

main90189-06237iASV50201705-201706

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06130iASV50201504

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06190iASV50201504

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06190iASV50201504

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06380iASV50201504

53879HRETAINER, FRONT FENDER LINER

main53879-06100iASV50201504

57208DSPACER SUB-ASSY, FRONT BUMPER SUPPORT, NO.2

main57208-06010iASV50201504-201505

sub57208-06011

main57208-06011iASV50201505

8101

90105A0239

main90105-A0239

9046705090B1

main90467-05090B1

12 parts on this diagram · 2 diagrams in section
