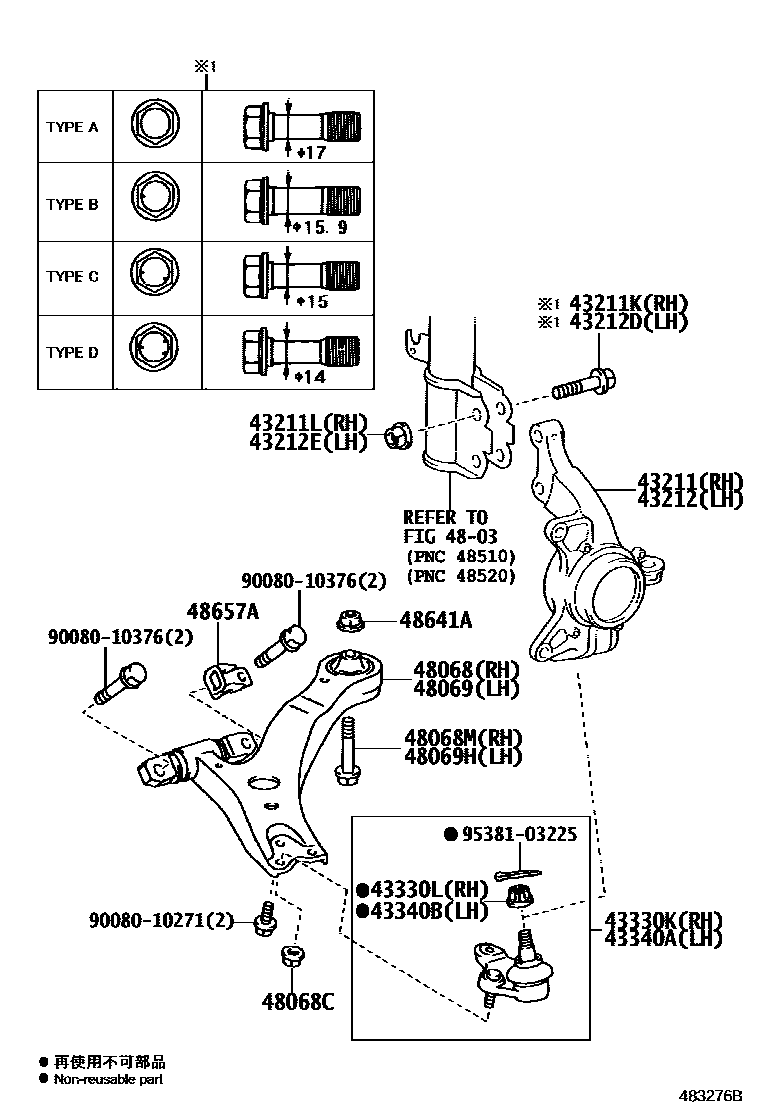

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-06240iASV50201504

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iASV50201504

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iASV50201504

OD=15,TYPE C:REFER ILLUST.

main90105-17015iASV50201504

OD=14,TYPE D:REFER ILLUST.

main90105-A0052iASV50201504

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-A0027iASV50201504

43212KNUCKLE, STEERING, LH

main43212-06240iASV50201504

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iASV50201504

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iASV50201504

OD=15,TYPE C:REFER ILLUST.

main90105-17015iASV50201504

OD=14,TYPE D:REFER ILLUST.

main90105-A0052iASV50201504

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-A0027iASV50201504

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09810iASV50201504

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90080-17214iASV50201504

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-09170iASV50201504

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90080-17214iASV50201504

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-07040iASV50201504

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-A0094iASV50201504

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-A0259iASV50201504

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-07040iASV50201504

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-A0259iASV50201504

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90080-17223iASV50201504

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06010iASV50201504

9008010271

main90080-10271

9008010376

main90080-10376

9538103225

main95381-03225

21 parts on this diagram · 1 diagram in section
