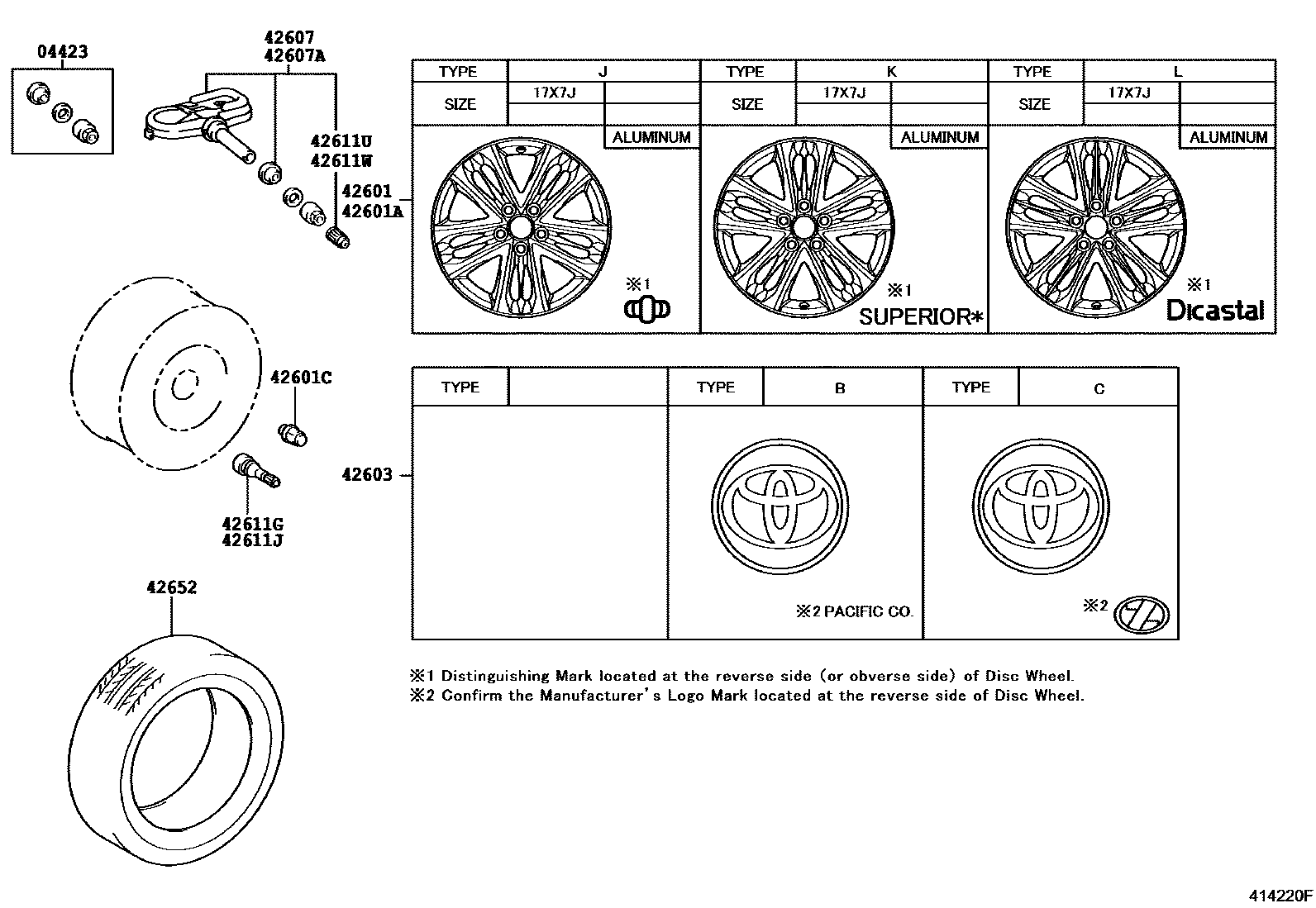

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iASV50201606

42601WHEEL, DISC

main42611-06B30iASV50201504

17X7J,#,TYPE J:REFER ILLUST.

main42611-06C60iASV50201504

17X7J,#,TYPE K:REFER ILLUST.

main42611-06C70iASV50201504

17X7J,#,TYPE L:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06B30iASV50201508

17X7J,#,TYPE J:REFER ILLUST.

main42611-06C60iASV50201508

17X7J,#,TYPE K:REFER ILLUST.

main42611-06C70iASV50201508

17X7J,#,TYPE L:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iASV50201504

TYPE B:REFER ILLUST.

sub90942-A1009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-06150iASV50201505

*ALU,TYPE C:REFER ILLUST.

main42603-06160iASV50201504

*ALU,*CR T/P B:REF.ILLUST

sub42603-06150

main42603-48140iASV50201504

*ALU,TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02021iASV50201606

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-02021iASV50201606

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006iASV50201504-201606

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iASV50201508-201606

42611UCAP, TIRE VALVE

main90942-A5002iASV50201606

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-A5002iASV50201606

42652TIRE

main42652-AA050iASV50201504-201510

P215/55R17 93V,*T/Y

12 parts on this diagram · 2 diagrams in section
