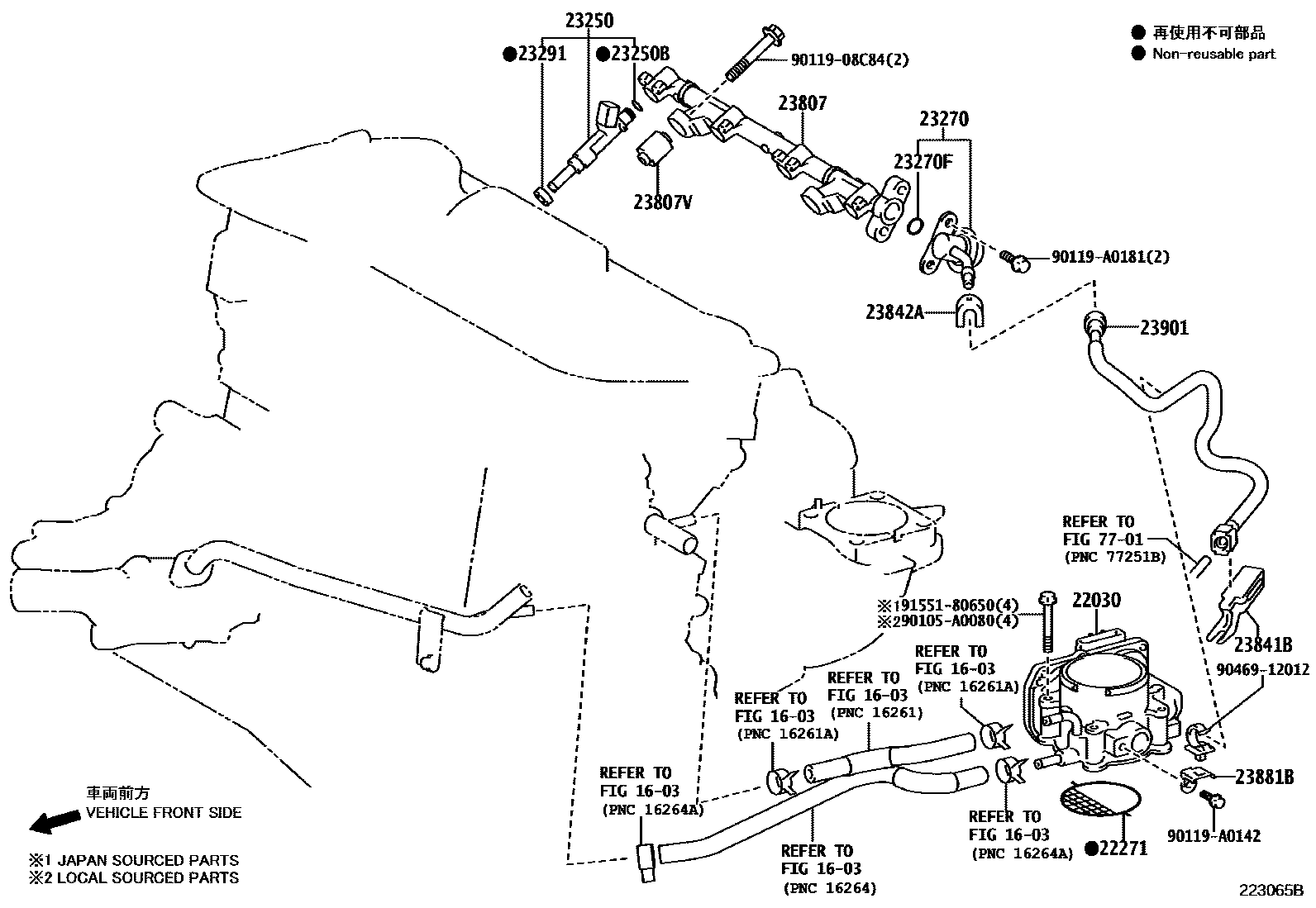

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V010i2ARFE..ASV50201504

22271GASKET, THROTTLE BODY

main22271-0V010i2ARFE..ASV50201504

23250INJECTOR ASSY, FUEL

main23209-09175i2ARFE..ASV50201504

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ARFE..ASV50201504

(J)

main90301-A0036i2ARFE..ASV50201504

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASV50201504

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV50201504

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020i2ARFE..ASV50201504

(L)

main23291-28020i2ARFE..ASV50201504

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-36040i2ARFE..ASV50201504

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-36010i2ARFE..ASV50201504

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0P070i2ARFE..ASV50201504

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0T030i2ARFE..ASV50201504

23881BBRACKET, FUEL HOSE

main23881-0V010i2ARFE..ASV50201504

23901TUBE SUB-ASSY, FUEL

main23901-0V060i2ARFE..ASV50201504

7701

90105A0080

main90105-A0080

9011908C84

main90119-08C84

90119A0142

main90119-A0142

90119A0181

main90119-A0181

9046912012

main90469-12012

9155180650

main91551-80650

21 parts on this diagram · 1 diagram in section
