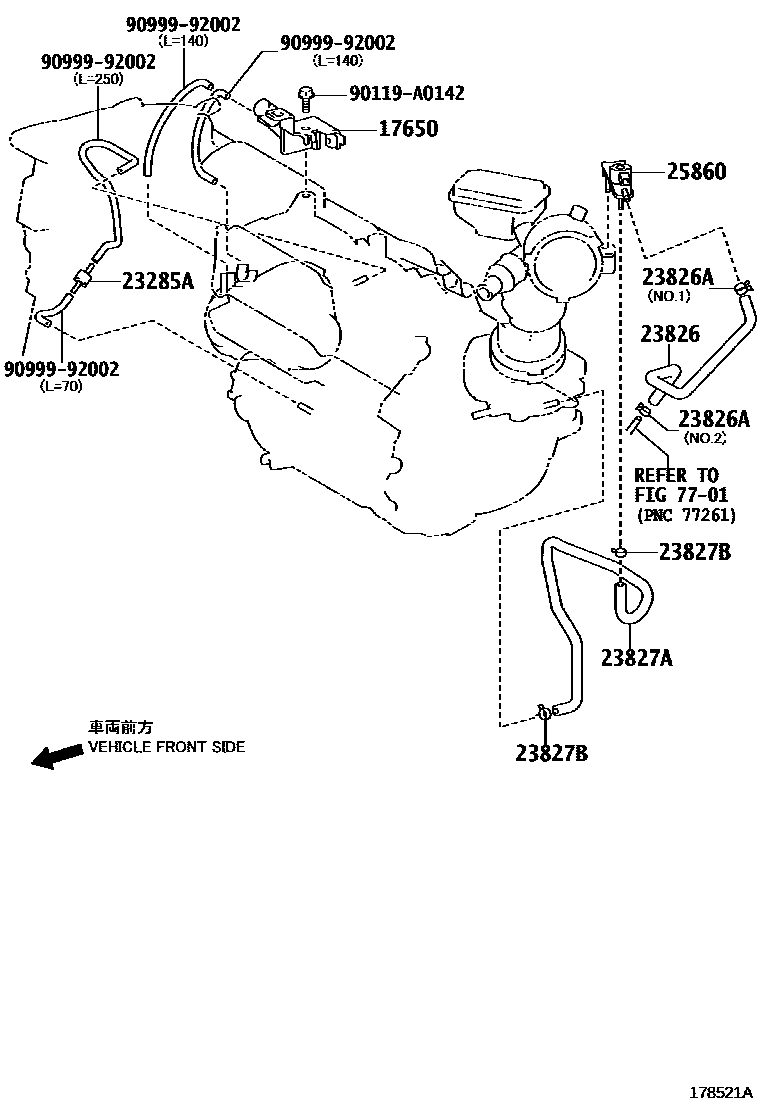

VACUUM PIPING

17650VALVE ASSY, VACUUM SWITCHING

main25860-0V050i2ARFE..ASV50201504

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASV50201504

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0V100i2ARFE..ASV50201504

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2ARFE..ASV50201504

NO.1

main90466-13005i2ARFE..ASV50201504

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0V050i2ARFE..ASV50201504

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005i2ARFE..ASV50201504

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V040i2ARFE..ASV50201504

7701

90119A0142

main90119-A0142

9099992002

main90999-92002

10 parts on this diagram · 1 diagram in section
