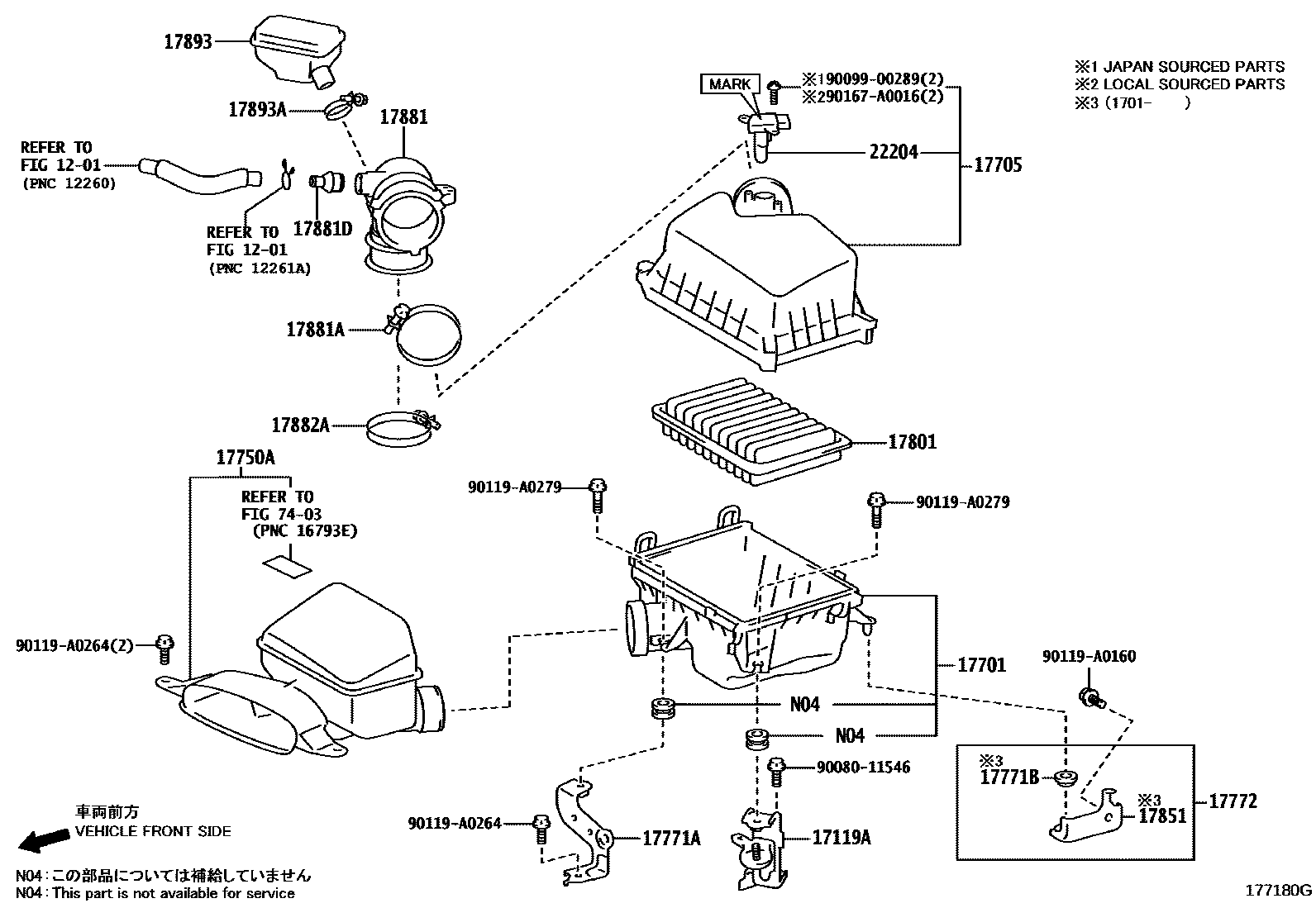

AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-0V020i2ARFE..ASV50201504

17701CASE SUB-ASSY, AIR CLEANER

main17701-0V020i2ARFE..ASV50201504

17705CAP SUB-ASSY, AIR CLEANER

main17705-0V020i2ARFE..ASV50201504

17750AINLET ASSY, AIR CLEANER

main17750-0V030i2ARFE..ASV50201504-201604

sub17750-0V031

main17750-0V031i2ARFE..ASV50201605

17771ABRACKET, AIR CLEANER

main17771-0V010i2ARFE..ASV50201504-201701

main17771-0V010i2ARFE..ASV50201701

(L)

main17771-36030i2ARFE..ASV50201701

(J)

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90480-18006i2ARFE..ASV50201701

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-0V010i2ARFE..ASV50201504

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H050i2ARFE..ASV50201504

(L)

main17801-28030i2ARFE..ASV50201504

(J)

17851BRACKET, AIR CLEANER SUPPORT

main17851-36020i2ARFE..ASV50201701

17881HOSE, AIR CLEANER, NO.1

main17881-0V070i2ARFE..ASV50201504

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2ARFE..ASV50201504

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V010i2ARFE..ASV50201504

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10850i2ARFE..ASV50201504

17893RESONATOR, INTAKE AIR

main17893-0V060i2ARFE..ASV50201504

17893ACLAMP, HOSE

main96111-10430i2ARFE..ASV50201504

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2ARFE..ASV50201504

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ARFE..ASV50201504

MARK 22204-0V020

main22204-28010i2ARFE..ASV50201504

MARK 22204-28010

7403

9008011546

main90080-11546

9009900289

main90099-00289

90119A0160

main90119-A0160

90119A0264

main90119-A0264

90119A0279

main90119-A0279

90167A0016

main90167-A0016

24 parts on this diagram · 1 diagram in section
