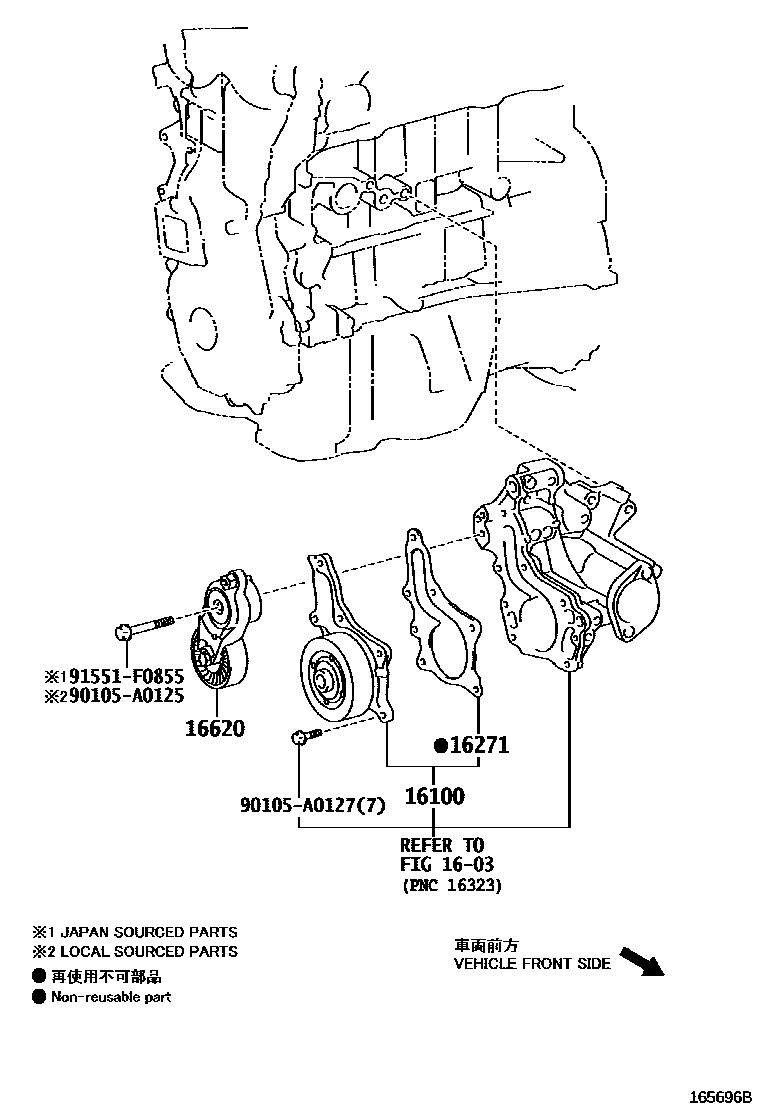

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-09515i2ARFE..ASV50201504

16271GASKET, WATER PUMP

main16271-36010i2ARFE..ASV50201504

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V022i2ARFE..ASV50201504

(L)

main16620-36011i2ARFE..ASV50201504-201509

(J)

sub16620-36012

main16620-36012i2ARFE..ASV50201510-201710

(J)

sub16620-36013

90105A0125

main90105-A0125

90105A0127

main90105-A0127

91551F0855

main91551-F0855

7 parts on this diagram · 1 diagram in section
